Product Attributes

- Brand Name Aipulnion
- Model Number WD150-48S12Q1
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Input Voltage 24V
- Output Current 12A
- Output Power 1 - 50W
- Output Type Single
- Output Voltage 12V
- Size 61x57.9x12.7mm
- Type DC/DC Converters
- Weight 78G
- Related Keywords DC DC Converter module

Description by Manufacturer

230V Ac To 12V Dc Converter

Aipulnion 150W Half Brick dcdc Converter 24V to 12V 12A Power Module

Product Description

100W 150W 200W DC/DC Converter Module
Transfer efficiency up to 90%
Wide input voltage range 36-72V
Switching Frequency:300KHz
Protections: short circuit, over-current, self recovery
Isolation voltage:1500Vdc
PCB Mounting
Operating Temperature: -40°C~+100°C
Metal Case, low output ripple
High Power Density

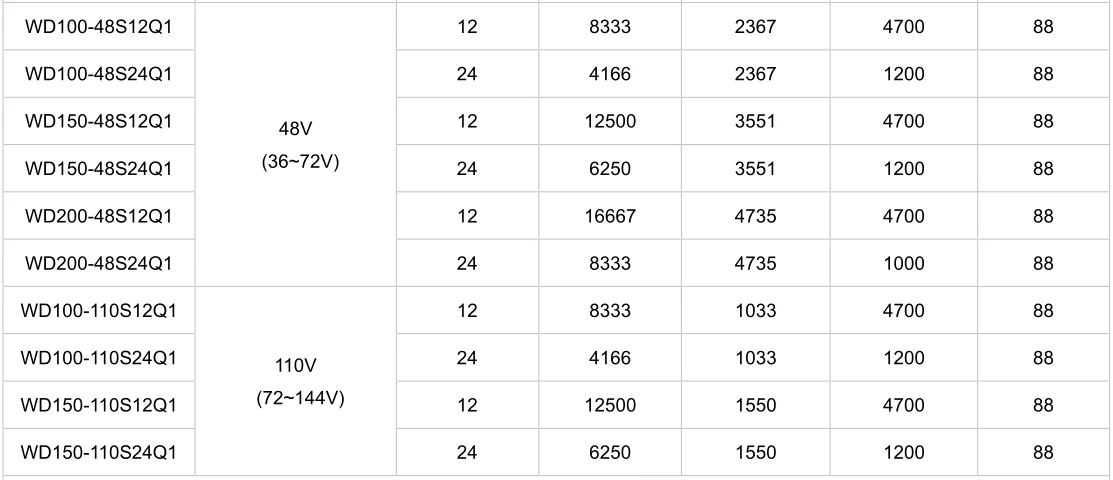

DC-DC CONVERTER		WD150-24S12Q1

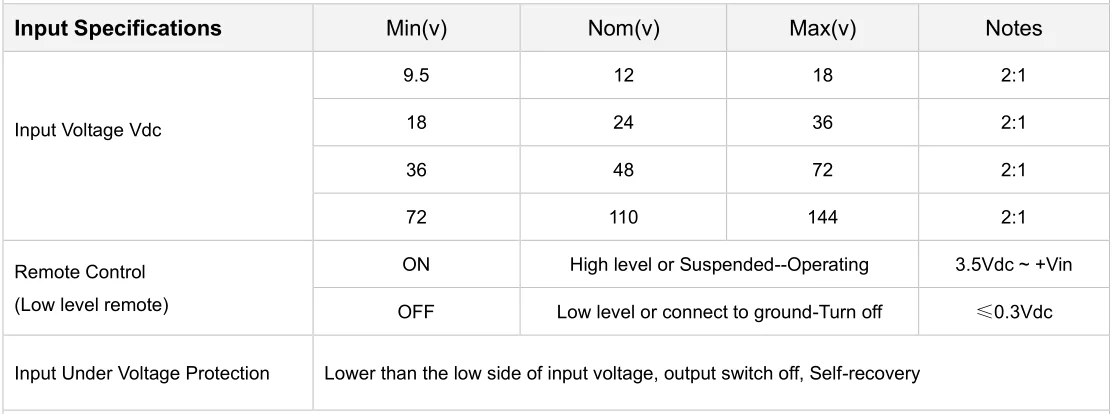

INPUT SPECIFICATIONS	VOLTAGE RANGE	24V(18-36V) DC
	INPUT UNDER VOLTAGE PROTECTION	switch off

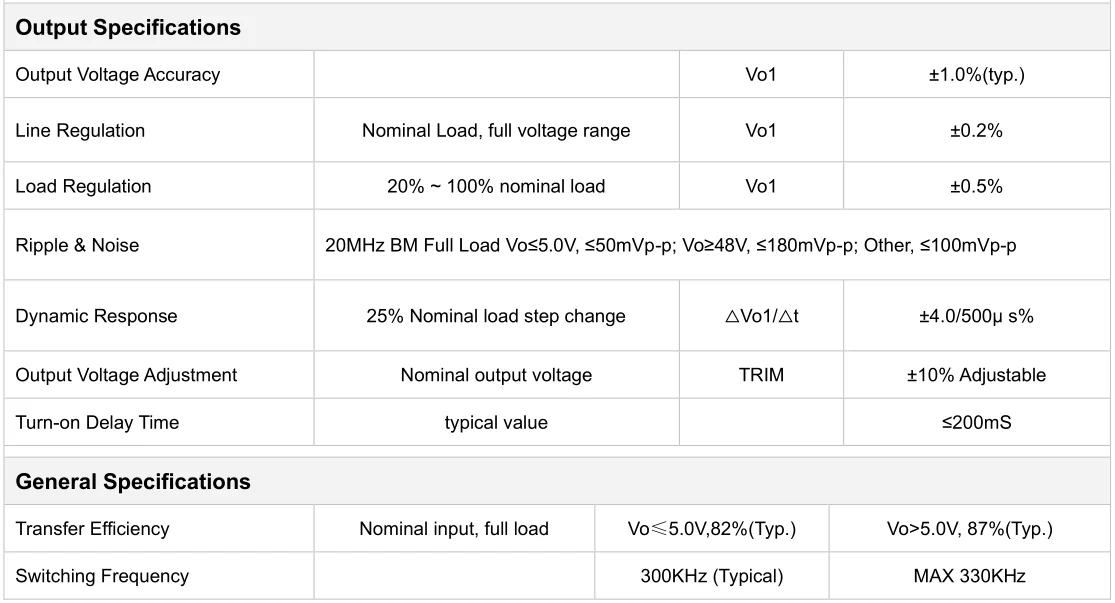

OUTPUT SPECIFICATIONS	DC VOLTAGE	12V DC
	OUTPUT CURRENT	0-12500mA
	RATED POWER	150W
	VOLTAGE ACCURACY	±1.0%
	LINE REGULATION	±0.2%;
	LOAD REGULATION	±0.5%;
	RIPPLE & NOISE	50mVp-p(typ.)
PROTECTION	SHORT CIRCUIT	Continuous, Self-recovery
GENERAL SPECIFICATIONS	SWITCHING FREQUENCY	300KHz

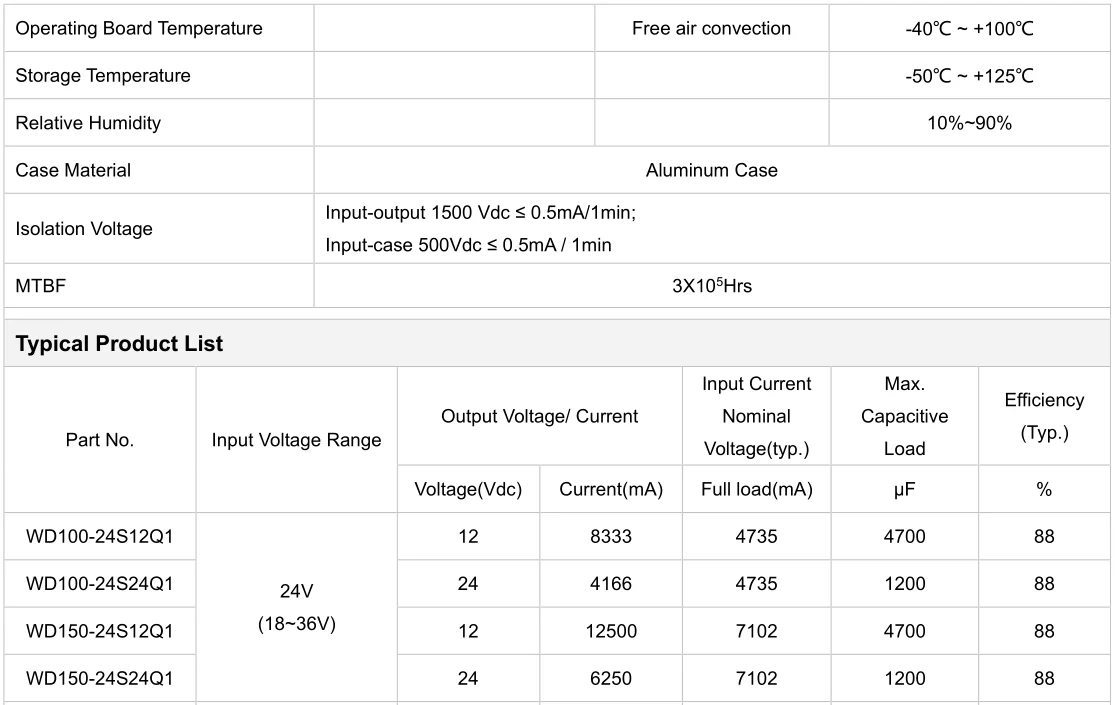

	OPERATING TEMP	-40℃~+100°C
	STORAGE TEMP	-50℃~+125°C
	RELATIVE HUMIDITY	10%~90%
	ISOLATION VOLTAGE	I/O: 1500Vdc
	MTBF	300,000Hrs
	SAFETY STANDARD	IEC60950,EN60950,UL60950

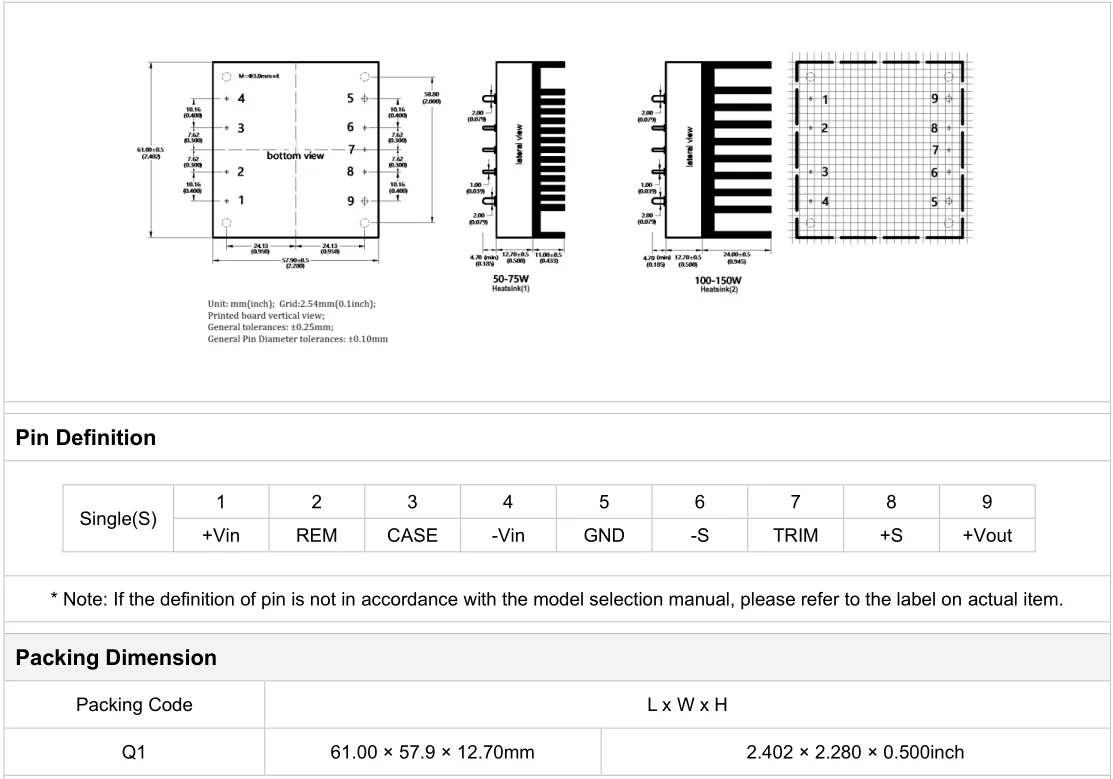

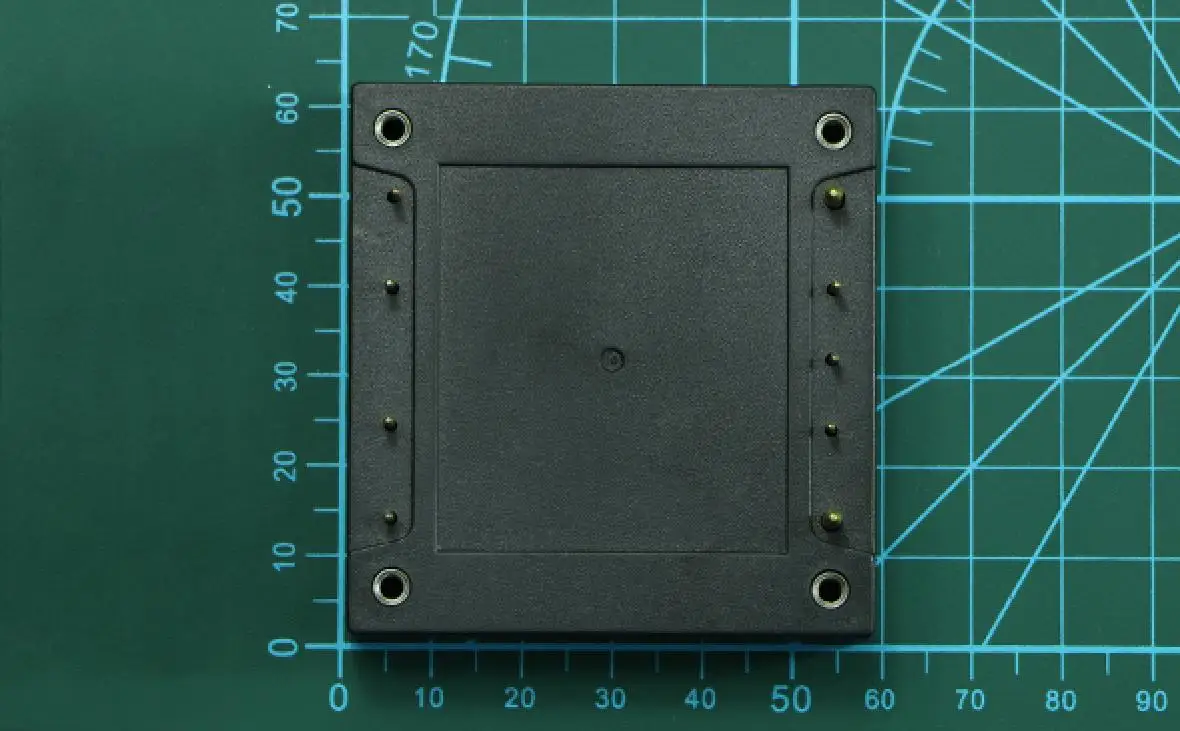

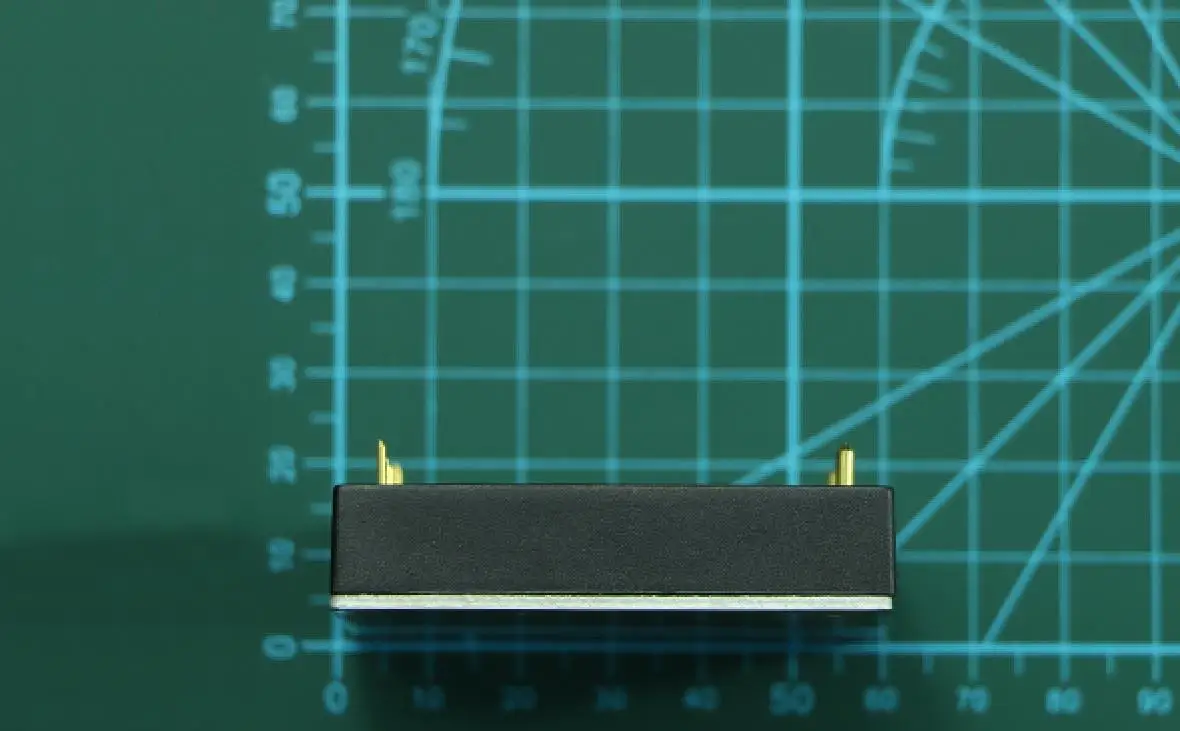

OTHERS	DIMENSION	61.0x57.9x12.7mm(LWH)
	PACKING	DIP,PCB Mounting

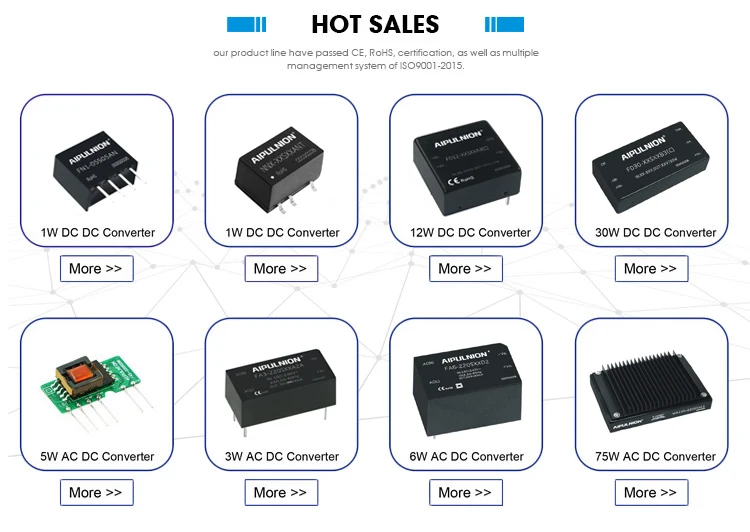

More Items

Application

230V Ac To 12V Dc Converter

Company Overview

230V Ac To 12V Dc Converter

FAQ

Q1: Are you manufacturer?

A: Yes, we are factory, with more than 200 employees, focus on AC/DC, DC/DC power converter since Y2004.

Q2: What is the MOQ?

A: As we are factory, we welcome small MOQ to start.

Q3: What about the lead time and shipment?

A: For in stock items, could be shipped out 2-3 working days.

For no stock items, bulk order could be shipped out within 10-25 days.

Q4: Do you offer guarantee for the products?

A: yes, our warranty for AC/DC converter is 3 years, DC/DC converter is 5 years.

Q5: What is your payment terms?

A: Bank transfer(TT), Paypal, Westen Union and Trade Assurance are acceptable.

Q6: I want to have my own design, is it avabilable?

A: Yes, we have professional R&D team, custom made service is abailable.

Price

Price US$ 50 / Piece
