Place of Origin: China (Mainland)
Brand Name: IPOWER
Model Number: IP-01
After-sales Service Provided: Engineers available to service machinery overseas
Processing materials:Brass,bronze,copper,stainless steel,steel,aluminum,titanium,iron
Machine distribution: Eight positions with seven axles
Machining speed: 12s per piece
Machine power: 15KW
Machine floor space: 2.3x2.3 sqm
Packaging Details: 1) packed by bubble pack, carton , sea worthy plywood packing , or as per customers'requirements
2) air freight or sea freight priority,
3) As per customized specifications
Delivery Detail: Shipped in 5 days after payment

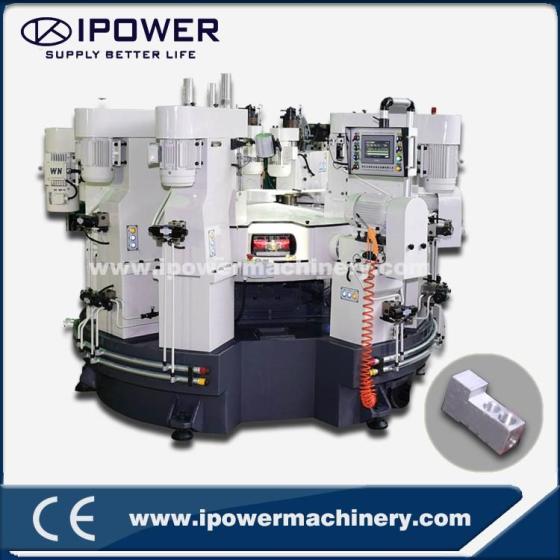

Product Introduction
Rotary transfer machines are ideal for even larger quantities and more complicated parts than those produced on multi-spindles. Rotary transfer machines are used to produce turned parts which require many operations such as cross drilling, cross tapping, milling, and extensive back-working. The machines normally are used to produce volumes in the millions annually. Some of the most popular rotary transfer machines worldwide include Hydromat, Eubama, Micron, and Buffoli. Our objective is providing our customers with unsurpassed quality, reliability, and productivity. We tailor all of our manufacturing solutions to customers' specific requirements.
Product Application
On a traditional rotary transfer machine, bar stock is sawed off and then the blank part indexes around the machine to many different stations ("units") where various operations are performed. For instance, one station will do drilling, another station will do recessing, another station will do milling. Traditionally the tools turn while the material remains stationary--this is the opposite of the process on a traditional lathe in which the material rotates and the tools do not. It's most common to find rotary transfer machines equipped with 6 to16 stations.
Main application: Automotive, construction, defense, aerospace, compressors.Bar turned parts for oil, water, gas, electronics: fittings, plumbing valves, connectors, nipples, unions, barbs, covers, rings, screws, caps, inserts, couplings, cartridges, etc. Hydraulic and pneumatic components (heating, ventilation, air conditioning, fire prevention/fighting, anti-pollution, etc.) Components for gas, appliances, compressors, pumps, and so on.
For example material, brass, bronze, copper, stainless steel, steel,aluminum, titanium, plastic, iron, casting iron, etc.
For example product, LPG Cylinda Valve, ball valve, plug valve, steam valve, stop valve, gas valve, etc.
This model is specially designed for brass ball valve processing after forging. It is very suitable for high volume production. The processing speed is very fast as one machine has many stations, and it comes out with a complete finished products, meanwhile, only one operator is enough.
SPECIFICATIONS
Machining Material: Aluminum
Machine Distribution: Eight positions with seven axles
Machining Speed: ≈12s per piece
Machine Power: ≈15KW
Machine Floor Space: 2.3x2.3 m2
Main Features
1) PLC Programming is adopted on the machine;
2) Using high precision rotating table;
3) The power unit is using hydraulic control feeding,the speed can be adjusted;
4) The fuel feeding pressures of power units and fixtures can be adjusted separately;
5) The tapping power unit is using variable frequency motor;
6) Easy to operate and convenient to maintain.
Detailed Images
Machine Station: Horizontal rough machining.
Power: 0.75KW
Machining speed: 2800r/min
Machine Station: Downward rough machining.
Power: 0.75KW
Machining speed: 2800r/min
Machine Station: Downward finish machining.
Power: 0.75KW
Machining speed: 2800r/min
Machine Station: Downward rough machining.
Power: 0.75KW
Machining speed: 2800r/min
Machine Station: Horizontal finish machining.
Power: 0.75KW
Machining speed: 2800r/min
Machine Station: Downward finish machining.
Power: 0.75KW
Machining speed: 2800r/min
Machine Station: Downward tapping.
Power: 2.2KW
Machining speed: 800r/min
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
Q1:How to guarantee the Quality of Rotrary transfer machine?
A1:We are ISO 9001-2008 certified company. we have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.
Q2:What's the Advantage of iPOWER Rotrary transfer machine?
A2:Our advantage :
1. The technology is imported from Germany and we have experienced engineers who have been worked in this field for more than 20 years, and some new engineers who has production experiences, know-how the machine working in pratice.
2. High precision,most competitive prices, fast delivery.
3. With good company culture, our employees are responsible-oriented, friendly-oriented,and diligent-oriented. our machines are featured by strict tolerance, smooth finish and long-life performance.
Q3:what are the machining equipments?
A3:Our machining equipments include milling machines, turning machines, stamping machines, hobbing machines, automatic lathe machines, tapping machines, grinding machines, screw machines, cutting machines and so on.
Q4: What shipping ways you use?
A4:Generally speaking, we will ship them by sea. This way can save our customers a lot of freight fee.
Q5:What materials can you handle?
A5:Brass, bronze, copper, stainless steel, steel,aluminum, titanium, plastic, iron, casting iron for LPG Cylinda Valve, ball valve, plug valve, steam valve, stop valve, gas valve, etc.
