Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Tricanter Centrifuge, Separation Equipment

Description by Manufacturer

Essential details

Place of Origin:: China

Type:: Centrifuge, Dehydrator

Product Type:: Separation equipment

Condition:: New

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: 1 Year

Core Components:: Bearing, Gearbox, Motor

Brand Name:: Kingreat

Voltage:: 380 440 440 220 110V...(optional)

Power:: 22 / 7.5 kw

Weight:: 850

Dimension(L*W*H):: Depends on the model

Warranty:: 1 Year

Key Selling Points:: Long Service Life

Applicable Industries:: Manufacturing Plant, Farms

Application:: Solid-liquid separation machine

Sanitary degree:: GMP

MOC:: SS321/316L

Motor:: Two motors

Discharge type:: Horizontal sedimentation centrifuge

Capacity:: 0.5-120 cubic meters/h

Electrical control cabinet:: With PLC+frequency conversion

Function:: Dewatering,separation,filtration

Product Description

LW Sedimentation Centrifuge is a horizontal,continuously working and continuously spiral discharging sedimentation centrifuge.It is used in a variety or industries for separating all kinds of solid liquid suspension,defecating liquid phase with graded grains,and dehydrating sludge such as： polyoxyethylene,sulfurous acid tansuanbei,strontium sulfate,lidefen,titanium pigment,ore porcelain, clay, kaoline, diatomite ,amylum,soyabean protein earthnut protein, syrup, beverage, vegetable oil, citric acid scavenge oil purification,cleansing water purification,lees,tallow,blood powder,sludge from power plants,sludge from printing and dyeing, sludge from paper making， sludge from desulfurizing natural gas,calcium carbide sludge,activated sludge ammonia sludge,sludge from washing cars,alum sludge,drilling mud,coal flotation waste,cryolite flotation liquid.

Working Principle
The machine starts and speeds up automatically.
When the proper working condition are met and the revolving drum reaches the feeding speed,
the feeding valve opens and allows suspension which will be separated to enter into the product compartment of the spiral feeder through the feeding pipe.
After the preliminary speed-up,the suspension passes the outlet of compartment and into the drum.Because of centrifugal force, the suspension in the drum is quickly divided into two phases;the heavier solid phase deposits to the inner wall of the drum and driven by the differential gear which results in the non-cynchronous movement between the spiral feeder and the drum,the solid phase will be transferred into the small end for further dehydration and finally discharged through solid phase outlet.
The separated liquid flows out though the big end or will be driven out by centrifugal pump.

Technical parameters

Model	LW-250*1000	LW-350*1460	LW-450*1800	LW-520*2130	LW-650*2275	LW-720*2665	LW-900*2700	LW-1000*2500
Max speed(r/min)	4000	4000	3600	2800	2500	2000	1500	1500
Processing capability(m³/h)	0.5-3	3-12	6-20	12-30	25-35	45-100	50-110	50-120
Main motor power(kw)	11	22	30-45	45-75	75-110	110-160	160-220	280
Main motor power(kw)	11	22	30-45	45-75	75-110	110-160	160-220	280

Main Characteristics
1.Continuous working,spiral discharging,high capacity.
2.Controlled by two motors,rovolving drum can be adjustable two stage separately.
3.Wide applicability for chemical,oil,foodstuff,pharmacy industries and green industry in which solid-liquid separation is required.
4.Suitable for various products,capable for separating wide ranging solid phase grains(0.002-2mm),especially when separating solid phase has different size grains

Material Choice
According to users' requirement,the product contact parts can be made of austenite stainless steel(321,316L...904L,C2205),Haynes
alloy titanic alloy or other anti-erosion materials

Structure Choice
1. Methods of lubrication:
A.Grease lubrication
B.Circular forced lubrication
2. Number of helical blade head is selectable within single head helix,double head helix or multiple head helix3. Helix surface is coated with high hardness alloy

Special Allocation
Following allocation can be possible to meet customer's demand
1.Frequency conversion plus PLC controlling system
2. Protection system for vibration and temperature rising
3.Feeding speed control
4.Gas-liquid separation device on liquid outlet
5.Three kinds of structure selection of cycloid gear,planetary gear and hydraulic differential. They are used to be transfered the different solid phase by pushing the torque.

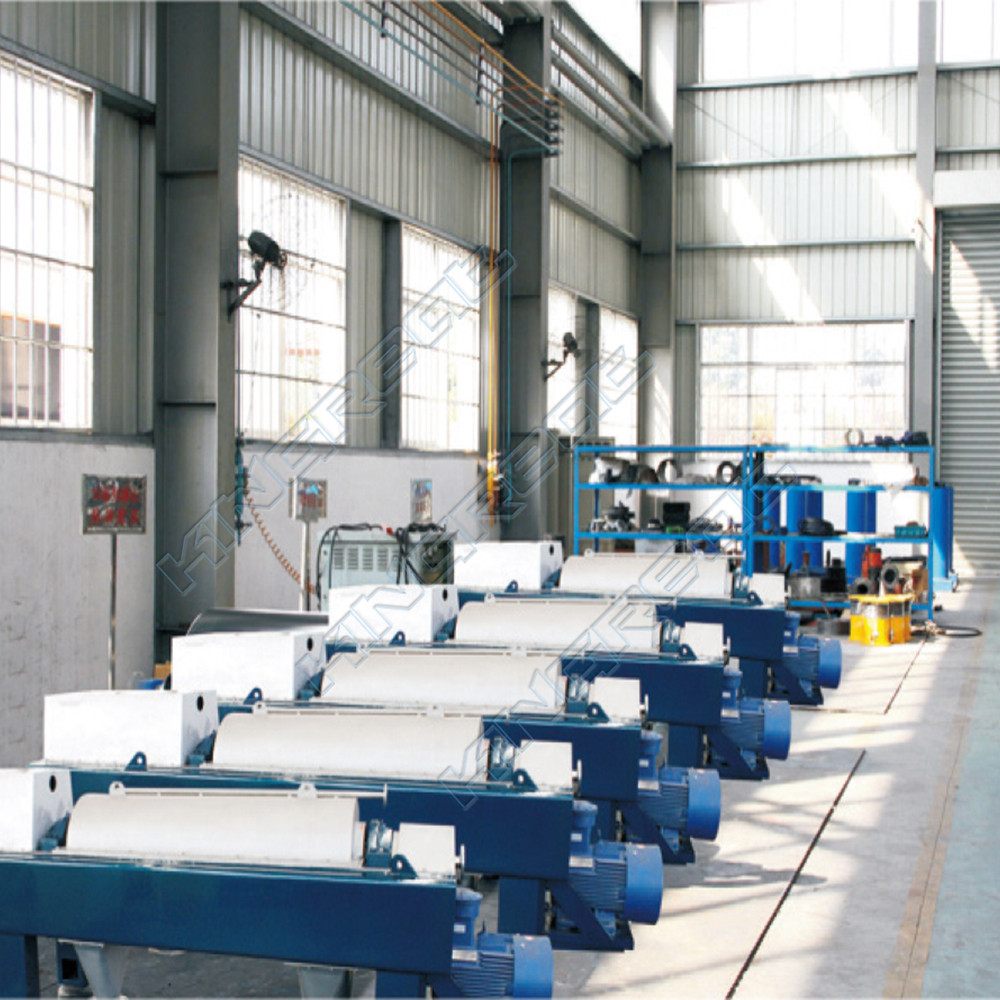

Detailed Images

Packing&Delivery

Our Company

Nanjing Kingreat Machinery Co., Ltd , covering an area of 650000m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers. It has obtained the approvals and certifications of both ISO9001:2008 quality control system and the military product quality certificate, BV and CE certificates. Some of our machines gained the new technology invent patent.

We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Now there are over 150 series of decanter centrifuges and disc separators used both home and abroad.

Our Certification
