Product Attributes

- Brand Name koen
- Place of Origin China
- Supply Type other
- Condition New
- Color White
- Related Keywords tubular centrifuge, high speed centrifuge

Description by Manufacturer

Products Description

GQ75 Algae Harvest Tubular Centrifuge 2.2L

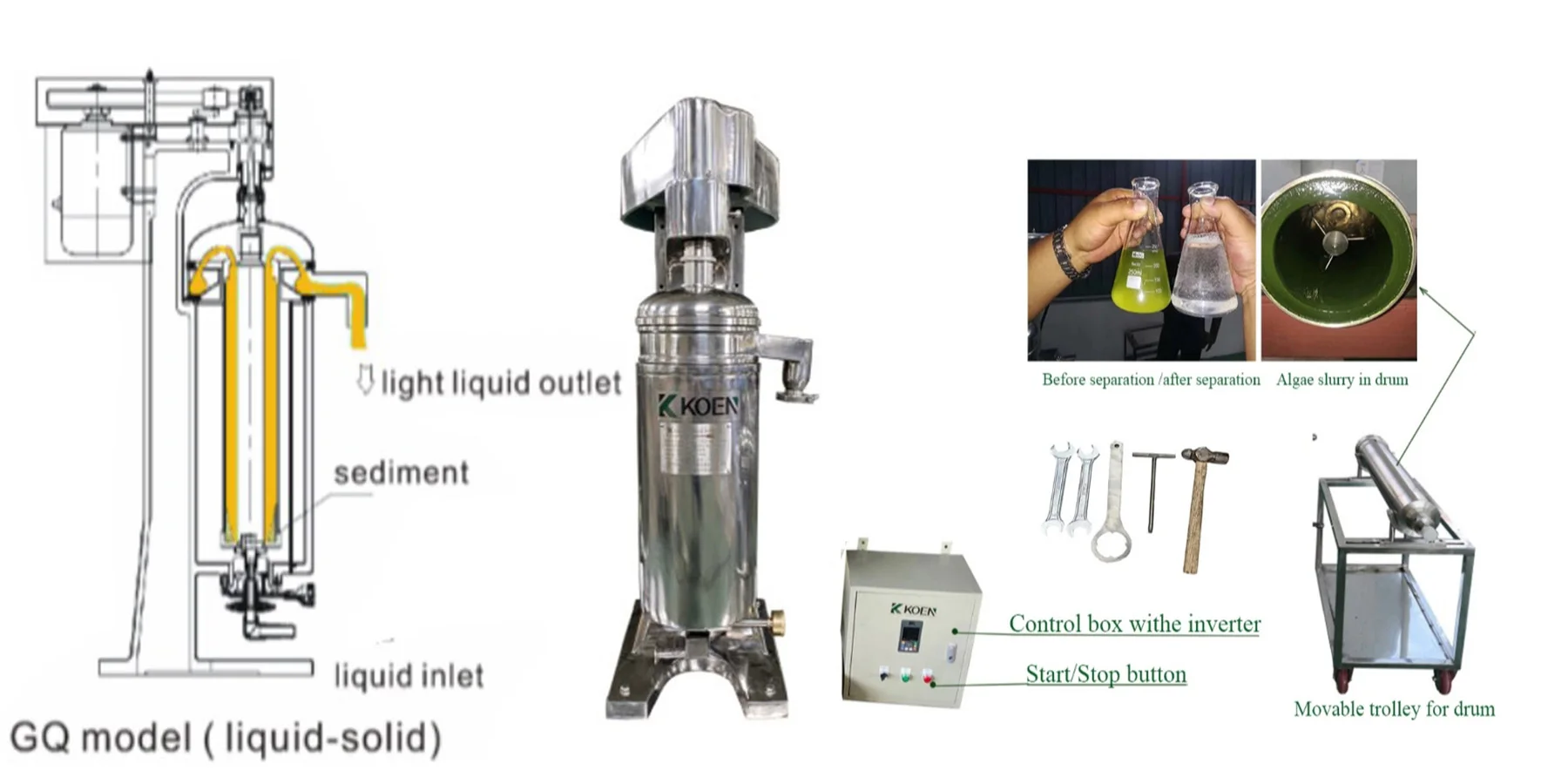

GQ Type tubular centrifuge is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing  base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density.

GQ type two phase solid-liquid separator is suitable for solid content lower than 2% solution ,widely used for many algae separation ,such as Chlorella, cyanobacteria, spirulina, Pseudomonas, Schizochytrium, brown algae, diatoms, golden algae . After separation , the solid will collect in the drum .Then stop the centrifuge and take out the drum for solid discharge .

Typical Application
(1)Clarifying process for liquid solid product(oral liquid)
(2) Extraction of protein,seaweed and jelly(plant extraction,herb extraction,pigment extraction)
(3) Refined molasses ,algae harvest .
(4) Settlement of bacteria (yeast, E.coli, lactobacillus, bacillus subtilis, nitrobacter etc)
(5) Processing of granular, crystalline and fibrous suspensions
(6) Separation of filterable and non-filterable sludge.

Details Images

Product Paramenters

Model	GQ75	GQ105	GQ125	GQ150
Drum Diameter	75mm	105mm	125mm	150mm
Rotating Speed of Drum	19000rpm	16300rpm	15000rpm	14000rpm
Centrifugal force	15200G	15620G	15700G	15600G
Capacity	600L/H	1200L/H	1500L/H	2500L/H
Motor	1.5kw	2.2KW	3.0KW	3.0KW
Weight	300kg	500kg	550kg	600kg
Dimension	7604501120mm	8405001600mm	9005501600mm	9506001600mm
