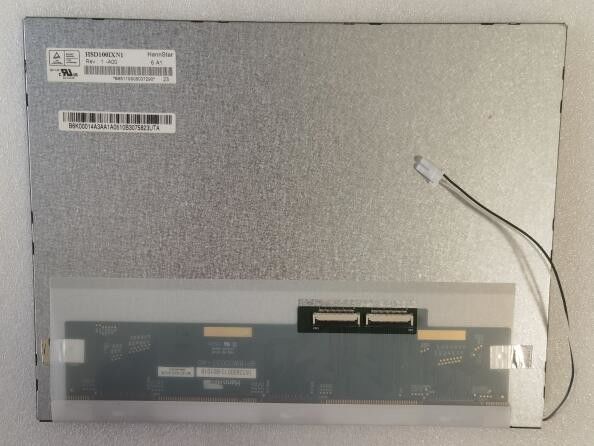

10 Inch 1024*768 Hsd100ixn1-A10 Touch Screen Panel Lcd Display Tft Module
HSD100IXN1-A10 is a 10.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Based on datasheet with version of Rev1.0 which was released out on 4 27 2010, HSD100IXN1-A10 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 202.752(W)×152.064(H) mm, outline size of 215.5(W)×166.5(H) mm, viewing area size of 205.8(W)×155.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 330g (Typ.). As a TN, Normally White, Transmissive LCM product, HSD100IXN1-A10 can provides 250 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 2.4/5.6(Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted 3S11P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 20K hours, external backlight driver is additionally needed. HSD100IXN1-A10 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.3/9.48/17/-7V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
product details
| Module number | HSD100IXN1-A10 |
| Resolution | 1024(RGB)×768, XGA, 128PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 202.752(W)×152.064(H) mm |
| Bezel Opening | 205.8(W)×155.1(H) mm |
| Outline Size | 215.5(W)×166.5(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 2.4/5.6(Typ.)(Tr/Td) |
| Display Colors | 262K 60% NTSC |
| Lamp Type | 3S11P WLED , 20K hours , Without Driver |
| Signal Interface | TTL (1 ch, 6-bit) , 60 pins Connector |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
features
The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
