Product Attributes

- Model Number HydraulicMotored
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color black
- Related Keywords Hydraulic motored pump, Hydraulic rescue spreader, Hydraulic cutter spreader

Description by Manufacturer

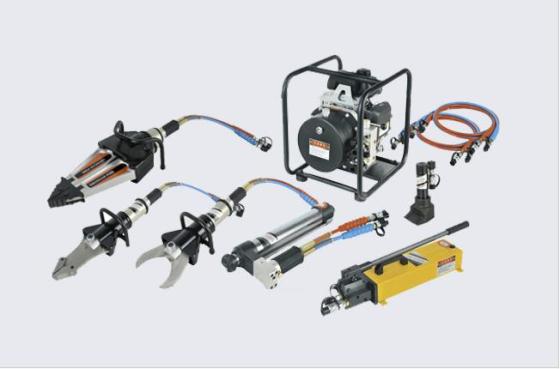

Hydraulically Operated Multi-Purpose Rescue Equipment/ Toolkit

1) Hydraulic Motored Pump

Main applications：Working together with hydraulic rescue tools, BJQ63/0.6 hydraulic motored pump is one of the power sources. In the event of fire, traffic accident or earthquake,the pump is used to provide power for various rescue tools so as to carry out such rescue operations as spreading, pulling, smashing, pressing, cutting, lifting, etc., for the rescue crew to come to the rescue of stranded victims or endangered objects. It is an indispensable tool to fire brigades, traffic departments, industrial and

mining organizations and other rescue facilities.

Technical Parameters

Rated working pressure	63Mpa
Rated flow	0.6L/Min
Low pressure working pressure	10Mpa
Low pressure flow	2.0L/Min
Motor	3.0Hp Honda Gasoline Engine
Oil tank capacity	3.0L
Weight	28kg

2) Hydraulic Spreader

Technical Parameters:

Description	GYKZ40/600
Rated working pressure	63Mpa
Spreading force	40KN
Spreading distance	600mm
Total weight	22kg

3) Hydraulic Cutter

Technical Parameters:

Technical Parameters:	63Mpa
Cutting force	200KN（Φ20/Q235 round steel bar） Φ20/Q235 round steel
Opening distance	100mm
Total weight	15kg

4) Hydraulic comb tool / cutter and spreader

Technical Parameters:

Rated working pressure	63Mpa
Cutting force	200KN（Φ16/Q235 round steel bar） Φ16/Q235
Spreading force	25-30KN
Spreading distance	350mm
Total weight	16kg

5) Hydraulic rescue ram

Technical Parameters:

Description	GYCD120/830	GYCD120/1250
Rated working pressure	63Mpa	63Mpa
Piston stroke	300mm	500mm
Spreading length	830mm	1250mm
Extending force	120KN	120KN
Total weight	11.5kg	14.5kg

6) Hydraulic door opener

Technical Parameters:

Rated working pressure	63MPa
Maxi Opening Force	80KN
Maxi Opening Distance	100mm
Applicable temperature range	-20℃～55℃
Weight	6.5kg

6) Hydraulic manual pump

Technical Parameters:

Rated working pressure	63 MPa
Rated flow	≥ 3.0ml/time3.0ml/time
Low-pressure working pressure	10 MPa
Low-pressure flow	≥13.5ml/time13.5ml/time
Oil tank capacity	3.0 L
Weight	12 Kg

7) Hydraulic universal shears

Technical Parameters:

Rated working pressure ∕MPa	63
Cut capacity / KN	150(Φ10/Q235round steel，6mmQ235steel plate)
Shear opening distance∕mm	60
Angle of head swing	±90°
Dimension ∕mm	560×210×70
Total quality ∕kg	7.8

8) Hydraulic slit opener

Technical Parameters:

Working pressure	63MPa
Maximum lifting height	50mm
Maximum lift	240KN
Wedge angle	15°
Weight	11KG
Dimension	650×210×175mm

Standards:

The Chinese GB/T17906-1999 "Technical Conditions for hydraulic breaking tools" standard.

Welcome your inquiry about our products at any time.

Price

Price US$ 1 / Set

Packaging & Shipping

- PackingCarton packaging
- Delivery Lead Time20 days for ready goods
- Minimum Order 1 Set
- Supply Ability10000 sets per year
- Total quantity in Stock1 - 10
- Delivery PortTianjin
- Shipping Career

Product Image

Hydraulically Operated Multi-Purpose Rescue Equipment/ Toolkit for Fire Rescue/ Traffic Accident

Hydraulically Operated Multi-Purpose Rescue Equipment/ Toolkit for Fire Rescue/ Traffic Accident 2

Hydraulically Operated Multi-Purpose Rescue Equipment/ Toolkit for Fire Rescue/ Traffic Accident 3

Hydraulically Operated Multi-Purpose Rescue Equipment/ Toolkit for Fire Rescue/ Traffic Accident 4

Hydraulically Operated Multi-Purpose Rescue Equipment/ Toolkit for Fire Rescue/ Traffic Accident 5

Hydraulically Operated Multi-Purpose Rescue Equipment/ Toolkit for Fire Rescue/ Traffic Accident 6

Hydraulically Operated Multi-Purpose Rescue Equipment/ Toolkit for Fire Rescue/ Traffic Accident 7

Hydraulically Operated Multi-Purpose Rescue Equipment/ Toolkit for Fire Rescue/ Traffic Accident 8
