1. Product Introduce

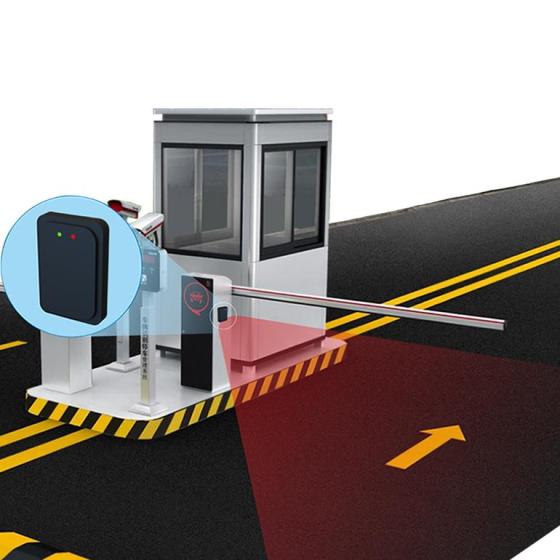

Microbrain ITS-AX2 fence barrier gate sensor is a kind of 79GHz millimeter wave radar that can detect proximity vehicle and control parking boom barrier arm automatically with reasonable price. The radar can also smartly avoid the accidentally injury to people passing by with pedestrian and vehicle distinguish function.
ITS-AX2 applies highly integrated TI chip. The famous TI chip help radar have advantages like small size, all day working, sensitive detection, high accuracy, easy install and stable performance.
Microbrain ITS series barrier gate sensor includes the arm trigger type for barrier gate open and arm anti-fall type for open condition keep. They can sense and control the barrier gate automatically by cooperative working with barrier controller. By this way, passing safety will be secured.
2. Applications
ITS-AX2 can be installed on all types of barrier gates like advertising barrier gate, fence barrier gate, light box barrier gate, straight barrier gate, telescopic barrier gate and bend barrier gate.
3. Product Parameters
Performance |
Parameters |
Value |
System Performance |
Working Voltage(V) |
9-24V DC (typical value 12V/1A) |
Working Temperature(℃) |
-40℃~ +85℃ |
|
Power Consumption(W) |
< 2.8 |
|
Frequency(GHz) |
79 |
|
Waterproof Level |
IP55 |
|
Response Time(ms) |
100 |
|
Interface Port |
RS485; Bluetooth |
|
Size (mm) |
107.9*73.6*17.2 |
|
Weight (g) |
132.4 |
|
Detection Range |
Horizontal Width(m) |
±0.5~±1.5 (Configurable) |
Vertical Length (m) |
1~6m (default 3m) |
|
Data Upgrade |
Online Data Adjust |
RS485; Bluetooth |
Online Data Upgrade |
RS485; Bluetooth |
4. Functions
● Improved Protection: Professional waterproof and dust proof level which can meet international safety standards.
● All Weather: Newest algorithm which can switch weather condition automatically. More adaptable to different weather.
● Stable Detection: The antenna pitch angle turns narrow from ±15° to ±9°, which makes radar be adaptable to complicated ground. The beam wave more focused makes the human/car detection be more stable.
● Wide Voltage Range: Input 9V-24V with stable working for more application.
● Asymmetric Antenna: Breakthrough industry with pitch angle narrow-top wide-bottom design. Adaptable to complicated grounds like sand, stone or snowy ground.
● Bluetooth Communication: Support bluetooth data adjust; Upgraded long bluetooth transmit distance with faster data read/write.
● Remote Debugging: Final users can deal with special conditions by remote debugging function. After sales service for malfunction can be operated on APP directly. Quick and convenient.
● One-click Upgrade: Final users can upgrade the radar firmware by just one click. The original firmware will be stored automatically even if electricity powered off during upgrading.
5. Installation Video
Below is the installation video for single arm barrier gate sensor. If more details needed for other type barriers, please contact us freely.
Click fore more: https://en.microbrain.com.cn/barrier-gate-sensor
