Industrial Detection Light Handheld LED UV NDT Lamps

Add to Basket Share to :

Price

1 - 3
US$ 1508
≥4
US$ 1131

Min Order Quantity1 Piece
Supply Ability100 units /Month
PortChina
Delivery Lead TimeShipped in 3 days after payment
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Yushi Instruments
Membership Free member
Registration Date2017.11.30
Country/RegionChina
CityShenyang
Contact Sunny Sun(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name YUSHI
- Model Number VM100 Series
- Place of Origin China
- LED Light Source Nichia uv led
- LED bead Number 5
- Power Source AC
- Material Aluminum Alloy
- Wavelength 365nm
- Related Keywords Light, Industrial Detection Light, LED UV Lamp, LED UV NDT Lamp

Description by Manufacturer

Product Description

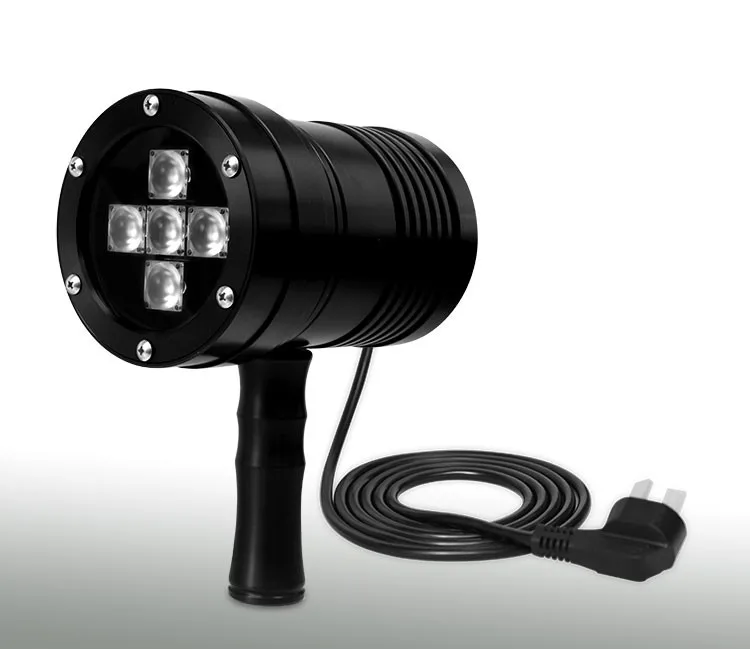

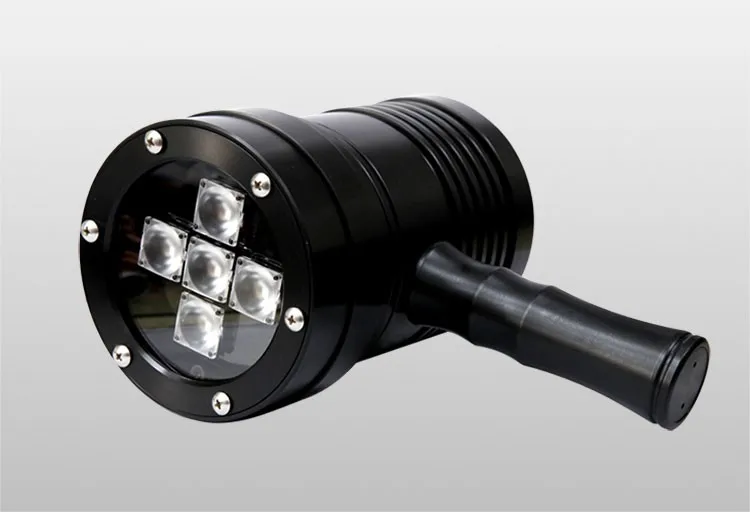

Industrial Detection Light Handheld LED UV NDT Lamps

Main Application
Fluorescent Penetrate Testing

Fluorescent Magnetic Particle Flaw Detection

Fluorescence Leak Detection

Detailed Images

Features

Yushi VM Series adopts high-power 365nm Ultraviolet band LED Lamp Beads produced by Japanese NICHIA company, free from UV-B and UV-C element,spectrum is pure.

The lifetime of Lamp beads reach up to 20000 hours, efficient, energy conservation and environmental protection.

High power output, quick start, can reach the maximum illuminance as soon as switched on.

Ultra-low power, ultra-high efficiency. Cold operated with cold light source, long term stability output the illuminance.

Optical filter is high UV transmittance transparent Quartz optical glass.

The shell of the instrument is made of high strength aluminium alloy 6061-T6 precision machining. The surface is anodized, sturdy and durable.

The built-in efficient cooling fin and low noise high speed fan dissipate the heat through aluminium alloy shell integrally.

Dedicated high-speed charger is equipped.

With anti magnetic interference function,it can be used in high-intensity magnetic field.

Both switches and charging port are at back of the device to avoid mis-operation.

The product has passed through International Standard of IEC 60529 --Housing Protection Grade(IP66)--dustproof and waterproof testing, wider working environment and more reliable.
Product Parameter

Model	VM100
Power Supply	AC
Lamp Beads	NICHIA 365nm Ultraviolet band LED Lamp Beads
Lamp Bead Amount	5
Input Voltage	100-240VAC
Output Power	15W
Intensity of Ultraviolet Ray at 38cm Distance	≥16000uW/cm2
Irradiated Area at 38cm Distance	￠200mm
Diameter of Light Inlet Window	￠88
Outline Dimension	￠123 mm×190 mm×120 mm
Weight(including Battery)	1290g

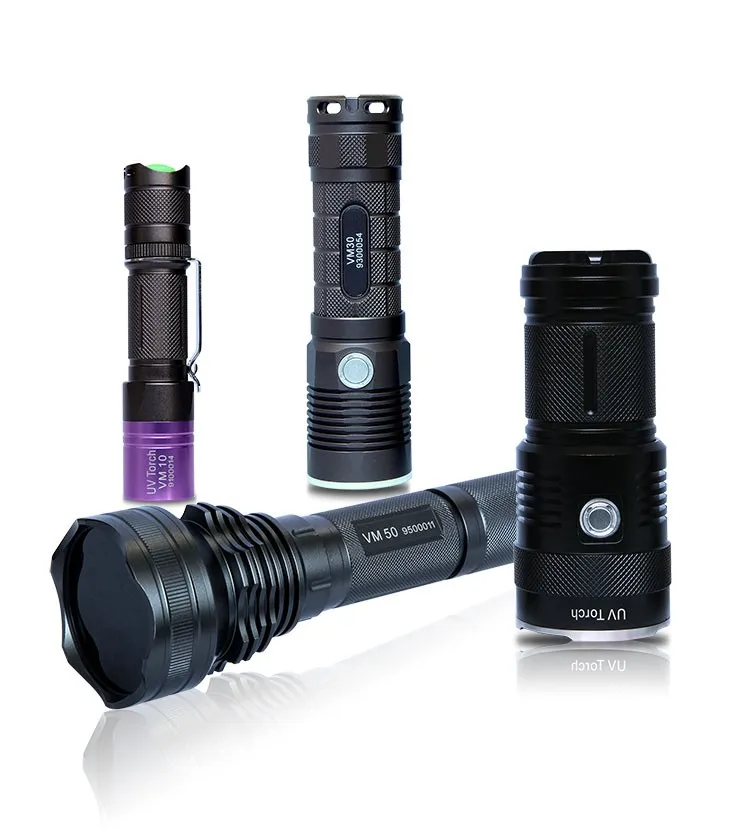

More Types

Model	VM10	VM30	VM50	VM70	VM100D
Power Supply	Chargeable Battery	Chargeable Battery	Chargeable Battery	Chargeable Battery	AC or Chargeable Battery Group
Lamp Beads	NICHIA 365nm Ultraviolet band LED Lamp Beads
Lamp Bead Amount	1			3	4
Input Voltage	3.7-4.2V	3.7-4.2V	3.7-8.4V	3.7-4.2V	100-240VAC
Output Power	3W			9W	12W
Intensity of Ultraviolet Ray at 38cm Distance	≥10000uW/cm²	≥13000uW/cm²	≥17000uW/cm²	≥20000uW/cm²	≥11000uW/cm²
Irradiated Area at 38cm Distance	￠43mm	￠45mm	￠55mm	￠80mm	￠200mm
Diameter of Light Inlet Window	￠22mm	￠34mm	￠55mm	￠50mm	￠88mm
Battery Model	ICR 18650	ICR 26650	ICR 26650	ICR 18650	ICR 18650--2600mAh 3.7V
Battery Capacity	2600mAh	4800mAh	4800mAh	2600mAh
Number of Battery	1	1	2	4	2﹡4
Charging Time	≥5H	≥6H	≥7H	≥5H	≥4H
Working Hours	≥4H	≥5H	≥8H	≥5H	≥7H
Battery Life	More than 500 time for fully charge and discharge
Outline Dimension	￠28 mm	￠40 mm	￠62 mm	￠60 mm	￠123 mm
	￠24 mm	￠33 mm	￠34 mm	￠50 mm	190 mm
	128 mm	144 mm	240 mm	143 mm	120mm
Weight(including Battery)	140g	240g	520g	610g	1560g

Packing & Delivery

Our Company

High Quality NDT Instruments, Choose YUSHI.
Shenyang Yushi Xianfeng Inspection Instrument Co.,Ltd is a professional NDT instrument manufacture located in Shenyang, China. We are established in year 1985 and we have many years experience in NDT instruments manufacture. We mainly produce ultrasonic thickness gauges, leeb hardness testers, coating thickness gauges, Industrial X-ray film viewers, UV lamps, etc.

Contact US

Certificates

- CE 12010134

Price

Price US$ 1131 ~ 1508 / Piece

Packaging & Shipping

- Packingin carton
- Packaging Size175 x 87 x 63 ( Millimeters)
- Package Weight 1290 ( Grams )
- Delivery Lead TimeShipped in 3 days after payment
- Minimum Order 1 Piece
- Supply Ability100 units /Month
- Delivery PortChina

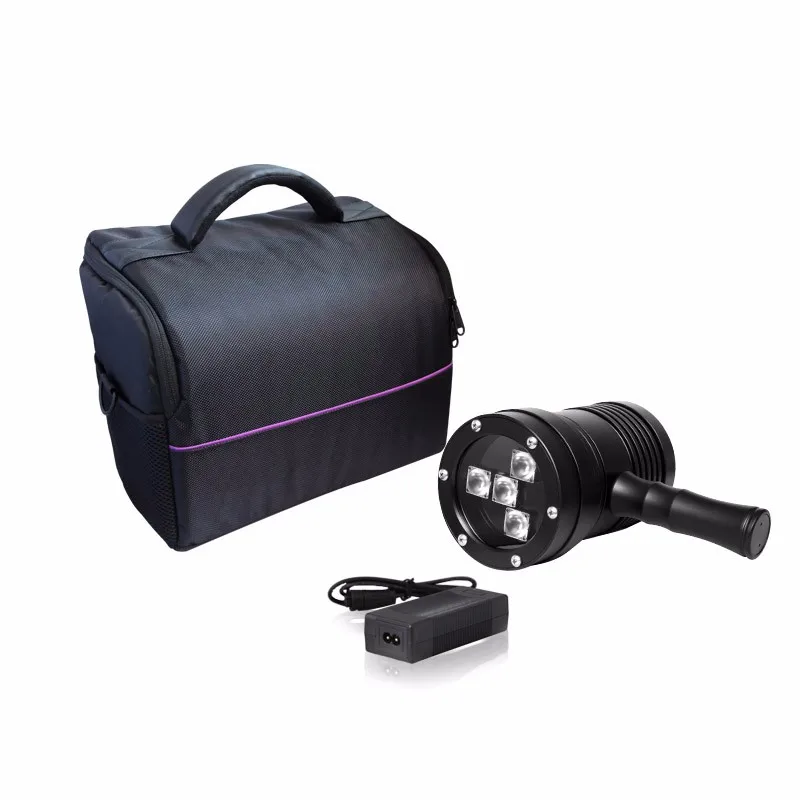

Product Image

Industrial Detection Light Handheld LED UV NDT Lamps
