Industrial Perfume Extraction Machine

Add to Basket Share to :

Price

US$ 15380 ~ 23070

Min Order Quantity1 Set
Supply Ability100 Sets per year
PortNingbo
Delivery Lead Time60 days for OEM
Payment Terms 5
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Wenzhou Jinbang Light Industry Machinery Co., Ltd.
Membership Free member
Registration Date2022.06.04
Country/RegionChina
CityWenzhou
Contact Zoe Jin(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Contact Supplier

* From

Ms.Zoe Jin

Wenzhou Jinbang Light Industry Machinery Co., Ltd.

* Buying Product

Category : Other Manufacturing & Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name JNBAN
- Model Number Industrial Perfume Extraction Machine
- Place of Origin China
- Supply Type customization
- Condition New
- Color Silver
- Volume(L) 750
- Tank design pressure (MPa) 0.09
- Mezzanine design pressure (MPa) 0.3
- Feed port diameter (mm) 150
- Heating area(square meter) 2.0
- Condensation area(square meter) 3
- Cooling area(square meter) 0.5
- After-sales Service Provided yes
- Certification CE
- Product name Industrial Perfume Extraction Machine
- Related Keywords Extraction Machine, Perfume Extraction

Description by Manufacturer

Application

Products Description

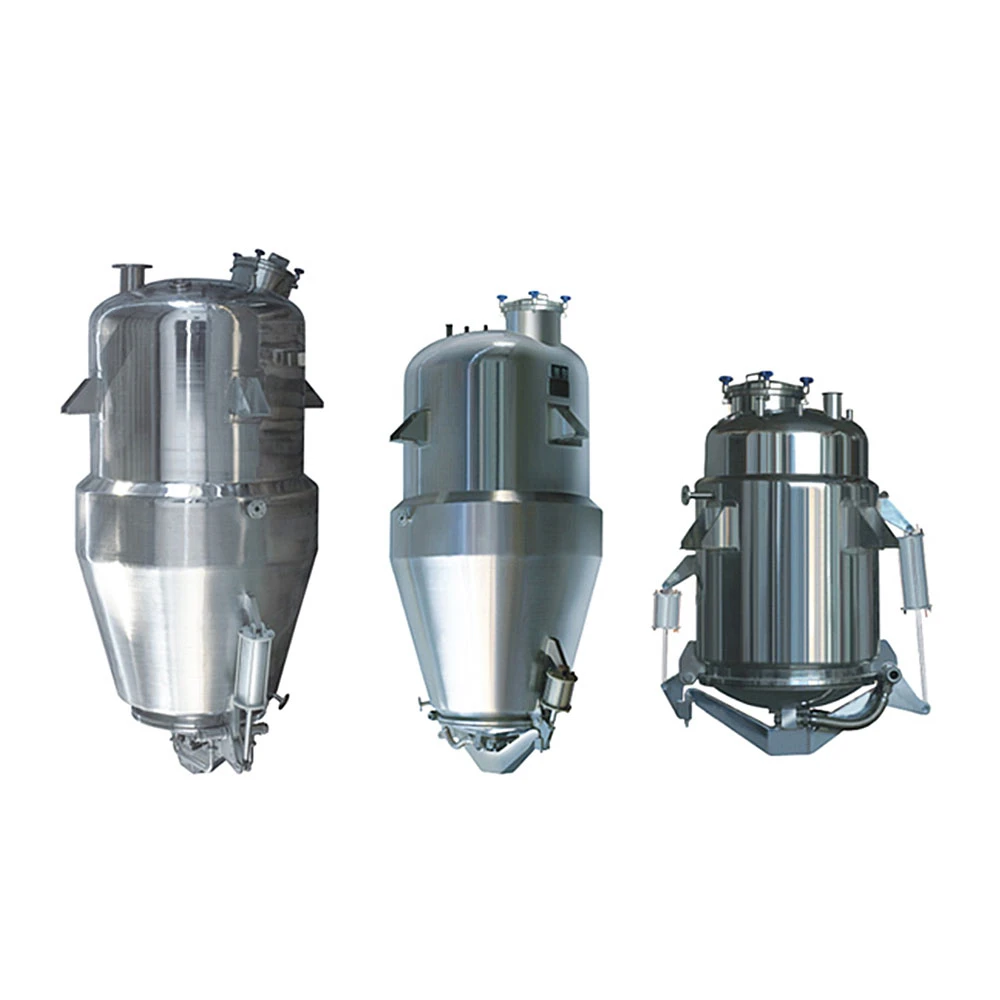

Industrial Perfume Extraction Machine

Put the medicinal materials to be extracted into the extraction tank, and add a certain proportion of solvents such as water,ethanol, methanol, acetone, etc. according to the production process (add it according to the process). For the extraction of the original medicine, the extraction temperature can be set according to actual needs. The extraction is carried out according to the production process. After the extraction is completed, the pipeline valves are opened in sequence, and the liquid is pumped into the concentration tank for concentration. The temperature of the concentrated liquid is set at the required value, and the vacuum degree is maintained at -0.05 to -0.09MPA. The secondary steam generated during the concentration passes through the condenser and cooler to become the condensate and return to the extraction tank as a new solvent. Add the new solvent to the medicine. From top
to bottom, through the medicinal material layer to the bottom of the extraction tank, the soluble components in the medicinal material are dissolved in the solvent in the extraction tank, and sent to the extraction tank as a new solvent, forming a new solvent and refluxing extraction until it is completely dissolved (the extract is colorless) and the concentration continues. ,Until it is concentrated into the required specific gravity ointment, the colorless liquid in the extraction tank can be reused next time.

Equipment advantages:

●Intelligent: PLC control extraction and separation pressure and temperature and other parameters, operating interface is intuitive and convenient;
● High pressure: The design pressure of the extractor is 55 MPa, and the working pressure is 50 MPa;
● Safety: With hardware security protection measures, and software system has the function when overpressure the pump will be stopped ;
● Convenience: Extractor clamp quick-opening structure, and use an electric hoist to lift seal plug and loading barrel;
● Energy conservation: CO2 can be recycled, and the CO2 in the extractor and cylinder can be recover lower than 0.8 MPa;
● High efficiency: Optimize extraction process, the capacity can be increased more than 50 %.

Accessories:

The tank is equipped with CIP cleaning automatic rotating spray ball, temperature gauge, pressure gauge, explosion-proof sightglass lamp, sight glass, quickopening feeding port, etc., to ensure easy operation and meet GMP standards. The inner cylinder ofthe equipment is made of 304 and 316L.

Application

Extraction Machine Range of Application:

JNBAN Multifunctional Extracting Tank suitable for engineering operations of plants,animals, such as atmospheric pressure,pressurized water decoction, warm immersion, heat reflux, forced circulation, seepage, aromatic oil extraction andorganic solvent recovery in pharmaceutical,biological, chemical, food, beverage and other industries. It is better to use dynamic extraction or counter current extraction, short time and high liquid content.

Product Paramenters

Series technical parametes	TQ-1	TQ-2	TQ-3	TQ-4	TQ-5	TQ-6
Volume(L)	1200	2300	3200	6300	8500	11000
Tank design pressure (MPA)	0.09	0.09	0.09	0.09	0.09	0.09
Compressed air pressure (MPA)	0.3	0.3	0.3	0.3	0.3	0.3
Feed port diameter (mm)	400	400	400	500	500	500
Heating area (m²)	3.0	4.7	6.0	7.5	9.5	12
Condensation area (m²)	4	4	5	5	8	10
Coling area (m²)	1	1	1	2	2	3
Filtration area (m²)	3	3	3	5	5	6
Slag gate area (m²)	800	800	800	1000	1000	1000
Energy consumption (kg/h)	245	325	345	645	720	850

Successful Project

FAQ

Q1：What Factors Affect The Quality Of Plant Extract From Plant Extraction Machine?
The quality of the plant extract may directly or indirectly be proportional to the following factors:
●Raw material; Pay specific attention to the variety of the plant because even the slightest variation could shift the extract quality.Even the particular plant variety would be affected by climatic conditions, geographical locations, cultivations, and so on.
Unluckily, finding the balance between the specific needs is quite challenging.As such, we are guaranteeing quality with the raw materials is hectic.
●Quality of the solvent; Having the best choice solvent would result in high-quality extract and vice versa.
●Selected plant extraction machine; The operating principle and operation hugely determine the quality level of the extract.

So you have to pay attention to the machine specification.
It is prudent to buy from a reputable seller with years of experience and quality.

Q2:What Heat Sources can you Employ for your Machine?
● Steam
● Hot water
● Hot oil

Q3:Purchasing process
●Consultation, test, technical scheme determination, business negotiation, contract.

Q4:How long is the guarantee period
●1 year after finishing installation and commissioning.

Company Profile

Certifications

Certificates

- CE TPZJ19041517707

Price

Price US$ \ 15380 ~ 23070 / Set

Packaging & Shipping

- Packaging Size1100 x 210 x 900 ( Centimeters)
- Package Weight 3300 ( Kilograms )
- Delivery Lead Time60 days for OEM
- Minimum Order 1 Set
- Supply Ability100 Sets per year
- Delivery PortNingbo
- Shipping Career

Product Image

Product Video

Extraction Machine Related Products

Related Products from premium suppliers on EC21

- Wenzhou Jinbang Light Industry Machinery Co., Ltd. is mainly exporting to Asia, Europe, North America

Company Profile

About Wenzhou Jinbang Light Industry Machinery Co., Ltd.

Membership Free member
Registration Date2022.06.04
Country/RegionChina
CityWenzhou
Contact Zoe Jin(Ms.)

Founded in 1997, the company is now located in Wenzhou Binhai Industrial Park, with three production bases, covering an area of 60030m2
Wenzhou Jinbang Light Industry Machinery Co., Ltd. is a high-tech enterprise integrating R & D, manufacturing and sales. Professional in the production and sales of pharmaceutical, bioengineering machinery and equipment professional enterprises. The company mainly specializes in consulting, scheme design and manufacturing, budget, on-site installation and after-sale maintenance of traditional Chinese medicine extraction equipment, concentration equipment, separation and purification equipment, alcohol recovery equipment and drying equipment. The company now has a high-tech, high-quality professional staff team. At present, there are 28 senior and medium-level technical personnel, 4 guest professors and more than 300 employees. High tech enterprises have class A2 class III pressure vessel design qualification, D1, D2 class I and II pressure vessel manufacturing qualification, GC2 pressure pipeline installation qualification, and EU CE certification is used for the manufacturing, and the manufacturing meets CMP, FDA and ASMI standards.
Since its establishment, the company has been widely supported by all walks of life. With the joint efforts of all employees, the company has made rapid development. Jinbang machinery is now a famous brand with great influence in China, and it has been paid attention and affirmation by customers from both home and abroad. Adhering to the business philosophy of "service first, quality first", and adhering to the principle of "being a business and making a friend", the company has made the enterprise grow rapidly and has been widely recognized by the industry, and has become a first-class brand pharmaceutical equipment manufacturing enterprise in China. At present, we will work hard and sincerely look forward to working with you to create a better future together!
