InnoLux 7 inch LCD AT070TN83 V.1

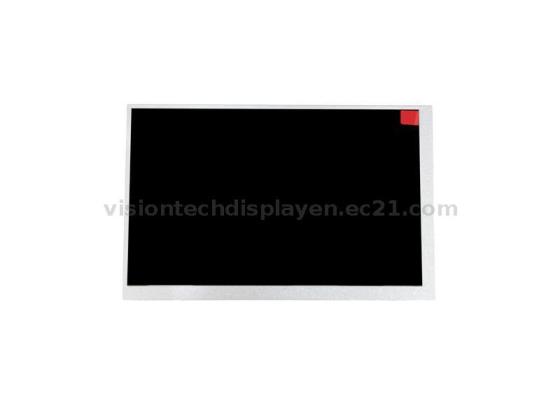

This is InnoLux 7 inch 800×480 TFT LCD display with tcon board AT070TN83 V.1, with built-in led driver. It’s original InnoLux packaging, could be delivered from Shenzhen or Hongkong. It’s widely applied in portable DVD player, digital photo frame, oscilliscope etc.
Description
It’s InnoLux 7 inch 800×480 TN panel AT070TN83 V.1, with built-in LED driver. It’s widely applied in industrial control device, portable DVD player, video door phone, access control, digital photo frame, oscilliscope etc. Resistive touch panel are available for option.
Specification
- Size: 7.0inch(diagonal)
- Resolution: 800×480
- Outline Dimension: 165(W)X104(H)X5.5(D) mm
- Active Area: 152.4 (W)X91.44 (H) mm
- Luminance: 400cd/㎡
- Viewing Angle: 70/70/50/70(L/R/T/B)
- Operation Temp.: -20~70℃
- Storage Temp.: -30~80℃
- Interface: RGB/TTL
Drawing
