Insulated Thermostatic Heating Element PTC Ceramic Air Heater Electric Heater 120*50mm

Add to Basket Share to :

Price

1 - 49
US$ 6.5
50 - 999
US$ 6.2
≥1000
US$ 5

Min Order Quantity1 Piece
Delivery Lead Time7-15 days, can be negotiated
Payment Terms 6
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shanghai Yidu Electronics Co., Ltd.
Membership Free member
Registration Date2023.03.29
Country/RegionChina
CityShanghai
Contact Nikki. Jiang(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name YIDU
- Model Number JQ-76A2-110V-200W-CK
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Power Source Electric
- Weight 0.13 KG
- Warranty 6 Months
- Core Components PTC ceramic thermistor
- Heat material PTC ceramic thermistor
- Voltage 110/220V
- Related Keywords Heating Element, PTC Ceramic, Air Heater

Description by Manufacturer

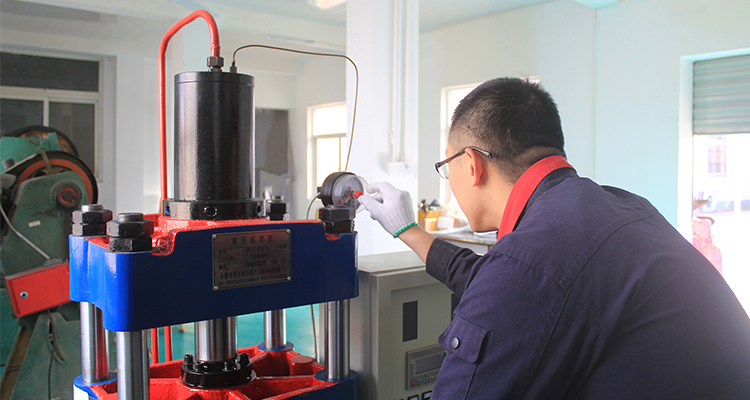

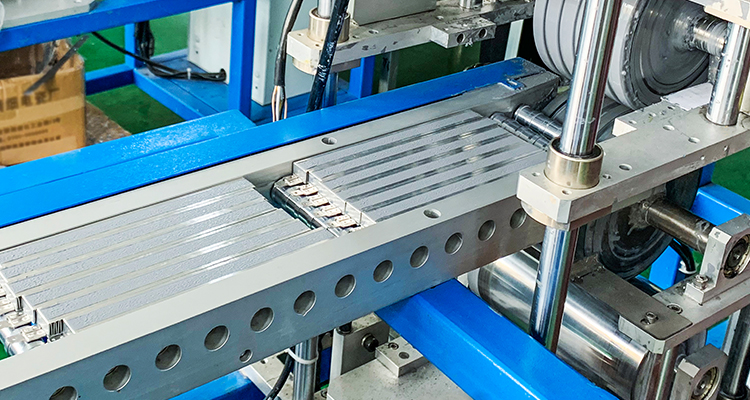

Factory strength display

In 2002, a large-scale production base was established in Langxi, Anhui. Our company is committed to the development and production of PTC products for more than 20 years, integrating production and processing, distribution and wholesale, terminal sales.
Main application areas of the product: subway gates, ticket machine constant temperature heating, car auxiliary or heating, equipment and equipment constant temperature heating, household appliances, kitchen and toilet heating liquid heating, train cabin air heating, heating plates for various applications.

Provide one-stop service, with a strong R&D team and sophisticated staff, who can tailor PTC products that you specifically need.

Exports to more than 60 countries, including the United States, Japan, South Korea, Canada, Russia, Burkina Faso, the Netherlands, France, Germany, Denmark, etc.

Product Description

PTC Heater Heating Element1. Rated Voltage: 110V~220V
 Rated Power: 200W~400W (R=24℃,5~7m/s wind flow velocity)

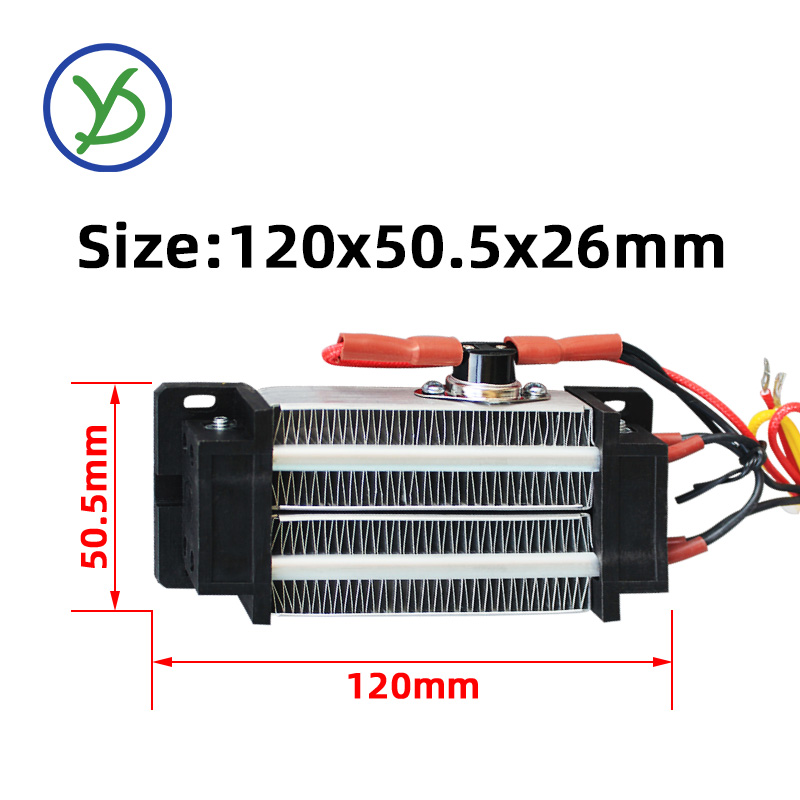

 Dimension: 120*51*26mm
Dimension of Fin:76*51mm
Dimension of Mounting hole:100*42mm

Product Name	PTC Air Heater(PTC Heater Heating Element)
Heat Material	PTC Thermistor
Heat Methods	Heat Radiation by Air Flow
Lead Wire	Silicone High Temperature Line
the Length of Lead Wires	200mm
the Length of Bare Wires	10mm
Surface Insulate	Yes
Application	Air Conditioning Units / Electric Heater /Car / Equipment/ General Electric Appliance/ Air Curtain Machine / Humidifier/PTC Heater Heating Element

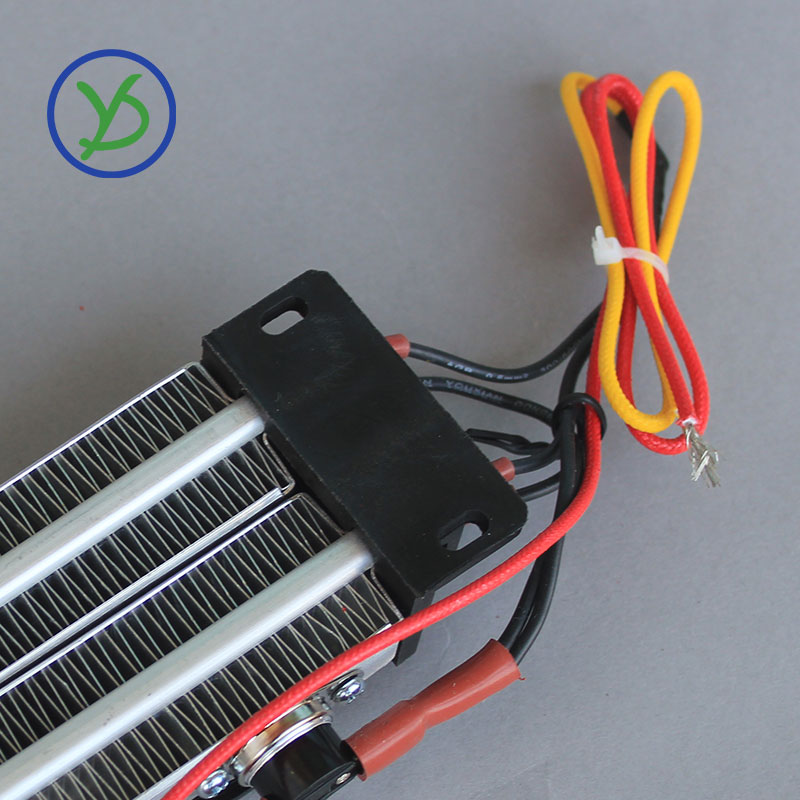

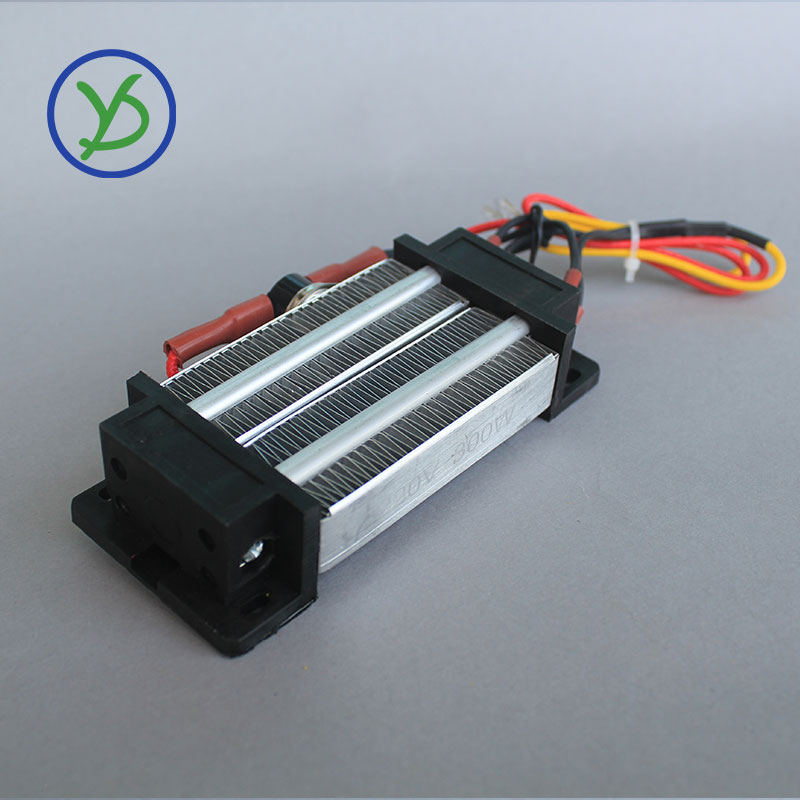

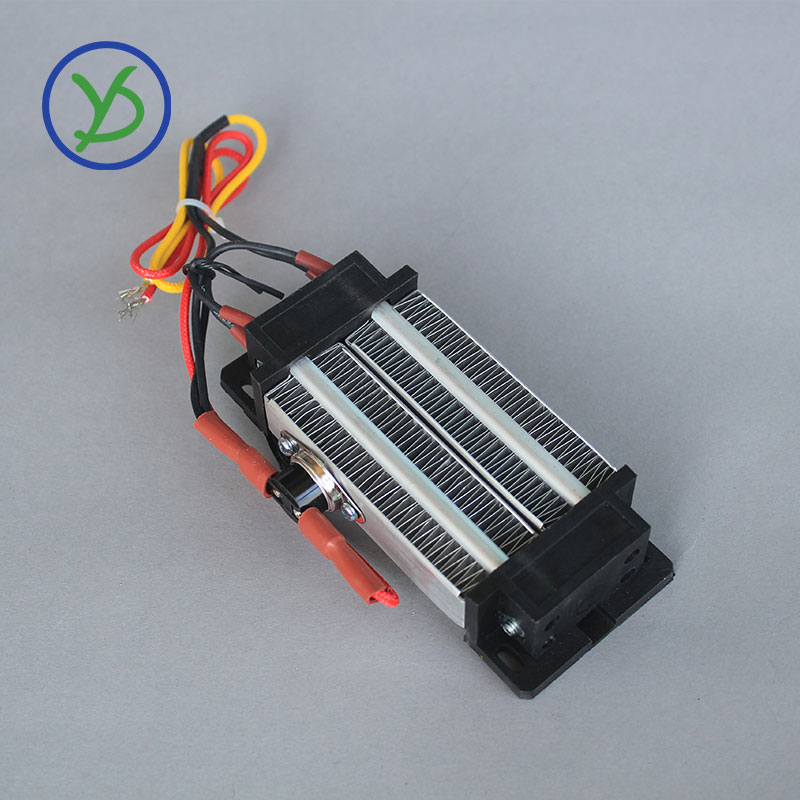

Products Show

Products Dimension

Instruction manual:

1, The power line does not distinguish between positive and negative, you can freely link power 110/220V.

2, When the heater is dry, low thermal efficiency, it is recommended to use with the fan.

3, Can be placed under a wet environment, but can not be placed in water.

4, For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.

5, Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.

6, Both ends of the product wearing bracket (PA66 high temperature nylon)

7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.

8, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!

9, Life: about: 3--5 years.

Packing & Delivery

Packing Details  : Packing, 50pcs/carton
Delivery Details : 1-5 days after order

Application

Hot Selling

High quality

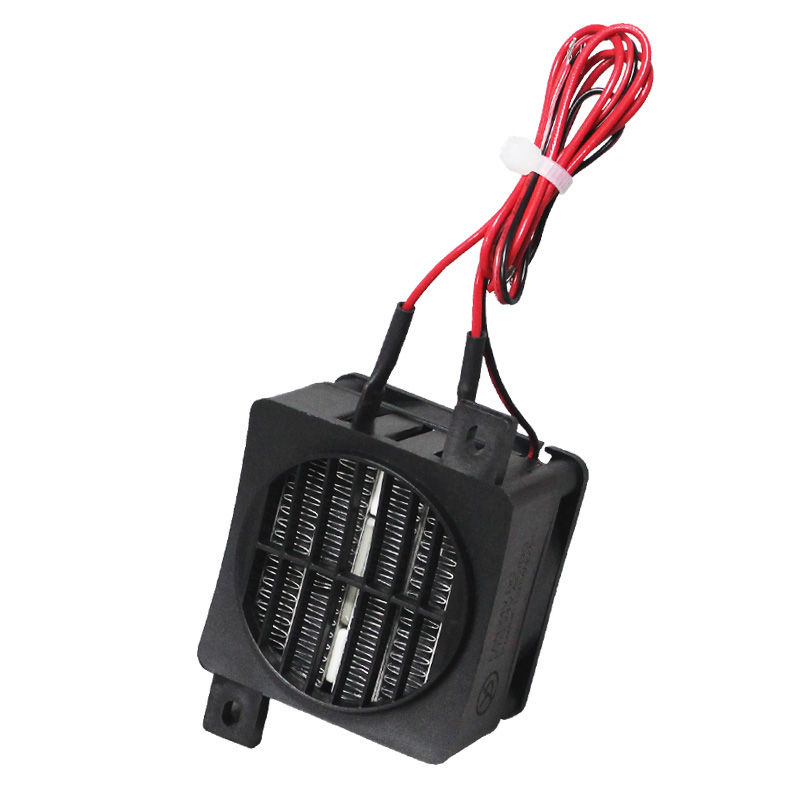

PTC Fan Heater

High quality

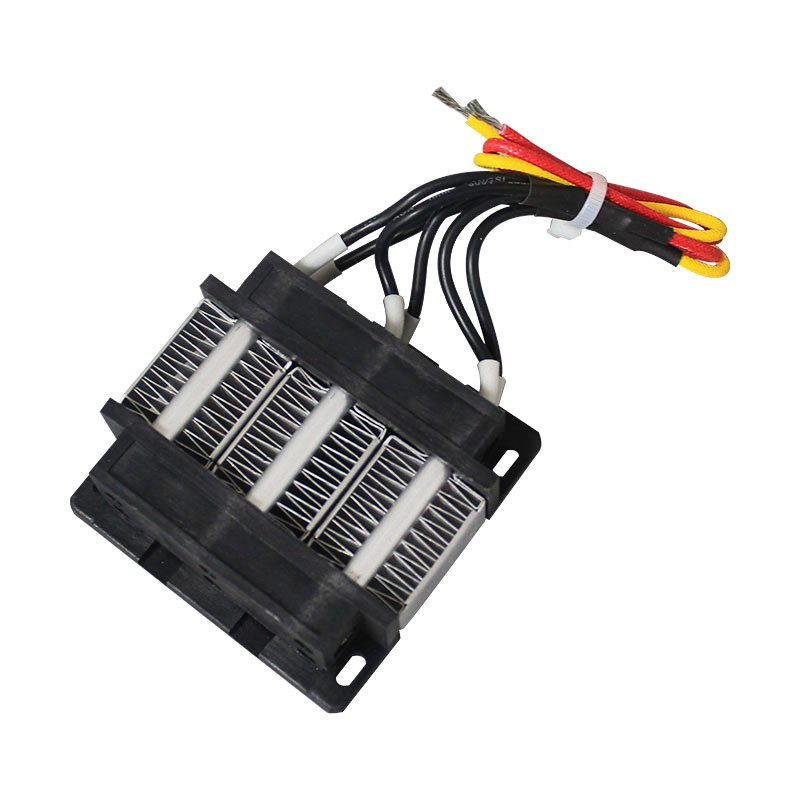

PTC Air Heater

High quality

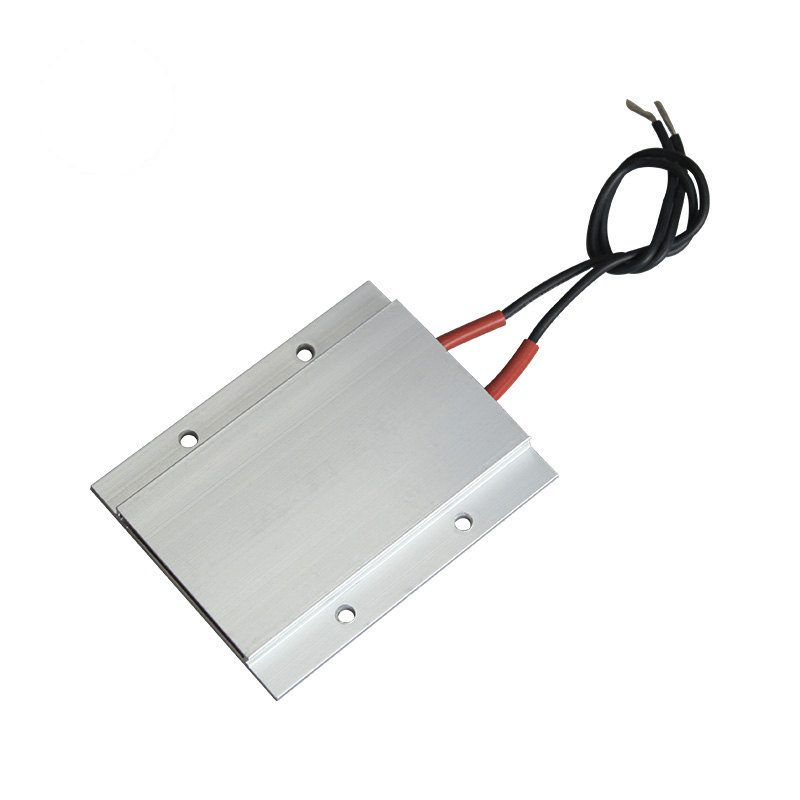

PTC Heater With Aluminum shell

FAQ

Q: Are you trading company or manufacturer ?

A: We are professional PTC factory.

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.

Q: Can you customise different requirements products?

A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.

Q: What is your terms of payment ?

A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.
If you have another question, please send us your RFQ.

Price

Price US$ 5 ~ 6.5 / Piece

Packaging & Shipping

- PackingEPE foam and cardboard boxes
- Packaging Size17.5 x 9 x 9 ( Centimeters)
- Package Weight 0.2 ( Kilograms )
- Delivery Lead Time7-15 days, can be negotiated
- Minimum Order 1 Piece
- Shipping Career
