Ipandee Telecom DC Power System Smart 48V Mppt Solar Charge Controller Regulator Telecommunication E

Add to Basket Share to :

Price

US$ 450

Min Order Quantity1 Box
Supply Ability6000PIECES PER MONTH
PortSHENZHEN
Delivery Lead Time60 days for OEM, 7 days for ready goods
Payment Terms 6
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen I-Panda Electronics Co.,Ltd
Membership Free member
Registration Date2013.10.30
Country/RegionChina
CityShenzhen
Contact Una Xie(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name IPANDEE
- Model Number IPANDE MOUNT CONTROLLER
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color White
- Related Keywords Solar Charge Controller

Description by Manufacturer

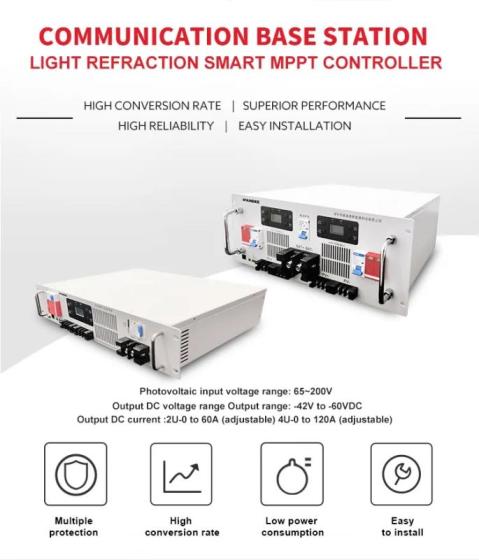

Ipandee Customize Dc 48V 60A 120A Rack Mount Mppt Solar Charge Controller 60 Amp For Telecom sites Project

Product model EMPPT4860 EMPPT48120 Category Controller with Maximum Power Point Tracking (MPPT) MPPT efficiency ≥99% Conversion efficiency ≤97% Cooling method Air cooling Input characteristics: Input operating voltage range 65~200VDC Start charging Vstart-pv Vbat+3V Low voltage protection Vlow-pv Vbat+2V Input protection voltage 200Vdc Input protection recovery voltage 195Vdc Rated input power 3400W 6800W Component access Support 3 channels of the same PVmodule access Support 6 channels of the same PV module access Charging characteristics: Output DC voltage range Output range：-42V～-60VDC（Factory default output：-56VDC） Battery management Can set output charging parameters and protection parameters output DC current 0~60A（Adjustable） 0~120A（Adjustable） Charging mode Fast charge (constant current), equalizing charge, floating charge. Default parameters Equalization: 56.8Vdc Float: 55.2Vdc Overvoltage:60Vdc Overvoltage Recovery: 56.8Vdc(panel adjustable) Communication monitoring: Communication RS485 bus/standard Modbus protocol Monitoring method Support computer monitoring, WIFI module remote monitoring, 4G remotemonitoring, Ethernet remote monitoring, etc. Protective function: PV input protection PV input overvoltage and reverse polarity protection, surge and lightning protection output protection Voltage regulation protection, battery reverse connection protection, battery dropprotection and overcharge protection General protection Heat dissipation over-temperature protection and over-temperature load reductionoperation, environmental over-temperature protection Other features: Installation Method cabinet-mounted Product dimension 2U 4U Product weight（kg） 5.85 9.18 Working environmental temperature -20℃~+50℃ Ingress Protection IP21 Altitude ≤3000m

Price

Price US$ 450 / Box

Packaging & Shipping

- Packing1PIECES PER BOX
- Packaging Size386 x 435 x 177 ( Centimeters)
- Delivery Lead Time60 days for OEM, 7 days for ready goods
- Minimum Order 1 Box
- Supply Ability6000PIECES PER MONTH
- Total quantity in Stock701 – 1000
- Delivery PortSHENZHEN
- Shipping Career

Product Image

Ipandee Telecom DC Power System Smart 48V Mppt Solar Charge Controller Regulator Telecommunication E

Solar Charge Controller Related Products

Company Profile

About Shenzhen I-Panda Electronics Co.,Ltd

Membership Free member
Registration Date2013.10.30
Country/RegionChina
CityShenzhen
Contact Una Xie(Ms.)

Found in July 2007, I-Panda is a high-tech professional manufacturer in China. We specialize in power supply and power inverter, UPS, solar energy and wind energy related products. It integrates researching and development, production, sales and service as a whole.As one of key national high-tech enterprise, I-Panda's main products includes car inverter, industrial inverter, UPS Uninterrupted Power Supply, solar/wind inverter, solar /wind controller, solar/wind generating system, PV system.

With strong technical strength, independent modern research and production base, advanced production facility, professional technical team and marketing personals. I-Panda operated strictly according to the ISO9001/2000 system. Purchasing of components, production of product, quality management, after-sales service all come into being a strict and standard management procedure. Our products have passed the international authoritative attestations of TUV, CE, FC, CB, CSA. And they are successfully used for power security service in national key projects , including high-speed rail, metro, CCTV mobile control room, 2010 Guangzhou Asian Games and 2011 Shenzhen Universiade. They are widely applied to the fields of electricity, fire fighting, transportation, finance, construction. Until now, Its products have been sold to worldwide like USA, Canada, Poland, Mexico, Russia, Ukraine, United Kingdom, France, Italy , Brazil, Dubai, Argentina, Australia , Vietnam, Pakistan, Philippine, Japan.

If you are interested in our products or would like to discuss OEM and ODM service with us, please feel free to contact us.
We wish to establish long-term business relationships with you.
Work with us, work with your trustable partner!
