Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition Used - Very Good
- Related Keywords Itw Formex Gk17bk

Description by Manufacturer

Product Description

ELECTRICAL INSULATION & BARRIER MATERIALS

FLAME RETARDANT UL 94 V-0 ELECTRICAL INSULATION AND MATERIALS INCLUDING POLYPROPYLENE INSULATION SHEETS

ITW Formex® polypropylene and polycarbonate flame retardant electrical insulating materials provide superior electric surge shielding in industrial and consumer electronic equipment. It is also useful as a thermal and electrical barrier material which is reflected in its UL 94V-0 Flame Class Rating. Formex™ heat insulating materials are available as sheets and rolls or and can be fabricated into a wide range of shapes to meet the flammability and dielectric needs of a variety of applications.

FORMEX™ N3 AND FORMEX™ CND

Halogen-Free
Multi-layer polycarbonate
UL 94V-0 Flame Class Rating
Excellent dielectric strength
UL Recognized File E121855

Formex™ N3 Data Sheet
Formex™ CND Data Sheet

FORMEX™ GL

UL 94V-0 Flame Class Rating
H20 Absorption 0.06%
Temperature Rating 125C
Dielectric Strength 1,880 Volts/mil 0.010"
UL Recognized File E121855

Formex™ GL Data Sheet

FORMEX™ GS

Flammability Rating UL 94 VTM-0
H20 Absorption 0.06%
Temperature Rating 115°C/239°F
Dielectric Strength 1,683 Volts/mil 0.010"
Static Dissipative ESD protection
UL Recognized File E121855

Formex™ GS Data Sheet

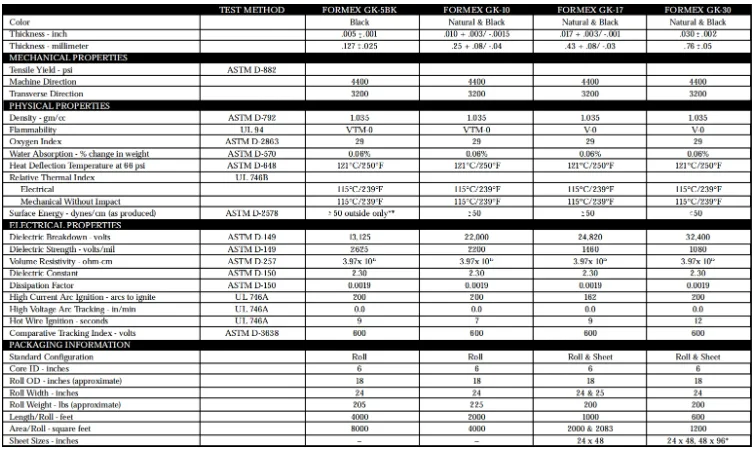

FORMEX™ GK

Flammability Rating UL 94 VTM-0
H20 Absorption 0.06%
Temperature Rating 115°C/239°F
Dielectric Strength 2,200 Volts/mil 0.005"
UL Recognized File E121855

Formex™ GK Data Sheet

PRODUCT ADVANTAGES & BENEFITS

	UL 94 V-0 Flame Class Rating	Meets global safety standards
	Non-Hygroscopic	Ultra low moisture absorption
	Chemical Resistance	Maintains mechanical/electrical properties
	Superior Dielectric Breakdown	Shields electricity from electric surge
	Excellent Score and Fold	Parts will not crack or split Ships flat to save freight costs
	Cost-Effective	Lower overall part cost with thinner materials
	Static Dissipative (Formex™ GS)	Dissipates static electrical charge to a ground

Cost-Effective

Lower overall part cost with thinner materials

GLOBAL STANDARDS

ITW Formex® polypropylene and polycarbonate electrical insulator materials meet the requirements of the following global standards:

Compliance

North America

UL
CSA
METI

Europe

Environmental

RoHS - Restriction of Hazardous Substances Directive (EU)
REACH - Registration, Evaluation, Authorization and Restriction of Chemical substances (EU)

Product Image
