JUK 1.5N Power Terminal Block , Power Distribution Terminal Block DIN Mount Type

Add to Basket Share to :

Payment Terms 1

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Wonke Electric CO.,Ltd.
Membership Free member
Registration Date2022.12.28
Country/RegionChina
CityYueqing
Contact Mrs. Zoey Zheng(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Electrical Terminal Block

Description by Manufacturer

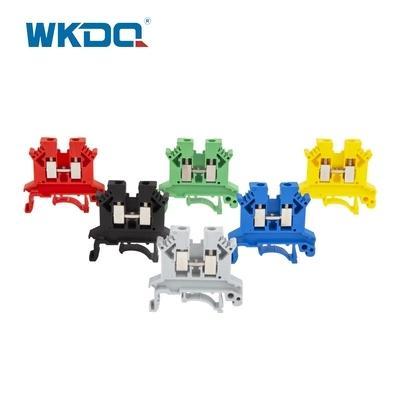

JUK 1.5N Anti Flaming DIN Rail Terminal Block

JUK 1.5N Electrical Terminal Block Universal Screw Connection DIN Mount Type

1. DESCRIPTION

The WonkeDQ JUK series Feed through Terminal Blocks offer savings in cost, space and time. While meeting the most stringent requirements: the screw connection can be excellent special in the wiring of large conductor cross sections.

The JUK universal screw terminal blocks have the typical features which are decisive for practical applications.

Plastic part made from flame retardants nylon PA66 with brass screw metal

By using bridge, we can connect multiple conductors easily and fast.

Corrosion-proof contact point.

Strong contact force and excellent connection.

Ease of handling and a reliable electrical connection.

Reduce the installation costs and speed the wiring.

Easy mounting.

With universal foot which can be installed on Din Rail NS 35.

Most control panels use series of terminal strips or terminal blocks to connect the control panel wiring to the field wiring. This kind of wire management function plays an important role in the terminal block, wire connector or electrical connector capabilities. And use of identification system, which can realize uniform identification.

2. Technical Parameters

Part No.	JUK 1.5N
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/42/4.2
Connection method	Screw connection
Body Material	Nylon PA66
Rated Voltage/Current	800V/24A
Cross section, solid/soft Cable	0.14-1.5 mm / 0.14-1.5 mm
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Package	4.32g/pc, 100PCS/BOX, 1500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001

3. Competitive Advantage

1. Reliable and good quality
2. Competitive price
3. Excellent Service: Quickly response
4. Full range products for selection: from 1.5mm2 to 240mm2
5. Flexible to design according to customers’ deman
