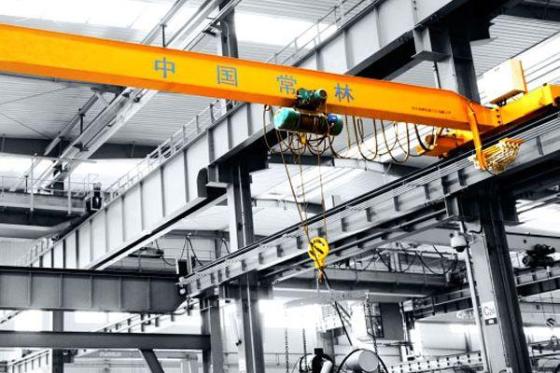

Product Name: LB Explosion-proof Single Girder Overhead Crane
Explosion-proof Grade: ExdⅡBT4/ExdⅡCT4
Work Duty: A4
Lifting Height: 6, 9, 12, 18, 24m
The design, manufacture, installation and operation of LB explosion-proof single girder overhead crane meet the requirement of JB/T 10219 standard. This crane is equipped with HB explosion-proof wire-rope electric hoist which is a light type equipment.
The design, manufacture, installation and operation of LB explosion-proof single girder overhead crane meet the requirement of JB/T 10219 standard. This explosion-proof single girder overhead crane is equipped with HB explosion-proof wire-rope electric hoist which is a light type equipment.

With explosion-proof grade of ExdIIBT4 or ExdIICT4, this explosion-proof single girder overhead crane can be used at workshops with initiation ability lower than IIB or IIC, and danger area 1 or 2 (according to GB3836.1-2000). The explosion-proof performance of motor and all electric equipment meets the requirement of GB3836.2-2000.

Lifting weight: 1-16 tons
Lifting height: 1-30 meters
Span: 7.5-24.5 meters
Working level: Intermediate
Working environment: -25℃~+40℃
Explosion-proof grade: IIB or IIC, Grade 3 or 4 explosion-proof


Electric Control Box

Pendant
