Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords Cryogenic Storage Tank

Description by Manufacturer

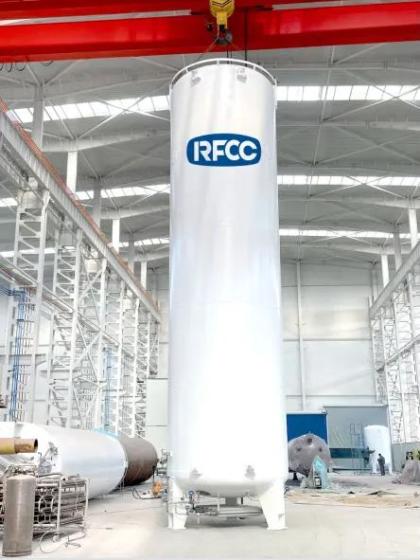

LNG Storage Tank - RFCC

LNG Storage Tank Main Technical Parameters:
Full Volume: 10,000L~50,000L
Work Pressure: 0.80MPa/1.60MPa/2.30MPa/3.45MPa
Filling Rate:90%
Inner Tank Design Temperature: -196℃
Shell Tank Design Temperature: -40℃~+50℃
Insulation: Vacuum with Multi-layer Wrapped
Stored Medium: LNG
Inner Tank Material: SS304 08 or SA240
Shell Tank Material: Q345R or SS304 08

Brief introduction:

This series of cryogenic storage tank is a superinsulated multi-layer storage tank, the inner vessel material is stainless steel SS30408, the outer vessel material is Q34SR or SS30408, can also be customized according to customers' requirements. It is mainly used for storing NG in liquid state. The product is widely used in urban peak gas supply, the main source of pipeline gas supply, automobile refueling fuel, chemical industry, heating and other industries, and has been favored and praised by customers for many years. praised by customers for many years.

Main Features:

The storage tank has a double-layer cylinder structure. The inner cylinder and piping are made of austenitic stainless steel, and the outer cylinder is made of carbon steel. The intermediate layer is wrapped with multi-layer thermal insulation paper and vacuumed. The customized stainless steel LNG cryogenic storage tank is equipped with various valves for operation, and the valves are installed around the bottom of the storage tank. The storage tank is equipped with pressure gauge and level gauge to monitor the pressure and level in the tank. The horizontal liquid cryogenic tank is compact in structure and occupies a small space. The storage tank and compressor are composed of sealed parts, which can supply liquid or gas without any power, ensuring the purity of the discharged liquid or gas. With pressure conditioning installation, the user can adjust the conditioning valve T according to the demand to discharge the liquid at the required pressure. The pressure is stable and the operation is convenient. The storage tank is equipped with a liquid filling connector for the tank car, which can send liquid to the evaporator and tank car.

LNG Storage Tank Main Technical Parameters:

Full Volume: 10,000L~50,000L

Work Pressure: 0.80MPa/1.60MPa/2.30MPa/3.45MPa

Filling Rate:90%
Inner Tank Design Temperature: -196℃
Shell Tank Design Temperature: -40℃~+50℃
Insulation: Vacuum with Multi-layer Wrapped
Stored Medium: LNG

Inner Tank Material: SS304 08 or SA240
Shell Tank Material: Q345R or SS304 08

Qualification Certification:

ASME VIII DIV.1, CE PED/TPED, Russia EAC, China GB, ISO9001:2015, ISO13485:2016, ISO14001:2015, ISO45001:2018

You can find more information on our web, so please take a look.

Packaging & Shipping

- Delivery Lead Time30-60days
- Supply Ability40000pieces/year
- Shipping Career

Product Image

Cryogenic Storage Tank Related Products

Horizontal Cryogenic Storage Tank - RFCC

Company Profile

About Hebei Runfeng Low Temperature Equipment Co.,Ltd

Membership Free member
Registration Date2023.05.25
Country/RegionChina
CityHengshui
Contact liuchang(Mr.)

Hebei Runfeng Low Temperature Equipment Co., Ltd. was established in October 2012. It is the backbone member of Hebei Runfeng Enterprise Group. Runfeng is an emerging enterprise specializing in the design, manufacture, R&D and corresponding technical services of cryogenic pressure vessels.

We have built strategic cooperation with the "Institute of Refrigeration and Cryogenics" of Zhejiang University, whose cryogenic major is a national key discipline in China.

Our company's leading products include: Cryogenic cylinders (80L~1000L), Microbulk tanks, Cryogenic stationary & transport tanks, ISO T75 tanks, Semi-trailers and other customized pressure vessels. Our annual production capacity is about 30,000 pcs cryogenic cylinders and 7,000 pcs of cryogenic tanks. Annual output value over 1billion CNY.

Hebei Runfeng Low Temperature Equipment Co., Ltd. is one of the members of Hebei Runfeng enterprise group. It is a professional enterprise engaged in the design, manufacturing, R & Dand corresponding technical services of low-temperature pressure vessels.

The company's leading products are: production, sales, research and development, design; Pressure vessels (D1, D2, B3); Gas equipment, gas pipeline, gasification pressure regulating skid mounted equipment. It has an annual production capacity of 40000 LNG cylinders and an output value of more than 100 million yuan for other pressure vessels.
