Product Attributes

- Brand Name Chanyo
- Model Number GSY series
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Blue
- Theory Temperature Controller
- Usage Laboratory
- Temperature range 1 -80 to 200 degree
- Temperature range 2 -40 to 200 degree
- Temperature range 3 -30 to 200 degree
- Reactor volume 5L to 100L
- Temperature control accuracy +/-1degree
- Overall power 2.9kW to 14kW
- Heating power 2kW to 6kW
- Cooling capacity 2208W to 32536W
- Refrigerant R404
- Temperature sensor PT100
- Circulating pump power 100W to 370W
- Circulating pump lift 4 to 25m
- Related Keywords Thermostat, Heating circulator, Heating bath, TCU, Temperature controller

Description by Manufacturer

High and low temperature circulator is a device that provides external cold and heat sources, consisting of a refrigeration unit, a heating unit, a circulation system, and a control system. It is mainly used in reactors, semiconductors, new energy, and other places that require precise temperature control. It is especially suitable for chemical reaction experiments with rapid heat release and heat absorption.

Features

- Wide working temperature range: -80~200℃.

- Fully closed circulation system to extend the service life of the heat transfer fluid.

- Famous brand fully enclosed compressor, low noise, high efficiency, ensuring long-term stable operation.

- External PT100 temperature sensor can be connected.

- Precooling system, refrigeration system and heating system can be used together.

- The evaporator adopts a fully brazed plate heat exchanger with small size and high heat exchange efficiency.

- Liquid level display function, real-time monitoring of liquid level.

- Leakage, overheating, overcurrent protection, high safety.

Technical data

Model	GSY-5/20 ExGSY-5/20	GSY-10/30 ExGSY-10/30	GSY-10/40 ExGSY-10/40	GSY-10/80 ExGSY-10/80	GSY-20/30 ExGSY-20/30	GSY-20/40 ExGSY-20/40	GSY-20/80 ExGSY-20/80
Max. reactor volume can be matched	5L	10L			20L
Working temperature range	-20~200℃	-30~200℃	-40~200℃	-80~200℃	-30~200℃	-40~200℃	-80~200℃
Ambient temperature	5~35℃
Relative humidity	<=70%
Temperature control accuracy	+/-1℃
Power supply	Single plase 220V/50Hz
Overall power	2900W	4570W	4600W	7510W	4570W	5400W	10510W
Heating power	2000W	3000W					4500W
Compressor power	736W	1103W	1470W	2205W	1470W	2205W	4410W
Cooling capacity	2208W	3486W	4648W	6972W	4648W	6972W	13944W
Circulating pump power	100W
Circulating pump lift	4-6m
Circulating pump flow rate	20-40L/min
Circulating pump pressure	<=0.4MPa
Safety function	Self-diagnosis, user authority management, emergency stop switch, leakage overload protector; Compressor protection, delay protection, over-temperature protection
External input	External sensor port
Refrigerant	R404
Temperature sensor	PT100
Dimensions	640570 870mm	600640 890mm		804703 900mm	630670 990mm		950650 1100mm
Net weight	105KG			170KG	104KG		160KG

Model	GSY-30/30 ExGSY-30/30	GSY-30/40 ExGSY-30/40	GSY-30/80 ExGSY-30/80	GSY-50/30 ExGSY-50/30	GSY-50/40 ExGSY-50/40	GSY-50/80 ExGSY-50/80
Max. reactor volume can be matched	30L			50L
Working temperature range	-30~200℃	-40~200℃	-80~200℃	-30~200℃	-40~200℃	-80~200℃
Ambient temperature	5~35℃
Relative humidity	<=70%
Temperature control accuracy	+/-1℃
Power supply	Three phase 380V/50Hz
Overall power	6500W	6900W	9100W	9200W	10700W	14000W
Heating power	4500W			6000W
Compressor power	1838W	2205W	4410W	2948W	4410W	7360W
Cooling capacity	4648W	6972W	13944W	8844W	13944W	32536W
Circulating pump power	100W			250W		280W
Circulating pump lift	4-6m	10-12m		15m
Circulating pump flow rate	20-40L/min			30L/min
Circulating pump pressure	<=0.4MPa
Safety function	Self-diagnosis, user authority management, emergency stop switch, leakage overload protector; Compressor protection, delay protection, over-temperature protection
External input	External sensor port
Refrigerant	R404
Temperature sensor	PT100
Dimensions	630670 990mm		730930 1030mm	680750 1120mm		8301365 1137mm
Net weight	120KG		190KG	140KG		327KG

Price

Price US$ \ 1520 ~ 9040 / Unit

Packaging & Shipping

- PackingPlywood case
- Packaging Size640 x 570 x 870 ( Millimeters)
- Package Weight 105 ( Kilograms )
- Delivery Lead TimeLead time 15-20 working days
- Minimum Order 1 Unit
- Supply Ability100 units per month
- Delivery PortAny port in China mainland
- HS Code8419899090
- Shipping Career

Product Image

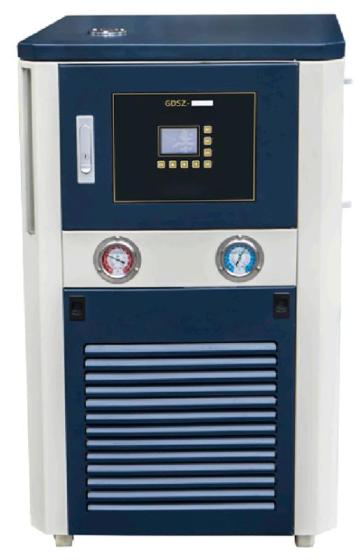

Lab High Precision Low-temperature Thermostatic Bath, Hermetic Refrigeration Heating Circulator
