Description by Manufacturer

Products Description

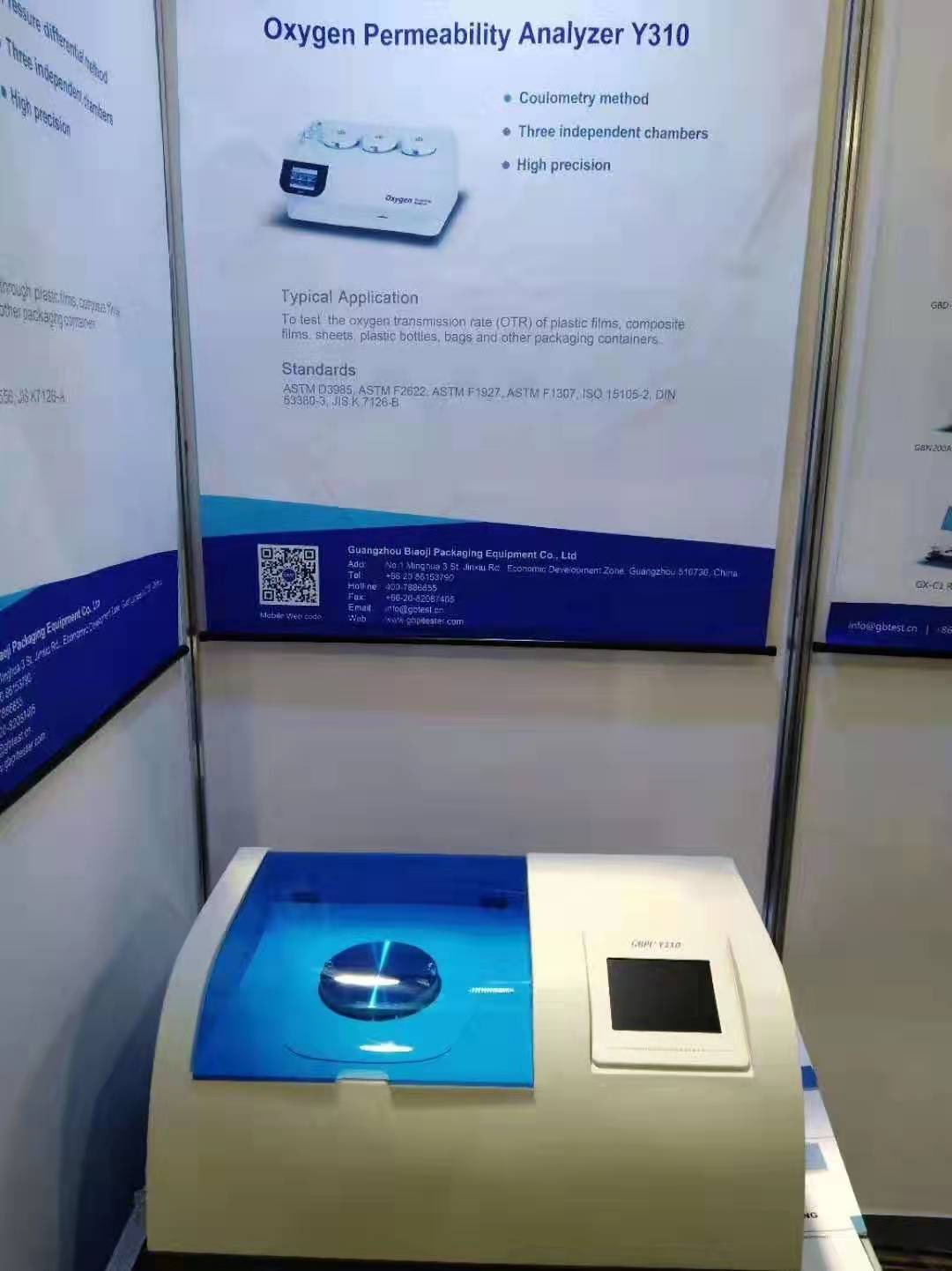

Y310 2.0 Oxygen Permeability Analyzer

Application

Oxygen Permeability Analyzer is to test the oxygen transmission rate (OTR) of films or sheets materials.
Standard
 ASTM D3985， ASTM F2622 ， ASTM F1927， ASTM F1307， ISO 15105-2， DIN 53380-3， JIS K-7126-B

Applied to:

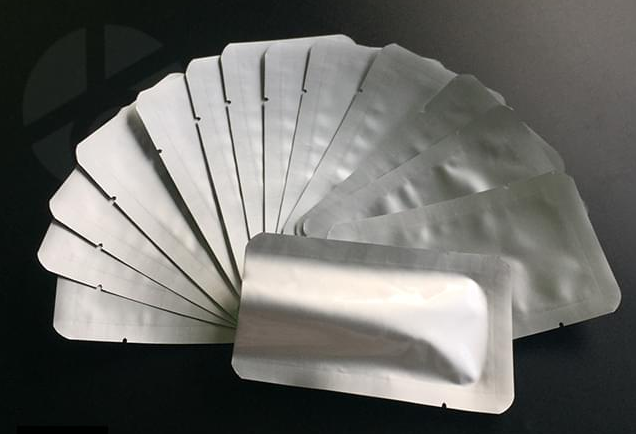

1)Plastic film, composite film, aluminum foil, aluminized film,etc;
2)Sheet, panel, rubber, ceramics,etc;
3)Packaging containers, such as:glass, bottle, cans, boxes, etc;
4)Expanding application: solar panel, LCD film, medical patch, etc.

Specification

Item	Technical parameters
Test range	0.02~16500 cm3/m2·24h（Film）With mask can be 260000 cm3/m2·24h
Test Accuracy	0.001 cm3/m2·24h
Temperature range	15~45℃(5~50℃optional ）
Temperature accuracy	±0.1℃
Humidity range	30~90%RH，100%RH
Humidity accuracy	±1%RH
Test area	50.24 cm2
Sample size	Φ100 mm
Sample thickness	≤3mm
Number of samples	1~3 pieces
Carrier Gas pressure	0.1MPa~0.2MPa
Carrier gas port	1/8metal gas pipe
Instrument size	700×560×370mm
Weight	100kg
Power	750W
Power supply	AC 220V，50Hz

Features

Accurate and reliable data
With The State Certificate for Gradation of the certified Reference Materials andLicence for Manufacturing Measuring Instruments of the state Reference Materials（GBW(E)130497/8）of Oxygen permeability analyzer approved and issued by General Administration of Quality Supervision, Inspection and Quarantine of the P.R.C. Adopting state reference materials to calibrate and verify the instruments, ensure the accuracy, universality and authority of the test data.


Simple operation
1)LCD and windows instrument interface show testing data and working status in real time; mouse operation is simple and convenient.
2)Professional software with simple interface, easy to use and convenient to set test process.
3)Fully-auto operation, judge and stop automatically.
4)Real time curves display of transmission, oxygen concentration, temperature and humidity, curves can be easily zoomed and moved. The curves with conceal function, support query function for background data.
5)Professional test report; can be exported as PDF.


Advanced technology
1)Temperature control: International advanced electromagnetic technology, program controlled, auto heating and cooling; and no need of external accessories. Precision: 0.1℃.
2)Humidity control: Dual gas flow method(dry gas and humid gas), with broad range, high precision (1%RH) and stable flow.
3)Carrying cutting-edge ARM controlling system, can run independently without computer.

High efficiency
1)Data is independent in three test chambers: Each chamber test independently, three same/different samples can be test at the same time and output three separate test reports, which improve the test efficiency, one set is worth three sets.
2)Measurement precise up to 0.001 cm3/（m2•24h）, can test high barrier materials, such as aluminum foil.
3)By adding package-testing accessories, can test oxygen transmission of various containers such as bag, bottle, can and bowl.
4)By adding adaptive accessory, can expand upper limit of test range to 260000 cm3/m2•24h.

Calibration & Certification
The instrument supports two methods of reference materials and standard gas to certificate and calibrate; Operation is simple, user only need use certified reference materials for normal testing, and then input the test result into the instrument interface to complete calibration.


Reliable and easy-maintenance instrument
1)Imported oxygen sensor, with high precise and good performance, can work for a long time.
2)Sensor over-range auto protection.
3)Function modularization, easy to maintain.

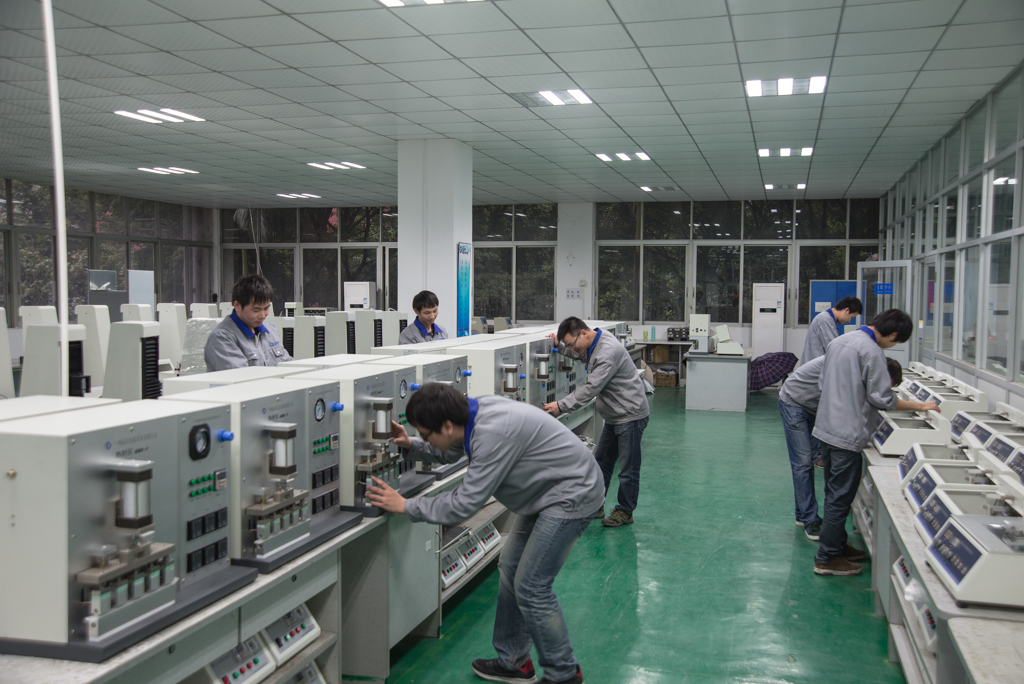

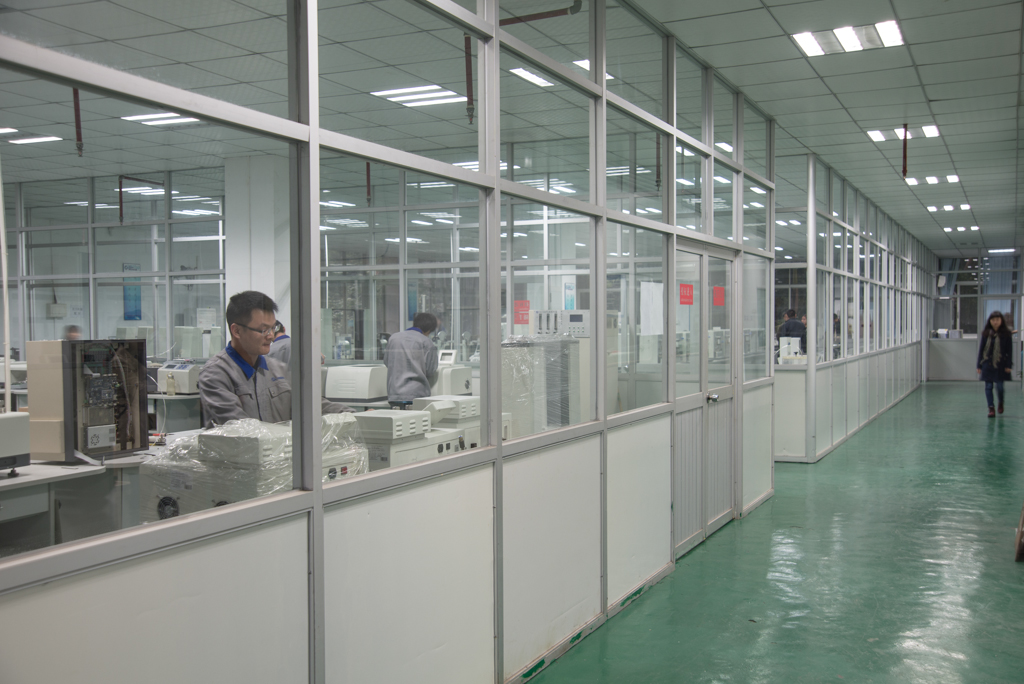

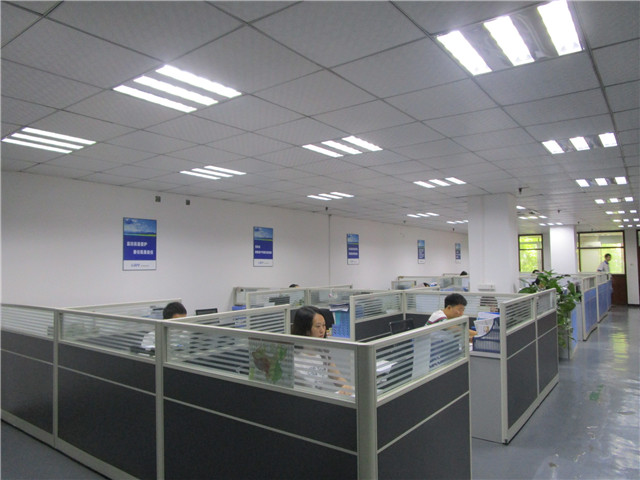

Company Profile

Guangzhou Biaoji Packaging Equipment Co., Ltd.

GBPI is professional manufacturer focuse on devepling and producing packaging material test instruments such as Water Vapor permeability Analyzer, Oxygen Permeability Tester, Gas Pemeation Analyzer, Universal Tensiler Measure Tester, Cofficient of Friction Tester, Heat Seal Tester and so on Overall Programme of Packaging Test Solution. Founded in 2002, the company has recived IOS9001 certification and recognized as high-tsch enterprise and software enterprise by gained awards for technological progress.

Exhibition

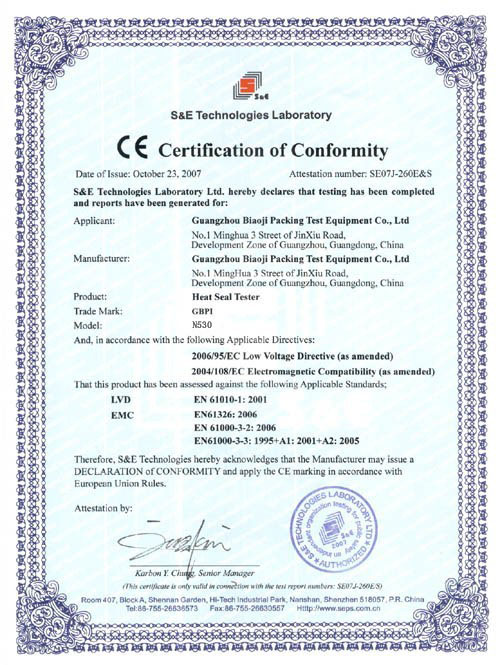

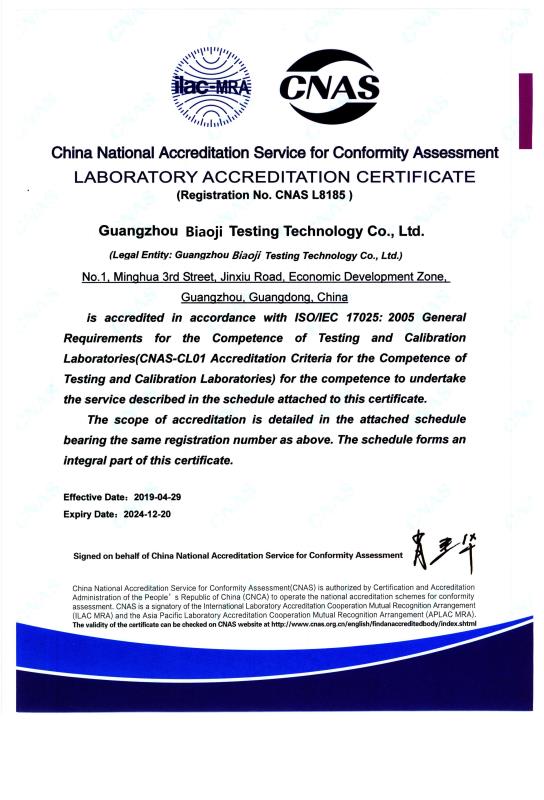

Certifications

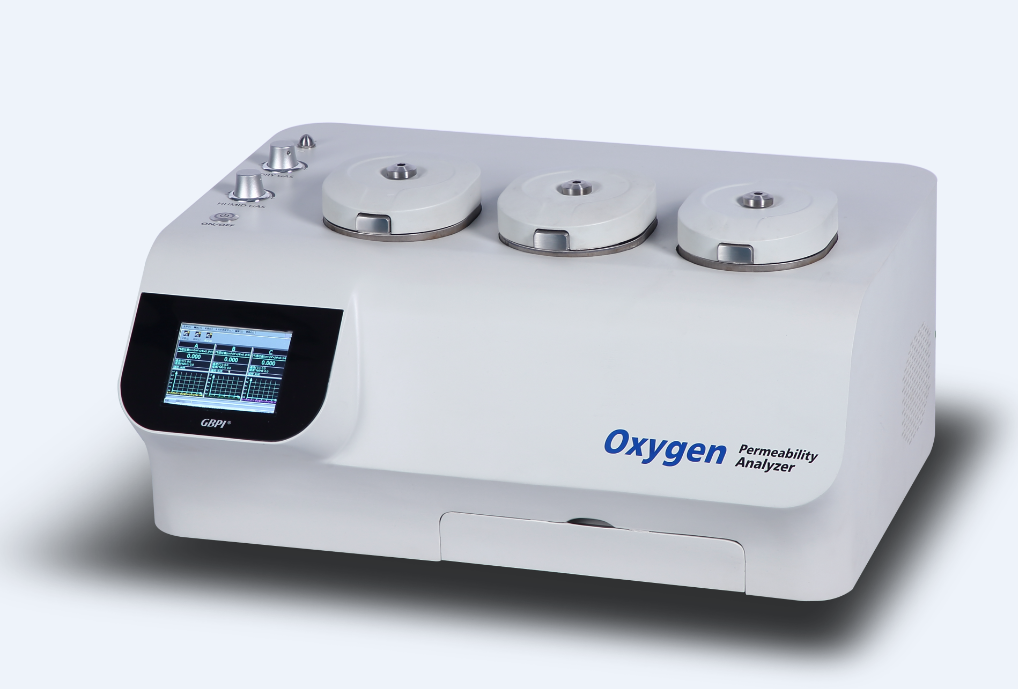

Product Image
