Product Attributes

- Brand Name Vision Lasertechnik GmbH
- Place of Origin Germany
- Related Keywords laser welding machine, laser welding system, laser welder, laser welding equipment

Description by Manufacturer

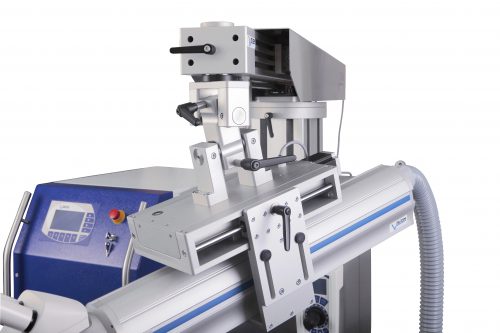

LWI V Mobile-FLEXX - When flexibility counts

If you want to be prepared for everything, the Mobile Flexx should be with you. All functions included in our workstations as Unixx III or T-base are available here too. So you have full microprocessor control for all movements and the full synchronization of laser and movements.

Even teach in, marking and 3-PCD are included in this unit. Equally to all of our workstations, the 4 axes can be upgraded to be used with a high precision rotation stage or even a wire feeder. Together with the strong platforn, the long distance motorized X axis allows for working on molds of size 2000 * 2000 mm.

So it doesn’t matter whether you work inside the shop on a table or outside on huge molds

– the Mobile Flexx will be the professional solution to get your job done.

Highlights

CAN-Step: The intelligent axis control

Precisely controls axis movements. This extends manual welding by its sophisticated automatic and programable functions. Touchscreen and Joystick terminals directly in your workspace provide a unique, simple control concept. Thanks to the completely integrated hardware, a separate computer is not needed.

PDS – Pulse Distance Synchronization

Enables the handling of complicated geometries in four axis without complex programming. A small number of support points are hit once on the contour of the work piece in advance. The user can subsequently move the programmed welding line forward and backward using the joystick and can also shift its position by offsetting the start point.

„Teach in“ programming

You can process circular type contours by using the PCD function with the XY axis. The circular path is precisely defined through the teaching of only three support points. You do not need to know the center or the diameter; the position on the work piece is optional. You can move along the programmed course either forward or backward by using the joystick.

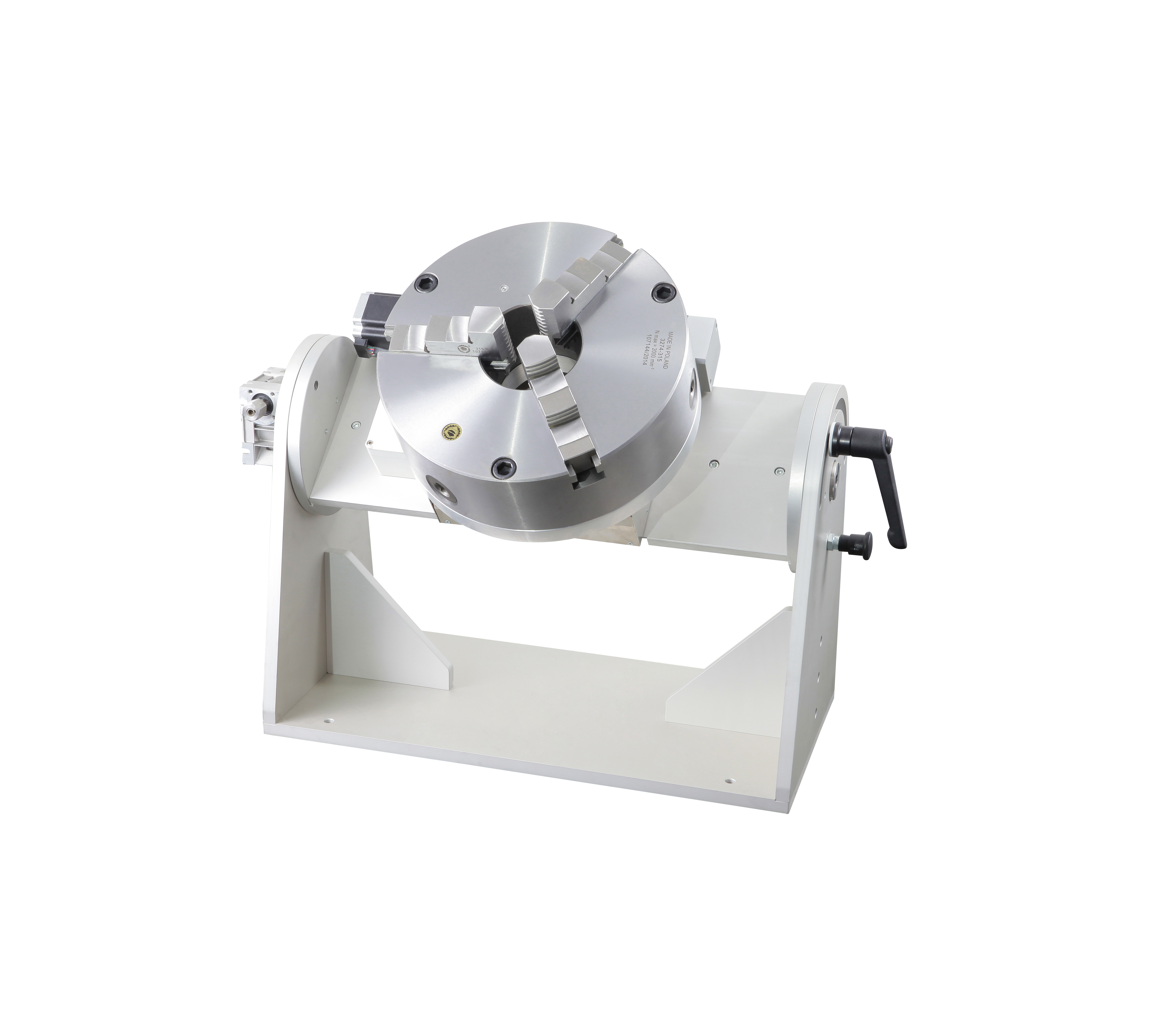

Combinable with a rotating device

Specially developed turning units increase the user value of your workstation. They incorporate all functions of CAN-Step control, available at the touch of a button, including pulse synchronization and „Teach in“ programming. Additional features: • Swivel-mounted • Free implementation up to Ø40 mm • different chuck types, chucking range up to Ø 160 mm.

Please refer to this page - http://korea.vision-worldwide.de/lwi-v-mobileflexx/, and you will be able to get more information in detail.
