Product descriptions from the supplier
Overview
Linux SOM System Hardware Desgin Embedded Developer

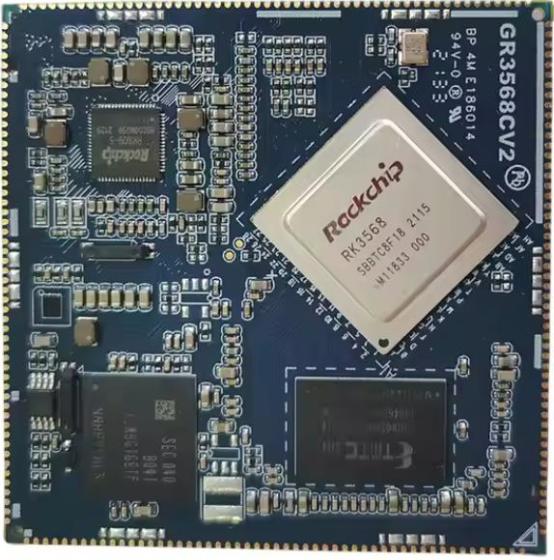

G3568 system on module is based on Rockchip RK3568 (64bit quad core) platform, which is designed by Shenzhen Graperain Technology Co., Ltd. G3568 system on module take Rockchip RK3568 chip, 64bits quad core CPU, frequency up to 2.0GHz. Cortex-A55 provides up to 100% performance improvement compared to the previous A15/A17 core design.
G3568 System on Module Features:
Best Size: 55mm x 55mm x 3mm
RK809 Power Manage Design
Kinds of bands eMMC support, 8GB as default
LPDDR4, 2GB as default, 4GB customized, max 8GB
Support power sleep and wake-up
Android 11, Linux, Ubuntu and Debian OS
Dual gigabit
Ethernet ports
G3568 System on Module Features:
Parameters |
|
Appearance |
Stamp hole |
Core board dimensions |
55mm*55mm*3mm |
Pin pitch |
1.1mm |
Pin pad dimensions |
1.3mm*0.7mm |
Pin quantity |
206 PIN |
Layer |
8 layer |
Linux SOM Embedded System Hardware Desgin Embedded System Developer
System Configuration |
|
CPU |
Rockchip RK3568 |
Frequency |
Quad-core 2.0GHz |
RAM |
2G(Default), 2GB/8GB(Optional) |
Flash |
8GB(Default)/16GB emmc (Optional) |
Power IC |
RK809 |
Ethernet |
RTL8211F, dual gigabit Ethernet PHY |
Linux SOM Embedded System Hardware Desgin Embedded System Developer
Interface parameters |
|
LCD |
MIPI interface, eDP output |
Touch |
Capacitive screen, resistive screen |
Audio |
IIS/PCM, supports record and play |
SD card |
2 Channel SDIO output channel |
Emmc |
Onboard emmc, no extra pin leaded |
Ethernet |
RTL8211F, the Gigabit Ethernet PHY |
USB host |
2 Channel HOST2.0, 1 Channel USB3.0 |
USB OTG |
1 Channel OTG3.0 |
UART |
10 Channel serial ports, Flow control |
PWM |
12 Channel PWM output |
IIC |
6 Channel IIC output |
SPI |
3 Channel SPI output |
ADC |
5 Channel ADC output |
Camera |
1 Channel BT656/BT601, 1 Channel MIPI output |
H DMI |
HD audio and video output interface, audio and video synchronization output |
eDP |
YES |
PCIE |
PCIe3.0 1x2/2x1 Lane,PCIe2.1 x1 |
SATA |
3 Channel SATA3.0 |
CAN |
3 Channel CAN |
