Loading Device with Rubber Cushion Pad Absorbing Shock to Coil Steel

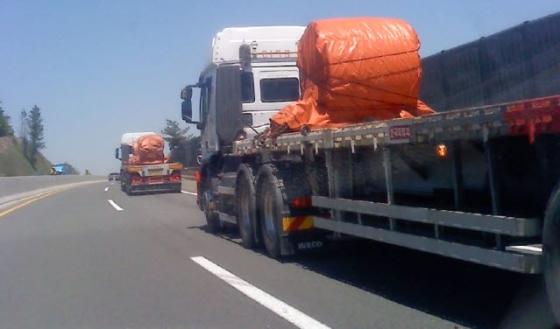

Coil Steel Transportation on the road

Conventional transportation systems for coil steel are air cushion system at the trucks, specific functions absorbing the shock to the coil steel with wood or rubber plate, etc. They can not absorb the force and repulsion generated when it is transported and especially in case of emergency like a sudden stop or sharp curve. So it is exposed to the danger all the time. And steel coil may be damaged
(plating layer black spot, caused appearance damage).

K2Jointkorea Company, recently, developed own unique system,“Rubber Cushion Pad for Steel Coil’s Transport“.It is designed to absorb the forces generated when it is transported on the basis of safety.


｜Rubber Cushion Pad for Steel Coil’s Transport｜

l Specifications and Components l


Coil steel is difficult to handle as it weighs at least 10 tons and is in a spherical form that may result in a safety accident. When loading such coils on vehicle or in warehouse, it is normal to adopt bearing using angle, wood, rubber plate, etc. This is accompanied by the risk of safety accident as well as damage to raw material.(plating layer black spot, caused appearance damage)

Our newly developed and patented product, “Rubber Cushion Pad for Steel Coil’s Transport“, is aiming at preventing such damage to raw material or safety accident caused by the conventional transportation system. Domestic tests had been conducted to the sample vehicles of domestic steel manufacturer/transportation company from Aug. 2009 until Oct. 2010 while overseas tests to the local vehicles by the team consisting of Malaysia POSCO MKPC Branch, POSCO headquarter, Hyosung, and K2Jointkorea in September 2010. In those tests, it was approved as a differentiated and best Rubber Cushion Pad for Steel Coils Transportation. Since they were delivered to POSCO, they are now widely used in coil steel manufacturer&transportation companies. They were also delivered to Indonesia BNX Korea Branch in May 2011 and Hanoi Vietnam in Jun. 2011.


Product feature :
It is structured in such a manner of wrapping the coil steel with especially compounded elastomeric pad. Its contact area is plane to guarantee high safety. It basically minimizes the damage to the product. Designed to accommodate the hardness with high elastomeric pad horizontally and vertically, it is very stable and safe.
The loading surface is in the form of rail that allows attachment/detachment of coil. It can be adjusted easily depending on the external diameter of steel coil in consideration of convenience and safety. It is assessed as semi-permanent product in durability.

Applicable range :
As a bearing for steel coil when loading or unloading on ship, trailer, train, container, etc.



｜Specifications and Components｜

Steel coil product damage to transportation safety pedestal
A.Specification (Steel coil size adjustable)
1. Model No. : JK-CSP-3000Kn/REP "A" type)
⦁ 4 rubber pads for one steel coil
⦁ handles 10 tons up to 100 tons based on the coil’s external diameter 2,000 mm more or less
⦁ weighs 100kg ~ 110kg


Fixed separation cavity ("A" Type)

 A. Patent name :

※ Highly elastic rubber pad professional production company only one patented  products.

B.Specification (lmprove products safety device)
1. Model No. : JK-CSP-3000Kn/REP ("B" TYPE)
⦁ 4 rubber pads for one steel coil
⦁ handles 10 tons up to 150 tons based on the  coil’s external diameter 2000 mm more or less
⦁ weighs 100kg~110kg

Fixed separation cavity ("B"  Rail type)

Advanceproof pad equipped with safety and accident prevention products.

B. Patent name :

※ Warehouse ships contaainer transportation vehicle loaded safety device Only One patented products.


Rubber Pad Load Capacity
MAIN. : No. Steel Coil Full Size.
SLS Permanent Vertical Load (Kn)
SLS Total Load (Kn)
ULS Vertical Load (Kn)


l Inspection Report (Field Test) Conducted by POSCO in Korea and Malaysia l


l Inspection Report (Field Test) conducted by POSCO in Korea and Malaysia l


｜Specifications and Components｜


l Coil Steel Loading Safety Device l

Conventional transportation systems for coil steel are the methods of placing angle, wood, rubber plates, etc. on the bottom of vehicle‘s loading surface and putting coil on those plate and commonly used throughout the world. In this case, a fixing device is used to fasten the product firmly for the safety reason, which normally cause damage to the coil steel as the steel coil’s contact area is not flat. Also with another circumstances such as friction, vibration, shock, etc. during the coil loading and transportation, the coils are tsupplied to the customers in the condition that the coil’s surface is damaged.
As a raw material, the coil steel is used diversely as plate for vehicle, electronic product, construction materials, etc. If such steel coils damaged during the transportation are used for the production, it may accelerate corrosion compared with the normal area.
Under these circumstances, manufacturers, transportation companies, and steel coil suppliers are seeking the solution of such problem. In case of using wood bearing, when the vehicle starts or stops suddenly in an emergency situation or on he sharp curve, instantaneous force of more than twice the weight of steel coil is delivered to the fixing device due to the phenomenon that loaded surface is being pushed.
Accordingly safety accidents may happen and resulting critical damages to fixing device. There is no other safety device when safety accidents happen to fixing device throughout the world, which may threaten the life of cargo owner or others.
We have developed “Stop Rubber Paper Pad” which is the safety device preventing being pushed due to steel coil’s weight using the same method of being mounted on the bottom of vehicle’s loading surface (Rubber Cushion Pad for Coils Transportation).
It secures further safety.

Production
Bridge Bearing, Bridge Expansion Joints, Rubber Cushion Pad for Steel Coil’s Transport, Industrial Special Rubber Manufacturers.


Domestic and international tested exhibited photos

 l Inspection Report (Field Test) conducted by POSCO in Korea and Malaysia l


2010. 10 : Passed oversea's test in Malaysia (by Posco, Hyosung, K2 Joint Korea)

Malaysia Petronas twin towers viewed from the hotel


Rubber Cushion Pad for Steel Coil’s Transport


Rubber Cusion Pad for Coil Steel Transportation


Plating layer black spot, caused appearance damage
(Malaysia manufacturers plating damaged verify scene)


Completed coil loading (Malaysia)


Coil base the installation (Malaysia)


KINTEX Exhibition Photos

2012. 09 : Exhibited in KINTEX  (Korea Nonferrous Metal Industry Expo 2012): Skids for Steel Coil


"Loading Device with Rubber Cushion Pad Absorbing Shock to Coil Steel"
Patent No. : 10-0994884

※Highly elastic rubber pad professional production company only patented  products.

United Arab Emirates

THE BIG5 EXHIBITOR in Dubai Photos

Jafza AT THE BIG 5

2013. 09 : Participated in Big 5 conference in Dubai
(International Building & Construction Show)
Items: Skid for Preventing Coil Steel's Black Dots, Sliding Elastomeric Bridge Bearing

Saudi Arabia Exhibition hall


Russia Exhibition hall


Jafza  Jebel Ali Free Zone
K2jointkorea  company exhibition hall


Dubai exhibition some nice building photo

The way The nearest fair hotel ...

Dubai Burl Al Arab Hotel  Photos


Burj Khalifa in Dubai Big5 exhibition looked back door


Hotel on the way Burj Khalifa

Steel Coil is highly elastic rubber pads patented product
k2jointkorea co.'s technique can not be imitated.
