Luftmy HPD05 Infrared PM2.5 Sensor Module PM2.5 Detector Module Air Quality Dust Sensor LCD

Add to Basket Share to :

Payment Terms 1

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Guangzhou Luftmy Intelligence Technology Co., Ltd
Membership Free member
Registration Date2020.05.08
Country/RegionChina
CityGuangzhou
Contact DAI MO(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.DAI MO

Guangzhou Luftmy Intelligence Technology Co., Ltd

* Buying Product

Category : Sensors

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords Infrared PM2.5 Sensor Module, PM2.5 Detector Modul, Air Quality Dust Sen

Description by Manufacturer

HPD05红外PM2.5传感器模块

牌：	鲁米
模型：	HPD05
国家：	中国
信号输出：	PWM IIC
检测原理：	红外光散射
检测范围：	0.5〜10微米
工作电流：	<100mA
待机电流：	<0.1mA
储存条件：	-20〜60℃，0〜95％相对湿度

HPD05红外PM2.5传感器模块产品详细信息

1.模块清单

HPD05模块

2.产品概述

HPD05 PM2.5传感器模块采用光散射原理来测量空气中的灰尘浓度，该模块内置红外发射器和高灵敏度光电接收传感器，红外发射器发出光，并且该光遇上灰尘会产生苏格兰光，光电接收传感器检测到的苏格兰光强度反映了空气中的灰尘浓度，HPD05有两种输出电流浓度数据的方法，一种是PWM信号（信号的宽度为值，1ms = 1ug / m3），另一种是IIC信号（单位为ug / m3）。

HPD05可用于空气滤清器，具有净化功能的空调，新鲜空气系统和空气质量检测设备。

3.检测原理

检测原理

根据光散射原理，发射器发射光，并且光与尘埃相遇而产生苏格兰光，高灵敏度光电接收传感器检测到苏格兰光的强度，然后输出强度信号，电流与大小成正比。信号强度的高低，电流经过放大器放大并由CPU校准，最后输出数字PWM信号或粉尘浓度的IIC数据。

4.性能参数

1）特点

连接器CON2引脚说明

2）生活

光源寿命：连续通电5年以上。

3）光电特性

光电特性

4）信号输出

a1。PWM信号输出（对应型号HPD051Axxx）：

信号输出

低脉冲时间与粉尘浓度的关系：1ms = 1ug / m3

P1引脚输出的脉冲宽度为粉尘浓度的平均值（响应速度低，波动小，稳定性好）

P2引脚输出的脉冲宽度为粉尘浓度的瞬时值（响应速度较快，波动较大）

a2。PWM信号输出（对应型号HPD051Cxxx）：

低脉冲时间与粉尘浓度之间的关系

低脉冲时间与粉尘浓度之间的关系：

粉尘浓度= TL / TA * 4000（ug / m3）------（TA通常为30秒）

P1引脚输出的脉冲宽度为粉尘浓度的平均值（响应速度低，波动小，稳定性好）

P2引脚输出的脉冲宽度为粉尘浓度的瞬时值（响应速度较快，波动较大）

b。IIC信号输出：

通过IIC读取HPD05的寄存器，外部CPU可以获得灰尘浓度的数据值。通过IIC接口直接读取HPD05内部寄存器，主机可以获得灰尘浓度的值。

b-1 IIC通信接口：

主机产生八个时钟脉冲以发送8位数据，在SCL的第八个下降沿时，器件将SDA更改为输入引脚，并在SCL的第九个脉冲时读取SDA输入值。在SCL的第9个脉冲之后，如果下一个接收未准备好，则数据接收器将拉低SCL以暂停下一个字节的传输。当接收器释放SCL总线时，数据传输继续。

停止传输信号后，IIC总线处于空闲状态

IIC总线协议定义了两种状态：开始传输（S）和停止传输（P）。开始传输信号：当SCL为高电平时，从高电压到低电压有一个下降的变化

SDA线上的电压。停止传输信号：当SCL为高电平时，SDA线上的电压从低到高都有上升的变化。

信号S或P由主机生成，启动传输信号生成后IIC总线繁忙；停止传输信号后，IIC总线处于空闲状态。

停止传输信号后，IIC总线处于空闲状态

请参阅有关IIC通信详细信息的相关信息。

b-2传感器IIC接口

读取HPD05寄存器的数据时，通讯波形如下：

HPD05 传感器模块的从机地址为0x9A ，IIC的最大时钟速度为100K bps。

b-2传感器IIC接口

b-3 HPD05寄存器

5.生产者型号：

6.产品尺寸：

（1）HPD051xxCH（单位：mm）

产品尺寸

7.注意事项

（1）。HPD05使用电阻器的焦耳加热，会在外壳的内部产生上升气流，因此传感器模块的安装保持垂直，误差小于正负3度。传感器的入口朝下，出口朝上（注：进气口的加热电阻位于下端，以确保进气口和出风口的流动）

（2）。如果套管内部的上升气流影响HPD05的功能，请考虑传感器周围的气流。

（3）。HPD05安装在设备内部，前窗需要装有黑色海绵（靠近传感器，前窗表面不能粘胶），以确保其处于黑暗环境中，减少干扰光的影响。

（4）．HPD05请勿在有机气体和易燃气体的环境中使用。

（5）。清洁镜片表面时，请勿使用有机剂和清洁剂。并且请不要擦伤镜片表面，避免坚硬的物体铲起。可以用蘸有清水的棉签清洁镜头表面，然后再用棉签擦干。不要使用酒精。

（6）。电源电压波动必须控制在50mV以下。

（7）。本产品由于其橡胶外壳而包含导电材料，为了安全起见，建议使用隔离式电源，非隔离式电源需要得到良好的保护。

Product Image

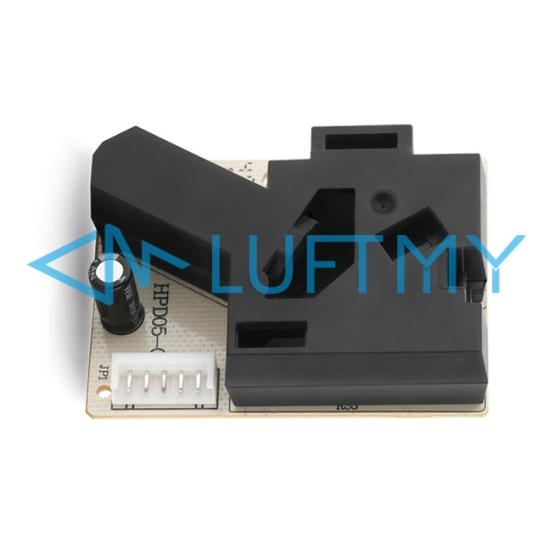

Luftmy HPD05 Infrared PM2.5 Sensor Module PM2.5 Detector Module Air Quality Dust Sensor LCD

Infrared PM2.5 Sensor Module Related Products

Luftmy GDS06 Infrared PM2.5 Sensor Module PM2.5 Detector Module Air Quality Dust Sensor

Download Product Brochure

V2.3.pdf (7.62 Mb)

Company Profile

About Guangzhou Luftmy Intelligence Technology Co., Ltd

Membership Free member
Registration Date2020.05.08
Country/RegionChina
CityGuangzhou
Contact DAI MO(Ms.)

Guangzhou Luftmy Intelligence Technology Co., LTD is jointly found by the institute of automation of Chinese academy of sciences and Fraunhofer laser research institute of Germany Aachen University at the year of 2012, focusing on the technical research, production and sales of photovoltaic particulate sensor .So far, Luftmy's research and development team has more than 50 professional Engineers , including 6 doctors, 13 masters, and over 500 quality &production personnels .

Led by the enterprise culture of "craftsman's dream", Luftmy has gradually become a leading enterprise in the global photovoltaic sensor industry. And by achieving numerous technology breakthroughs and innovation , it has applied and obtained it has applied and obtained 70 invention patents, more than 120 utility model patents and 17 core algorithm software Copyrights.

In 2015, Luftmy reached a strategic cooperation with Germany's Siemens group, which provided great support in technology researching and development, experimental equipment and the establishment of production quality system . In 2017, Siemens - Luftmy sensor research institute was established, focusing on the research and application of sensor technology and algorithm.Luftmy sensor is in the leading position in the same industry in measuring accuracy, stability, consistency error, anti-interference and other performance indicators , at the three consecutive years 2015~2017 years , Luftmy infrared/laser dust sensor has achieved a more than 35% market share in both domestic and foreign shipments , which has been widely praised by the industry.

Buying Categories

- Packaging Machinery >> Manufacturing & Processing Machinery

Selling Categories

- Electronic Components & Supplies >> Active Components

Keywords

PM2.5 sensor , laser dust sensor , infrared sensor , particle sensor , sensor module , sensor manufacturer , dust concentration sensor , gas sensor

Registration Date	2020/05/08(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	2012
Employees total	101 - 500
Annual revenue	USD 50,000,001 - 100,000,000

Contact Information Order Credit Report

Company	Guangzhou Luftmy Intelligence Technology Co., Ltd
Address	13 Huanling Road, Huangpu District, Guangzhou City, Guangdong Province, ChinaGuangzhou广东51000China
Phone	86 - 020 - 83706905
Homepage	www.luftmysensor.com/
Contact	DAI MO

Can’t find what you are looking for? Post your Buying Leads for FREE!

You may also be interested in :: Infrared Heating Lamp; Infrared Cooker; Infrared Lamp; Far Infrared Sauna Room; Infrared Led; Infrared Sensor; Infrared Detector; Infrared Massager; Infrared Sauna Cabin

Product Groups

Agriculture

Top Searching Keywords

Automobiles & Motorcycles

Top Searching Keywords

Chemicals

Top Searching Keywords

Construction & Real Estate

Top Searching Keywords

Consumer Electronics

Top Searching Keywords

Electrical Equipment

Top Searching Keywords

Food & Beverage

Top Searching Keywords

Hardware

Top Searching Keywords

Health & Medical

Top Searching Keywords

Home & Garden

Top Searching Keywords

Lights & Lighting

Top Searching Keywords

Manufacturing Machinery

Top Searching Keywords

Minerals & Metallurgy

Top Searching Keywords

Packaging & Paper

Top Searching Keywords

Personal Care

Top Searching Keywords

Korea B2C Shopping

Luftmy HPD05 Infrared PM2.5 Sensor Module PM2.5 Detector Module Air Quality Dust Sensor LCD

Product Attributes

Description by Manufacturer

HPD05红外PM2.5传感器模块

1.模块清单

2.产品概述

3.检测原理

4.性能参数

b-2传感器IIC接口

b-3 HPD05寄存器

5.生产者型号：

6.产品尺寸：

7.注意事项

Product Image

Infrared PM2.5 Sensor Module Related Products

Related Products from premium suppliers on EC21

Download Product Brochure

Company Profile

Construction &
Real Estate
