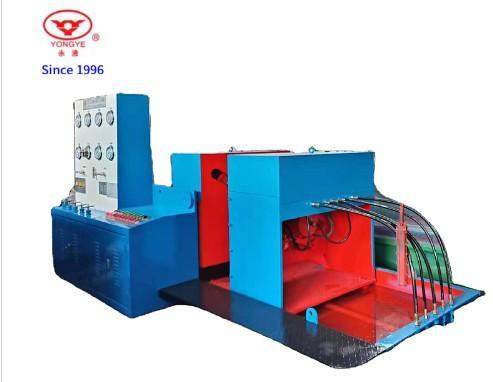

Manual Control YFT-300 Ball Valve Test Machine for Flnage End Valve Performance Testing

Add to Basket Share to :

Price

US$ 15000

Min Order Quantity1 Set
Supply Ability20 sets per momth
PortNingbo
Delivery Lead Time45 days
Payment Terms 4
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Zhejiang Yongstar Hydraulic Co., Ltd.
Membership Free member
Registration Date2023.02.28
Country/RegionChina
CityWenzhou
Contact Thomas Lee(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Thomas Lee

Zhejiang Yongstar Hydraulic Co., Ltd.

* Buying Product

Category : Testing Equipment

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name YONGYE
- Model Number YFT-300
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Blue
- Power Hydraulic
- Usage Universal Testing Machine
- Power supply 380V/50hz
- Accuracy 1.6 grade
- control manual
- display pressure gauge display
- standard API
- Certification CE/ISO9001
- Related Keywords Ball Valve Test Machine, Valve Test Machine, Test Machine

Description by Manufacturer

Technical performance and feature
1. Y FT series hydraulic valve test bench is suitable for the shell test, seal test and back seal test of flanged valves.

 It adopts the sealing method of flange blind plates and uses claws to hold the flange end，so there is no external force on the tested valves, which is in accordance with the requirements of GB/T 1392-92JB/T 909-99 and API 598.
The right workbench can be turned over 90 degrees，for the convenience of carrying valve and seal test.
Test medium can be chosen by user. It can be water air or kerosene.
Test bench has low pressure water pump and water booster.There is an air connection reserved for air pump.
Water and hydraulic oil can be cycle used.
The test bench has an automatic oil pressure discharge system.When using it，the high pressure condition and the relief pressure condition can be changed by itself. So it can reduce oil temperature, elongate the life of valve test bench.
PLC control touch screen display pressure diagram and printer system is optional.
Safety door is optional.

Technical parameters and sizes

Parameter setting is based on customer's requirements

Schematic diagram

YFT - Valve Testing Bench Technical Proposal Model YFT is a kind of valve testing bench applied with electro-mechanical and hydraulic system at a high technological level and high level automation. Touch screen and PLC system is optional.

    It is driven by hydraulic power to clamp cylinder move and turn the left workbench over and rotate the clamping. Meanwhile, the high pressure is generated by high pressure pump(input air drive pump can be applied) driven by oil, and the low pressure of water as testing medium could be generated by low pressure water pump. In addition, the pressure could be compensated automatically (It’s up to the operator whether to do it or not). The whole operation can be handled manually through needle valve or by touch screen and PLC automation control system and electrical control
system.
    3 clampings are set on both sides of workbench to move synchronously in radial direction and to clamp and release synchronously in axial direction. And the right workbench can be turned over with an angle of 0~90°to check and inspect the sealing properly. The left workbench and be moved in radial direction to suit the valves with different length.

Product configuration

Certificates and Patents
Showroom

China Pump & Valves Fair

Packing

Cooperation with foreign friends
FAQ

Certificates

- CE 8608975

Price

Price US$ 15000 / Set

Packaging & Shipping

- Packingstandard wooden box
- Packaging Size2820 x 1400 x 1350 ( Millimeters)
- Package Weight 3000 ( Kilograms )
- Delivery Lead Time45 days
- Minimum Order 1 Set
- Supply Ability20 sets per momth
- Delivery PortNingbo
- Shipping Career

Product Image

Manual Control YFT-300 Ball Valve Test Machine for Flnage End Valve Performance Testing

Manual Control YFT-300 Ball Valve Test Machine for Flnage End Valve Performance Testing 2

Manual Control YFT-300 Ball Valve Test Machine for Flnage End Valve Performance Testing 3

Manual Control YFT-300 Ball Valve Test Machine for Flnage End Valve Performance Testing 4

Manual Control YFT-300 Ball Valve Test Machine for Flnage End Valve Performance Testing 5

Manual Control YFT-300 Ball Valve Test Machine for Flnage End Valve Performance Testing 6

Manual Control YFT-300 Ball Valve Test Machine for Flnage End Valve Performance Testing 7

Manual Control YFT-300 Ball Valve Test Machine for Flnage End Valve Performance Testing 8
