Mini Duct Compact Line 3, Duct Machine, Duct Forming Machine, Duct Production Line

Add to Basket Share to :

Price

CNY 131100

Min Order Quantity1 Set
PortGuangZhou
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Comifo Duct Manufacture Machine Co.,Ltd
Membership Free member
Registration Date2019.08.26
Country/RegionChina
CityGuangzhou
Contact Krayan(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Krayan

Comifo Duct Manufacture Machine Co.,Ltd

* Buying Product

Category : Pipe Making Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Comifo
- Model Number CAL3-1.2x1300
- Place of Origin China
- Supply Type Order
- Condition New
- Related Keywords duct machine, duct making machine, pipe making machine, duct auto line

Description by Manufacturer

Comifo provides compact lines for small and medium sized duct factories and duct installation contractors. Compact line can be either a stand alone system or the start of a complete automatic fabricating system. It is the starter of duct manufacture, also it can be taken right to the construction site. Its control system adopts specific software and realizes one person operation, which saves labor cost.

Compact Line III consists of cradle style decoiler, straightening, beading, punching, notching, hydraulic folding and hydraulic shearing. It processes maximum coil width 1300mm or 1600mm galvanized steel for 18 to 30 gauge material into blank for TDF integrated flange duct, TTF/LT mate flange duct or angle iron flange duct.

Features:
√ Motor driven decoiling, selectable coils stand by, maximum capacity of 5-ton per station ( optional: up to 10-ton per station )
√ Bends right angle lock
√ PLC control, preset available prfiles and folding syle, notching size, punching size, cutting demension on touchscreen
√ This auto line will process 1300mm or 1600mm galvanized steel into blank for plasma cutting machine or notch blank for "L" section or full ductwork

Capabilities:
√ Alternative width for 4(1300mm) or 5(1550) material
√ Thickness: 18-27ga (0.4-1.2mm)
√ Shearing tolerance of ±0.5mm
√ Hydraulic folding diagonal tolerance of ±0.5mm
√ 0-54FPM (0-18m/min) feeding speed,fast acting back gauge

Model No.	Max Coil Width	Thickness Range	Speed	Shearing Tolerance	Diagonal Tolerance
CAL3-1.2x1300	1300mm	0.4-1.2mm	0-18m/min	±0.5mm	±0.5mm
CAL3-1.2x1600	1600mm	0.4-1.2mm	0-18m/min	±0.5mm	±0.5mm

Stations: coil-straightening-beading- punching square -notching-folding-shearing

Work Flow:

Price

Price CNY 131100 / Set

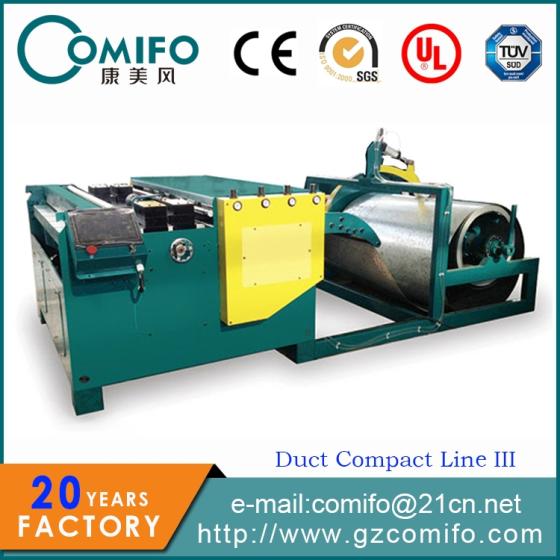

Product Image

Mini Duct Compact Line 3, Duct Machine, Duct Forming Machine, Duct Production Line
