Modbus RS485 Split Core Current Transformer Convert; AC Analog Signal; RS485 Digital Signal

Add to Basket Share to :

Price

US$ 30

Min Order Quantity1 Box
Payment Terms 1wechat
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shanghai Data Acquisition IOT Technology Co., LTD.
Membership Free member
Registration Date2023.07.27
Country/RegionChina
CityShanghai
Contact DAQIOT(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.DAQIOT

Shanghai Data Acquisition IOT Technology Co., LTD.

* Buying Product

Category : Other Flow Measuring Instruments

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name DAQIOT
- Model Number DAQ-GP-CT485
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color black
- Related Keywords Current Transformer, Modbus RS485, AC Analog Signal, RS485 Digital Signal, open type

Description by Manufacturer

1 Product Overview

DAQ-GP-CT485 split core current transformer is a kind of current sensor (transformer) which can convert AC analog signal into RS485 digital signal launched by Shanghai Data Acquisition IOT Technology Co., LTD. The product has built-in 32-bit ARM series MCU and high-precision metering chip, and is a multi-point calibrated current conversion module. It has the characteristics of high precision and fast response. DAQ-GP-CT485 can directly interact with common data acquisition gateways, DTU, programmable controller PLC, and host computer.

This product is widely used in AC motor, lighting equipment, air compressor, heating ventilation and air conditioning equipment, building self-control system, equipment OEE open rate, industrial Internet, rural power transformation projects and other scenarios of current monitoring and acquisition scenarios.

1 Service Concept

Our company solemnly promise you:

You buy more than just products, but also meticulous and thoughtful technical support.

We provide free remote guidance, remote configuration and commissioning services, and send data to the server specified by the customer.

Free IOT solution consulting services!

2 Product Characteristic Parameters

Line Sequence Definition

Red:+12V Black ：GND Yellow ：485A White ：485B

Length of Line ： Default 1 meter

Acquisition Characteristic

l Current detection range: AC 0.2A-100A ，Other large range transformers can be customized

Electrical Characteristic

l Power supply mode：5~24V DC

l Operating power consumption：0.5W

l Operating frequency：50-60Hz

Communication Characteristic

l Transmission mode：RS485

l Communication protocol: Modbus RTU

Structural Characteristic

l Material：ABS plastic (housing)

l Installation method：Buckle mounting

Working Environment

l Temperature: -20°C～70°C

Storage Environment

l Temperature: -20°C～80°C

3 The Core Advantages of the Product

Ø High precision measuring chip, high measurement accuracy

Ø Open type design, easy to install

Ø Easy installation and fast deployment, helping IOT projects land quickly

4 Description of the Modbus Communication Protocol

4.1 Serial Port Communication Parameters

Baud rate：9600 Data bit：8 Verify：NONE Stop bit：1

4.2 Function Code Definition

The upper computer uses 03 function code to read data or receive alarm data.

The host computer controls the lower machine equipment (transformer) using 06 function code.

If you want know more and more details, please add my whatsapp:+8619936624847

Price

Price US$ 30 / Box

Product Image

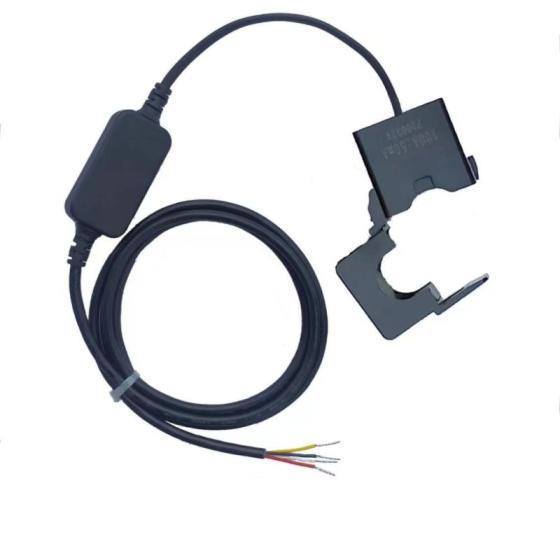

Modbus RS485 Split Core Current Transformer Convert; AC Analog Signal; RS485 Digital Signal
