Modular Matrix Switcher(18x18,Support Mixing Signals,HDCP,Auto-EDID)

Add to Basket Share to :

Delivery Lead Time3 working days

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name AVCIT Electronics Technology Co., Ltd.
Membership Free member
Registration Date2017.08.10
Country/RegionChina
CityGuangzhou
Contact Jason Liu(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Jason Liu

AVCIT Electronics Technology Co., Ltd.

* Buying Product

Category : Professional Audio, Video & Lighting

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name AVCIT
- Model Number HD1818
- Place of Origin China
- Related Keywords Matrix Switcher, HDBaseT, AV matrix, HDMI

Description by Manufacturer

Description:
EARL II series are AVCIT's Modular and Scalable Matrix Switcher with scaler, which is modular structure, Input and output signal support all digital and analog formats, such as AV, VGA, YPbPr, DVI, HDMI, SDI, Optic Fiber, RJ45.
EARL II series include HD0404,HD1010,HD1818,HD3636,HD7272,HD144144,which support diferent channels from 4x4 to 144x144.

Features:
1.Modular structure, hot-swap feature, easy to upgrade and maintenance, Max NO. of input and output channels:18x18;
2.Full true 3D,seamless switching function;
3.Input and output signal support all digital and analog formats, such as AV, VGA,YPbPr, DVI, HDMI, SDI, Opric Fiber,RJ45,
4.Support HDMI input audio loop out, HDMI output audio de-embedder of features;
5.Long wire drive capability;
6.Connection prompt function;
7.Compatible with HDCP: such as blue DVD,GAME BOX etc;
8.Audio access features; VIDEO signal input board, VGA signal input board with audio interface. Can switch video by cooperating with audio de-embedder function;
9.The EDID support computing capabilities; Automatic calculation of intersection and collection. Matrix switcher can obtain the best resolution change the resolution by triggering signal source while one input signal switching to display device with different resolution (automatic mode);
10.The EDID support switching function; read back EDID from any output display device and switch to another output display device;
11,Redundant power supply;Power off memory and scenario memory features.can save and use 18 kind of switch state.
12.Exclusive central controller feature as an option, Users are able to control the matrix switcher, and even more IR and RS232 devices by any authorize iOS/android panel in a LAN, without any other controller.

Certificates

- CCC 2014010911698163
- CE BST10120174Y1SC2
- FCC EPTFJKF1312075

Price

Price Condition FOB

Packaging & Shipping

- Delivery Lead Time3 working days
- Minimum Order1

Product Image

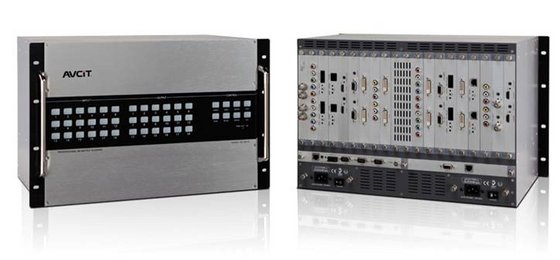

Modular Matrix Switcher(18x18,Support Mixing Signals,HDCP,Auto-EDID)

Matrix Switcher Related Products

KVM System(4x4 To 1000x1000, Whatever You Need, No Limitation for Number of Input/Output)

Main Export Markets

- AVCIT Electronics Technology Co., Ltd. is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia, Africa

Company Profile

About AVCIT Electronics Technology Co., Ltd.

Membership Free member
Registration Date2017.08.10
Country/RegionChina
CityGuangzhou
Contact Jason Liu(Mr.)

AVCIT Electronics Technology Co., LTD was founded in February 2006, is the leading supplier of Pro Audio&Video systems in China, specializing in R&D, manufacturing and sales of IP Based KVM&Video Collaboration System,IP Based Videowall Controller, IP based Central Controller, Modular matrix switcher, HDMI/VGA/DVI Extender, Multi-viewer, Central controller, Digital audio conference systems.
Headquartered in Guangzhou, we have dual brand CREATIVE and AVCIT for domestic and overseas market, own 2 factories, more than 20 offices all around China.
AVCIT Electronics already achieved worldwide recognition, providing technological solutions that have been used in the 2008 Beijing Olympic Games, World Expo 2010 Shanghai, Guangzhou 2010 Asian Games and the 2011 Shenzhen University.

Selling Categories

- Electrical Equipment & Supplies >> Professional Audio, Video & Lighting

Keywords

KVM Matrix , Videowall controller , Modular matrix switcher , Central controller , Multi-viewer , Signal Extender , Conference system , HDMI , DVI

Registration Date	2017/08/10(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	2006
Employees total	101 - 500
Annual revenue	USD 10,000,001 - 50,000,000

Contact Information Order Credit Report

Company	AVCIT Electronics Technology Co., Ltd.
Address	NO. 103 1F, Building 10, No.38, Daganwei Road, Guangzhou China 510288GuangzhouGuangdong510288China
Phone	86 - 20 - 89301184
Fax	86 - 020 - 89301184
Homepage	http://www.avcit.com
Contact	Jason Liu / Export Manager
