Motor drive high pressure 3D rotary tank cleaning nozzle
| Model |
MD series rotary tank cleaning nozzle |
| Material |
316LSS |
| Connection |
thread or flange connection |
| Recommanded pressure |
3-100 bar |
| Temperature |
95° |
| Max. tank diameter |
4m |
| Application |
rinsing and cleaning of tanks / containers |
| Filteration |
Line strainer with a mesh size of 0,3 mm/50 mesh |
Design features :
MD series are driven by the motor with external gear and provides 360° impact indexed coverage for the cleaning of the inside of tanks and process vessels.
1.Using dynamic seal at leakage point to reduce leakage, only 3% leakage, thus save cleaning fluid.
2. The nozzle have a unique steady flow design which can make the jet be more concentrated, greater impact.
3. Driven by external motor, thereby reducing the pressure loss of water flow, resulting in higher water impact.
4.Compact build ideal for small openings
Common application:
Model MD series is a highly versatile machine and is applicable in most all types of
tanks for process, storage, and transportation. It can be used as a portable unit or permanently mounted.
e.g: in food industry, beverage industry, pharmaceutical industry and chemical industry
Product photo:

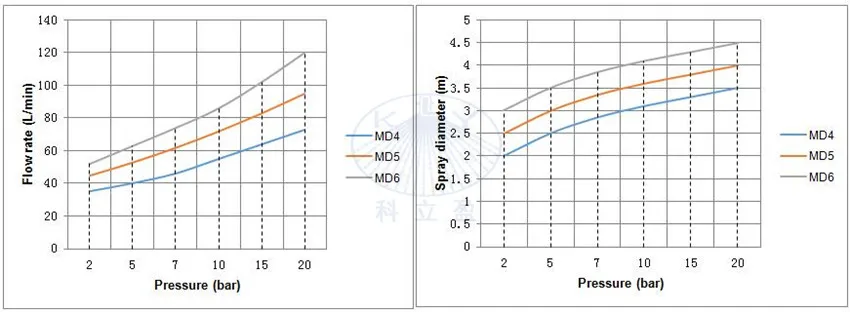

Performance Data:
Dimension:
Application:
D25-1/2" rotary spray heads are used to rinse and clean 1000L IBC totes/ tanks.
