mounts Wire rope Vibration isolators isolation of equipment structures

Helicopter Vehicles Rail Electric Cabinet 100G Shock Vibration Insulation GX-60AN Wire Rope Vibration Damper

Product Description

Wire rope vibration dampers are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope vibration dampers are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

GX-60AN strong impact wire rope vibration dampers are researched based on the former GX series, and the main difference between the two types is the shape of rubber bar of retangle or the round one.

The Pz nominal load of GX-60AN is 60N (6.12kg), expecially for the use under the strong impact of 100G.

The wire rope vibration dampers are now widely used in the field of vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter

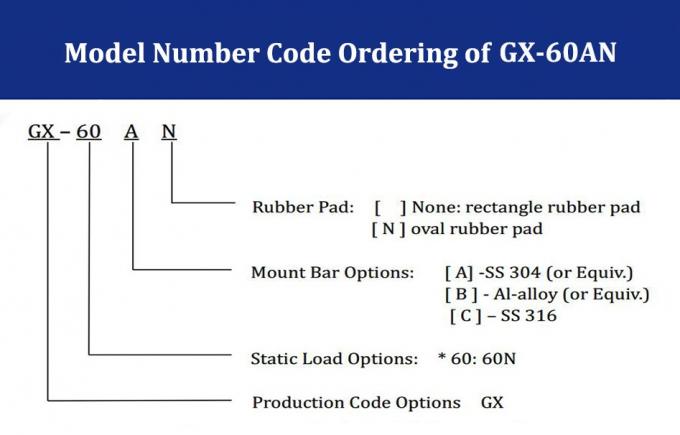

Model Number Code Ordering of GX-60AN:

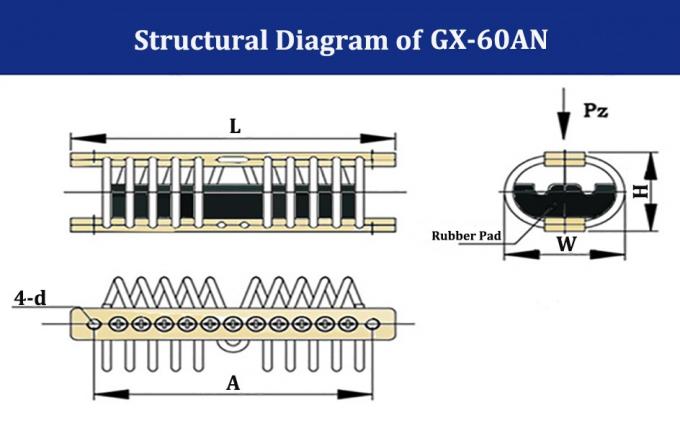

Structural Diagram of GX-60AN:

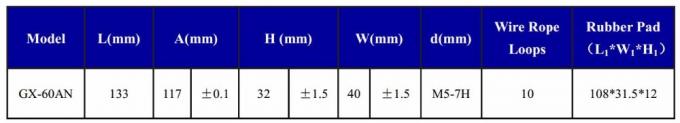

Dimension of GX-60AN:

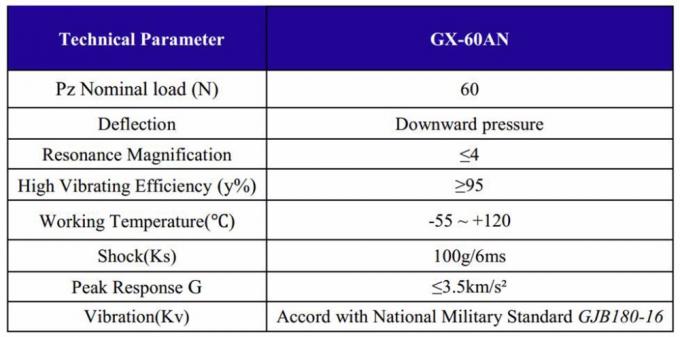

Technical Parameterof GX-60AN:

Mounting Bars

* Material of Mounting Bars *
Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

No creep or ageing.
High internal damping.
Very wide temperature range.
Wide variety of possible fittings.
Rapid and economical prototyping.
Extremely rugged construction and long lifespan.
Excellent combined shock and vibration isolation.
Not affected by chemical agents, seawater, ozone, UV rays,...

Applications

* Applications of Wire Rope Vibration Dampers *

Applications	Typical Equipment	Protection From	Operational Advantages
Shipboard	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicles	Instrumentation, Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Aircraft	Electronics, Computers	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments
Ordnance Equipment	Missile launchers, Tank artillery, Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments

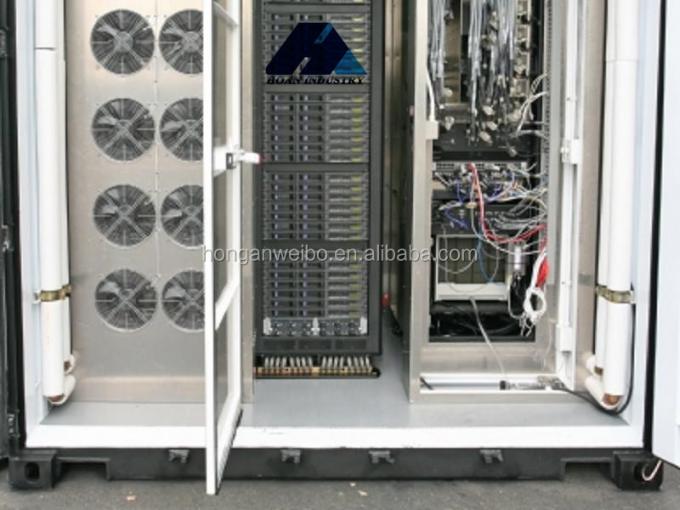

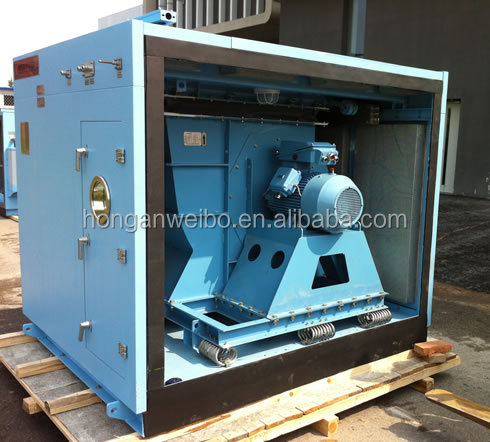

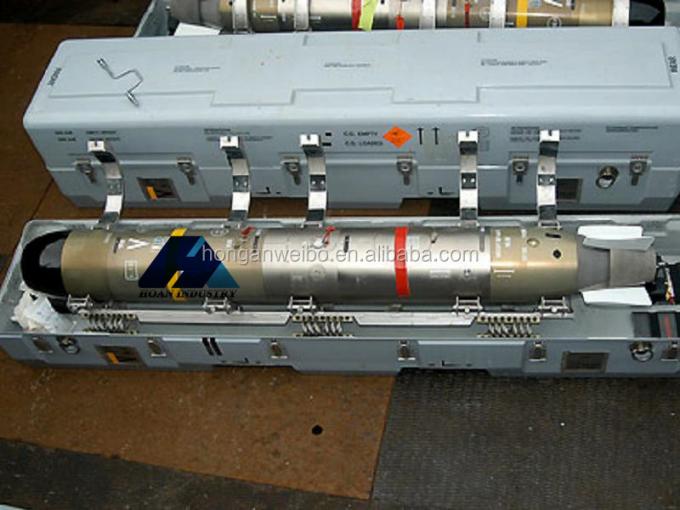

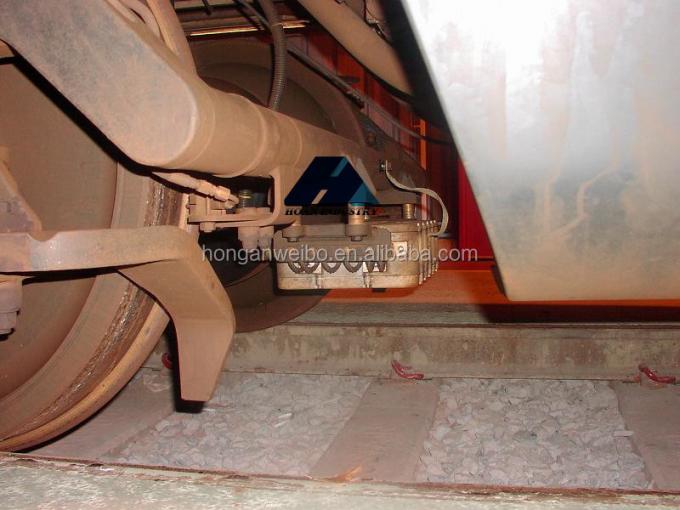

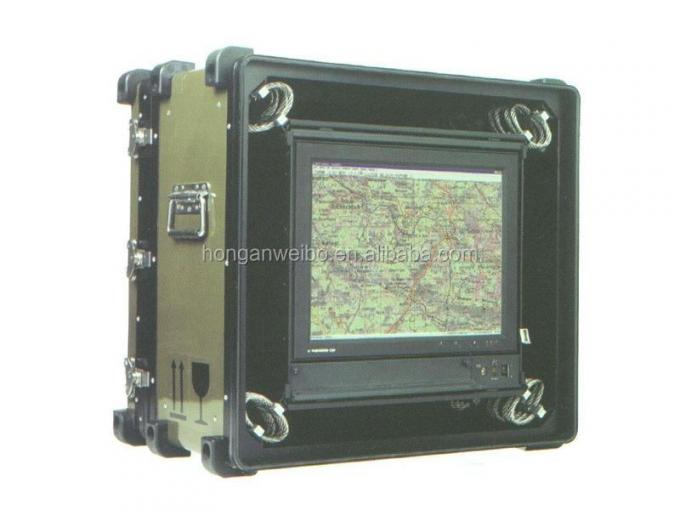

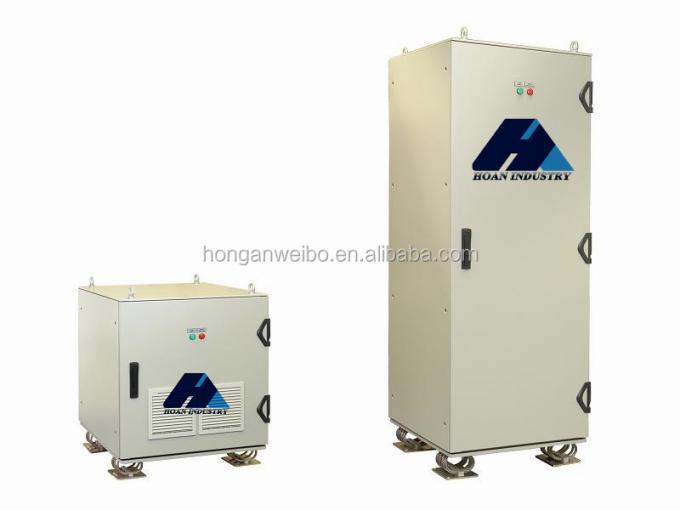

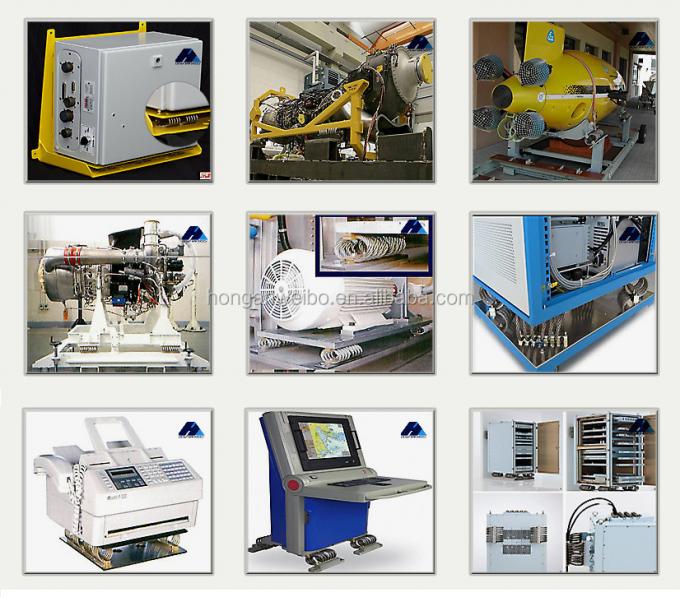

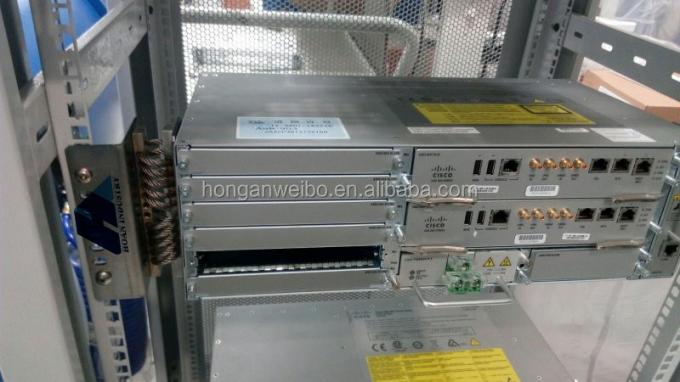

* Applications Show *
