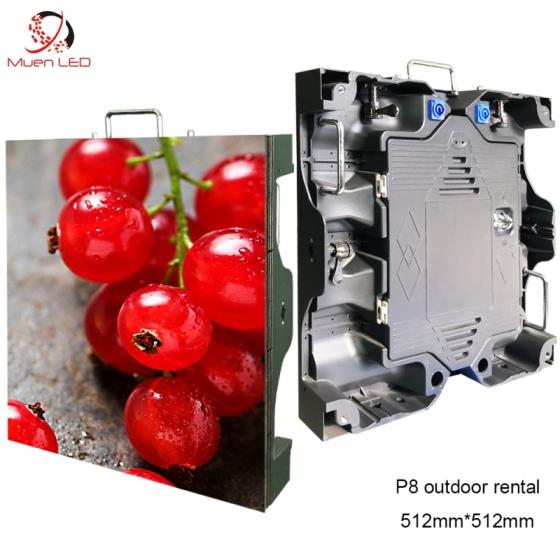

Muen-O-R-P8 Rental LED Display

Add to Basket Share to :

Price

US$ 166

Min Order Quantity10 Piece
Supply Ability999
Portshenzhen
Delivery Lead Time7days
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen Muenled Co.,Ltd
Membership Free member
Registration Date2016.05.28
Country/RegionChina
CityShenzhen
Contact Mike(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name muenled
- Model Number 8mm
- Place of Origin China
- Supply Type OEM Service
- Condition Used - Very Good
- Display Function Video
- Pixels 8mm
- Tube Chip Color Full Color
- Usage Outdoor
- Related Keywords Rental LED Display, Rental LEDscreens, LED Display, LED Display Screens

Description by Manufacturer

Hot products
P10 LED DISPLAY	LINSN LED Sending CARD TS802D	LED Video Processor

Muen-O-F-P8 series
Outdoor SMD Die-casting cabinet(512*512)

1.Physical pixel pitch of 8mm
2.Fast installation can be achieved by a tool-free lock system.
3.Outdoor application both for rental and fixed installation.
4.Slim panel size of only 85mm.
5.Super lightweight panel at 10Kg each.
6.Can be used as perimeter display with a specially-made bracket.

Unit Module	NO.	Muen-O-R-P8
	Pixel pitch	8mm
	Size of Pxiel	SMD3535
	Size of block module	256*128MM
	Resolution of module	32*16
	Density	15625dots/m²
	Module power	35W
Cabinet	Cabinet material	Alu cabinet
	Size of cabinet(l*h)	512mm×512mm×85mm
	Weight of cabinet	10KG
	Support hanging or not	Yes
Main Parameter	Best viewing distance	>8m
	Best viewing angle	≤120°
	Max power consumption	<780W/m²
	Average power consumption	<260W/㎡
	Colors	>16.7M
	Gray scale	16bits
	Color temperature	6500K
	Control method	Synchronization
	Driving device	Constant current
	Driving method	1/4 scanning
	Frame frequency	60Hz
	Refresh frequency	2000Hz
	Brightness	5500cd/m²
	Working voltage	AC220V/110V±10％
	Working temperature	-20℃~50℃±10％
	Out-of control point	<0.0001
	Brightness Control	256 grade
	Mtbf	10,000Hours
	Life span	100,000Hours

As the figure shows, you can connect nearly all the video devices with your LED display. Video processor is a kind of devices that can convert the other video signal to DVI signal. And then the DVI signal will goes to the LED sender, and send from the CAT5 to the display.

For the further use, you can use the vidoe device like switcher, scaler and video matrix with our LED display.

Price

Price US$ 166 / Piece

Packaging & Shipping

- Packingflijht case
- Packaging Size640 x 960 x 101 ( Millimeters)
- Delivery Lead Time7days
- Minimum Order 10 Piece
- Supply Ability999
- Total quantity in Stock21 – 50
- Delivery Portshenzhen
- Shipping Career

Product Image

Rental LED Display Related Products

Main Export Markets

- Shenzhen Muenled Co.,Ltd is mainly exporting to Asia, Europe, North America, South America, Australia

Company Profile

About Shenzhen Muenled Co.,Ltd

Membership Free member
Registration Date2016.05.28
Country/RegionChina
CityShenzhen
Contact Mike(Mr.)

ABOUT MUENLED
MuenLED is a Rapid growth LED display manufacturer and solution provider. The company has been dedicated to providing creative product, cutting-edge solution and professional service since founded in 2006. Now we 3000 square meter workshop and over 100 employees.
We have already successfully formed a complete set management system from R&D, production, installation to the final testing and the qualified shipment. Our LED screen products have passed CE, RoSH, PSE, UL, CCC certifications and the quality has been tested by China technical supervision departments.
