Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Flute Laminator Machine

Description by Manufacturer

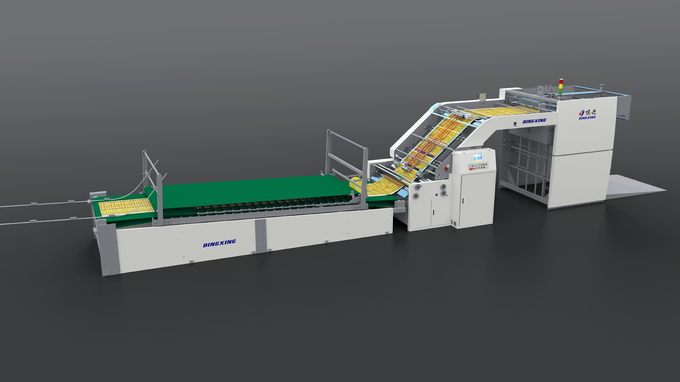

DX-1450 Sheet to Cardboard Flute Laminator

	DX-1450	DX-1650	DX-1650XL
Max. Size:	*1450mm1450mm**	1650mm*1450mm	1650mm*1650mm
Min. Size:	*400mm450mm**	400mm*450mm	400mm*450mm
Top Sheet GSM:	120gsm—600g/㎡	120gsm—600g/㎡	120gsm—600g/㎡
Bottom Sheet Thickness:	0.5-10mm	0.5-10mm	0.5-10mm
Max. Speed:	30~150m/min	30~150m/min	30~150m/min
Lamination Accuracy:	±1.5mm	±1.5mm	±1.5mm
Total Weight:	7000kgs	7500kgs	7500kgs
Machine Size:	*14056mm2314mm2560mm*	14056mm2514mm2560mm	16525mm2514mm2560mm
Machine Power:	AC380/50HZ/26KW	AC380/50HZ/28KW	AC380/50HZ/28KW
Suitable Paper	Single face(flute A-G), Multi-ply(3-7) corrugated cardboard, grey paperboard, paper board over 300 GSM.

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 0

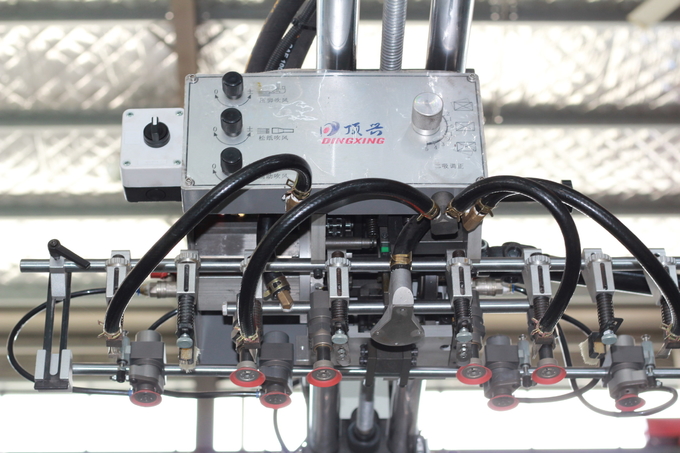

• Servo shaftless back feeder, make the top sheet feeding paper overlap, fast and efficiency.

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 1

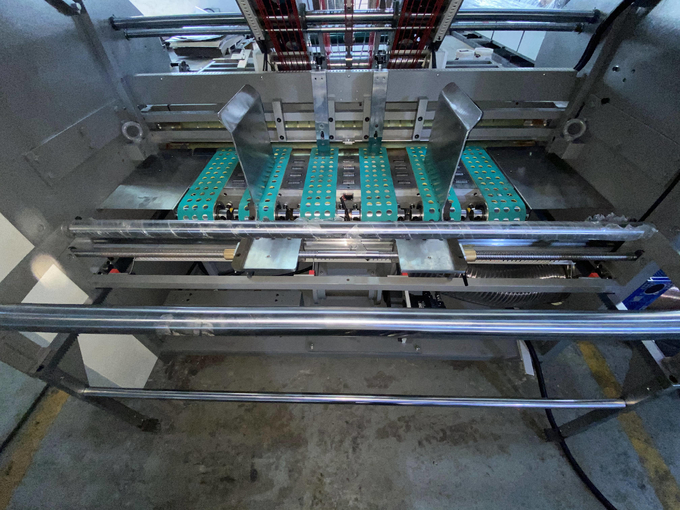

• Dual servo bottom sheet feeder ensures smooth feeding of warping and multi-ply paperboards.

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 2

• Computerized high-speed lamination at max.speed of 12,000 sheets per hour(Paper length:600mm)

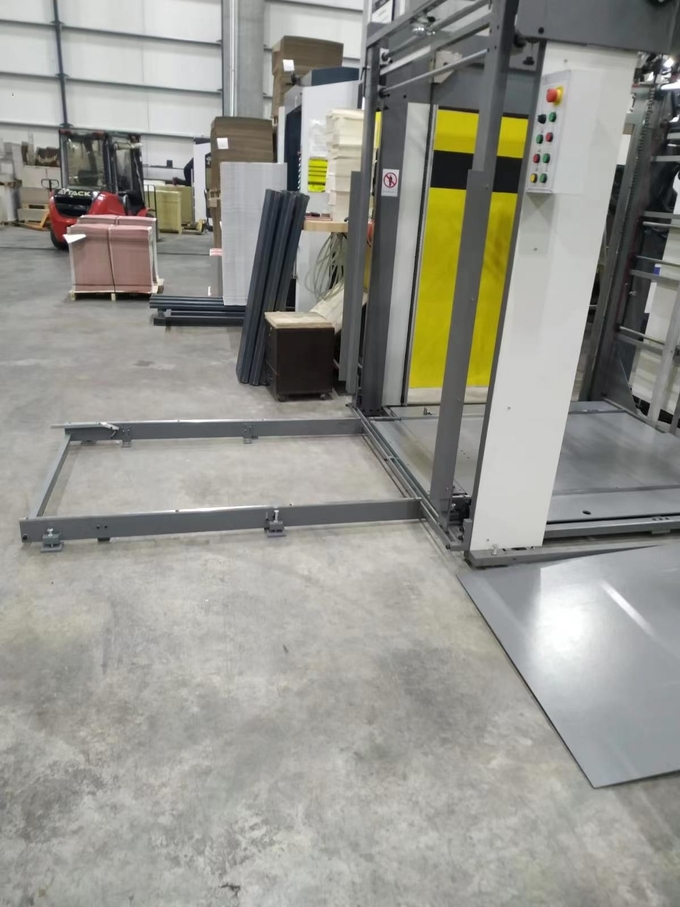

• Feeder Base: Low E-type piling table ensures direct paper feeding by pallet cart. Railway truck pre-loader is optional.

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 3

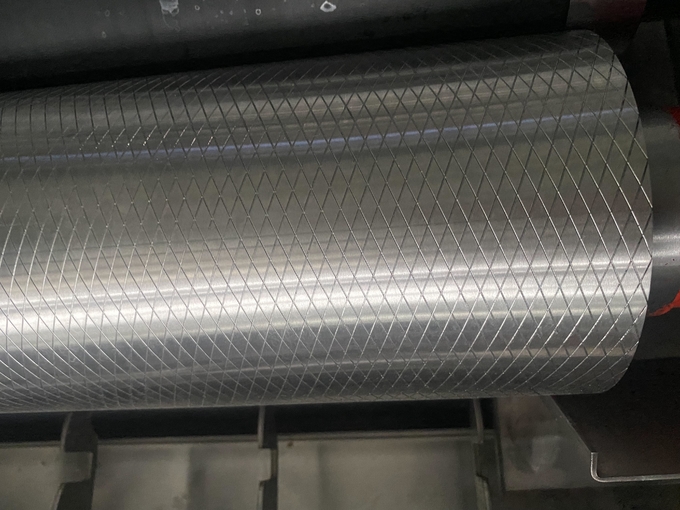

• Gluing System:High-precision gluing rollers, glue side stopper, auto glue level controller, no overflow at high speed and glue recirculation system.

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 4

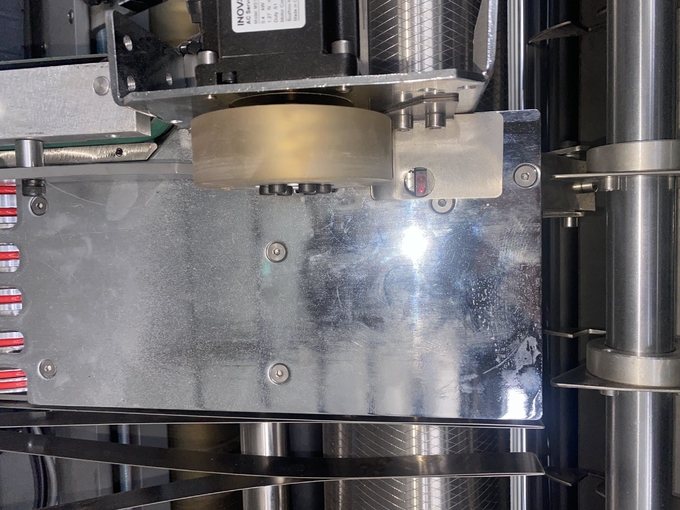

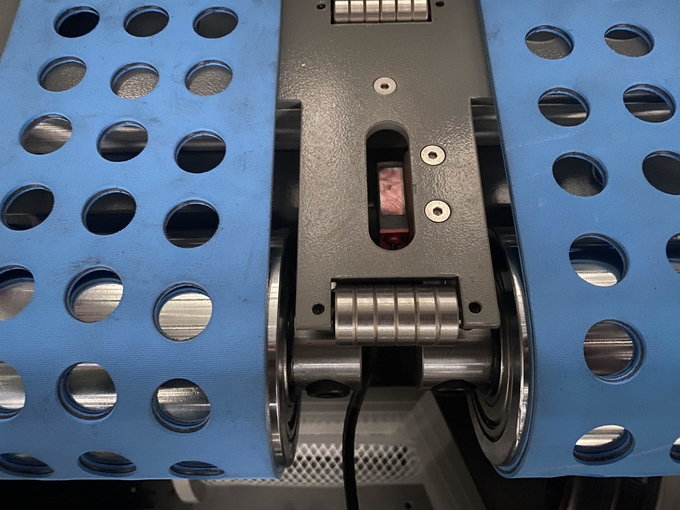

• Compensation Aligning System: multiple sensors detect relative position of bottom paper,while servo motors ensure dependent upper paper delivery compensation to guarantee precise aligning of two sheets.

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 5

• Electrical Control System: Human Machine Interface with PLC control, warning light indicator, automatic detection of production condition,irregularities and job record. CE certified. Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450 7

Product Image

Multi Ply Sheet To Cardboard Flute Laminator Machine DX-1450

Company Profile

About Dongtai Dingxing Machinery Technology Co., Ltd

Membership Free member
Registration Date2022.11.25
Country/RegionChina
CityDongtai
Contact Mr. Tony Tang(Mr.)

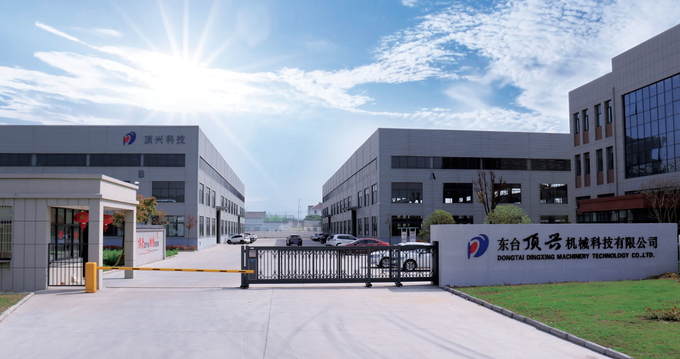

Dingxing Machinery has two production bases, Donguan Dingyi machinery Co., Ltd. And Dongtai Dingxing machinery technology Co., Ltd.

Dingxing Machinery Co, Ltd. is a post-press machinery enterprise integrating professional R&D, production and sales. Dongguan Dingyi was established in China's machinery town-Dalingshan Town, Dongguan City, in September, 2008. After nearly 10 years of concentrated development, the company has won unanimous praise from the industry and customers in the printing and laminator industries, and has become a benchmark enterprise in China's laminator industry. Under the continuous research of the company's technical team, a number of national invention and utility model patents have been obtained.
