Model and line design.
FEATURE
1, Independent probe, excellent anti-interference performance.
2. light touch panel operation, normal/abnormal and total number can be display.
3.High precision detection object positioning technology show on the LCD display.
4.Sensitivity setting and real-time signal display
5.Conveyor belt stop can be set if any needle detected.
6.Auto restart function set.
7.Anti-electrostatic conveyor belt.
8.The power supply voltage can be customized to meet the various countries
SPECIFICATIONS
Model: ND-600(200)
Detection method: Magnetic induction
Sensitivity: Iron ball ¢0.8mm
Detection level: 1-12
Detection width: 600mm
Alarm method: buzze,light
Conveyor belt speed: 32m/min(50HZ)
Power: AC200-240V 50-60HZ
Rate power: 140W
Dimension: 1750mm(L)*1150mm(W)*900mm(H)
Weight: 260Kg
TUNNEL(WINDOWS SIZE.)
DETECT WIDTH*HEIGHT MM | SENSITIVITY(IN THE CENTER OF PROBE) | REMARK |
600*100MM | IRON BALL Φ 0.8mm | standard type |
600*120MM | IRON BALL Φ 0.8mm | Option at factory |
600*150MM | IRON BALL Φ 0.8mm | Option at factory |
600*2000MM | IRON BALL Φ 0.8mm | Option at factory |
The specification is under standard test condition,machine environment ,shape of metal, etc will give effect to the result.
QC report of needle detector
Structure:

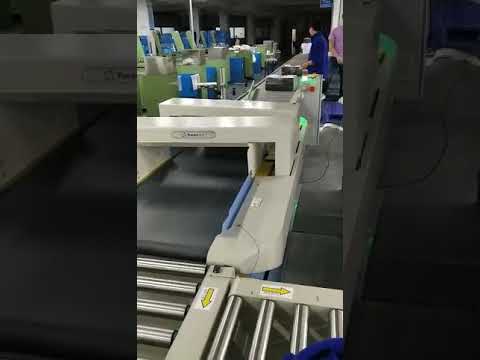

The conveyor transmit system across through the loop detector which is consists of up and down two vertical magnetic probes.
Principle:
Needle detector passing tunnel has a magnetic field.
While any magnetic metal (Iron/cobalt/nickel) passes though the magnetic field, will cause a change in the magnetic field.
The varying magnetic field will caused an electric field. Machine can processing this signal to alarm.
Preparation before testing:
A, Machine installation stable
B, Power supply voltage stable
C, No large motor or fan close to machine.
D, Running without product, sensitivity led level not change much.
9-points testing of needle detector:
According to the design structure and the distribution of magnetic field.
Can divided the magnetic cross section into 9 regions.
Point 5 it is the weakness place, to test the sensitivity.
Point 7/9/3/1 to test the valid detecting area.
Point 8/2 to test top and bottom probe sensitivity if any missing area point.
Test report:
The frequency of detection depends on the environment and times.
Make sure that all points can be detected 100%.
So we can announce that this size machine can detected.
