ODM/OEM 2.0/2.4/2.8/3.0/3.5/4.0/4.3/5/6/7/8/10.1 Inch TFT LCD Display

Add to Basket Share to :

Price

US$ 20

Min Order Quantity100 Piece
Supply Ability1000000/week
PortShenzhen/HK
Delivery Lead Time15 days
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen Techstar Electronics Co.,Ltd.
Membership Free member
Registration Date2018.08.03
Country/RegionChina
CityShenzhen
Contact Jessica(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name TechstarTianzhengda
- Model Number TS8101QC
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Type LCM
- Related Keywords display for car, car front screen, car instrument panel, lcd display module

Description by Manufacturer

ODM/OEM 2/2.4/2.8/3/3.5/4/4.3/5/6/7/8/10.1 Inch TFT

LCD display

ODM/OEM 2/2.4/2.8/3/3.5/4/4.3/5/6/7/8/10.1 Inch TFT LCD

*Features
-Low Input Voltage:VDD:3.3V
-Display Colors of TFT LCD:16.7M colors
-CPU Interface:MIPI 4Lanes

General Information Items	Specification	Unit	Note
General Information Items	Main Panel	Unit	Note
Display area(AA)	135.38(H) *216.576(V) (10.1inch )	mm	-
Driver element	a-Si TFT active matrix	-	-
Display colors	16.7M	colors	-
Number of pixels	800(RGB) 1280/1024600/1280*800	dots	-
Pixel arrangement	RGB vertical stripe	-	-
Pixel pitch	0.1692(H) *0.1692(V)	mm	-
Viewing angle	ALL	o'clock	-
Drive IC	OTM1287A	-	-
Display mode	Normally Black	-	-
Operating temperature	0~+50	℃	-
Storage temperature	-10~+60	℃	-

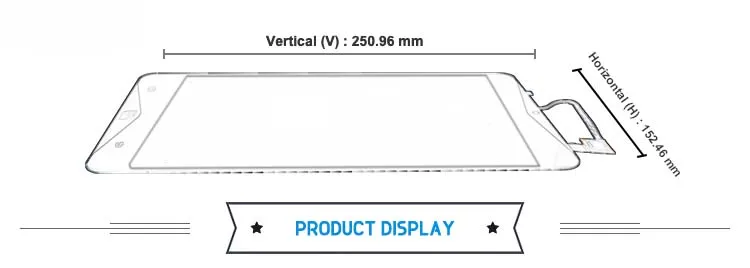

* Mechanical Information:

Item		Min.	Typ.	Max.	Unit	Note
Module size	Horizontal(H)	-	152.46	-	mm	-
	Vertical(V)	-	250.96	-	mm	-
	Depth(D)	-	4.22	4.47	mm	-
Weight		-	TBD	-	g	-

* Module Size:

ODM/OEM 2/2.4/2.8/3/3.5/4/4.3/5/6/7/8/10.1 Inch TFT LCD

Shenzhen Techstar was established in 1998, completed the share restructuring in 2016 and was listed on the New Third Board on December 5,2018. The stock code is 873073.
Techstar,a national high-tech enterprise., more than 20 years in new integrated display and touch modules manufacture in China. With R&D, manufacturer, sales and after-sales as a whole.

ODM/OEM 2/2.4/2.8/3/3.5/4/4.3/5/6/7/8/10.1 Inch TFT LCD

Techstar has passed ISO9001 and IATF16949 quality management system, ISO14001 environmental management system, IECQ QC080000 hazardous substance management system certification, etc, and obtained more than ten practical patent certificates.

ODM/OEM 2/2.4/2.8/3/3.5/4/4.3/5/6/7/8/10.1 Inch TFT LCD

Q:Are you factory or Trading Company?

A:Techstar is a factory which more than 20 years in China;With R&D,manufacture,sells and after-sells as a whole,Factory covers more than 3000m²,300+ staff in the company.

Q:Why are Techstar's products higher in price?
A:Two standards on our LCD quality:
1.consuming standards
2.Industrial standards Our supplier chains are excellent,such as BOE,AUO etc.
Our LCD are full A grade,without bright or dark dot in AA area;
Our LCD mainly saves power,lower consumption;

Q:Do you provide samples before order?
A:Yes,samples/small orders are all available for testing before official order.

Q:Which payment terms can you accept?
A:T/T,Paypal,Western Union,L/C etc.all can be acceptable;

Q:How long is your delivery time usually?
A:Usually 1-3 days for the stock,15-20 days for the manufacturing;

Q:What is your terms of warranty?
A:12 months after the delivery.

Price

Price US$ 20 / Piece

Packaging & Shipping

- PackingCarton box
- Delivery Lead Time15 days
- Minimum Order 100 Piece
- Supply Ability1000000/week
- Total quantity in Stock101 – 150
- Delivery PortShenzhen/HK
- Shipping Career

Product Image

ODM/OEM 2.0/2.4/2.8/3.0/3.5/4.0/4.3/5/6/7/8/10.1 Inch TFT LCD Display

ODM/OEM 2.0/2.4/2.8/3.0/3.5/4.0/4.3/5/6/7/8/10.1 Inch TFT LCD Display 2

ODM/OEM 2.0/2.4/2.8/3.0/3.5/4.0/4.3/5/6/7/8/10.1 Inch TFT LCD Display 3

ODM/OEM 2.0/2.4/2.8/3.0/3.5/4.0/4.3/5/6/7/8/10.1 Inch TFT LCD Display 4

ODM/OEM 2.0/2.4/2.8/3.0/3.5/4.0/4.3/5/6/7/8/10.1 Inch TFT LCD Display 5

ODM/OEM 2.0/2.4/2.8/3.0/3.5/4.0/4.3/5/6/7/8/10.1 Inch TFT LCD Display 6

ODM/OEM 2.0/2.4/2.8/3.0/3.5/4.0/4.3/5/6/7/8/10.1 Inch TFT LCD Display 7

ODM/OEM 2.0/2.4/2.8/3.0/3.5/4.0/4.3/5/6/7/8/10.1 Inch TFT LCD Display 8

Display For Car Related Products

Main Export Markets

- Shenzhen Techstar Electronics Co.,Ltd. is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia, Africa

Company Profile

About Shenzhen Techstar Electronics Co.,Ltd.

Membership Free member
Registration Date2018.08.03
Country/RegionChina
CityShenzhen
Contact Jessica(Ms.)

Techstar/Tianzhengda company established in 1998, specialize in R&D, manufacturing tft lcd/lcd modules, size from 0.96 inch to 21.5 inch, oled display and TN, HTN, STN, FSTN to color STN LCD modules which are widely used in Smart POS, Home appliances, Educational Electronics, Vehicle, GPS, Medical, office automation, A/V systems, telecommunications, PDAs, meters and apparatus, and calculators etc.

Based on the business motto of "quality first, clients foremost", we provide in-time after-sales service and technical support to our clients. Also with our workable price and hight quality, we have established long-term business relationship with a lot of brand custmers, like Honywell, Verifone, Media, Hisense, BBK etc..

Our company now boasts the latest production lines and advanced technology, allowing us to supply both standard and customized LCD products.

Please browse our products for more information on our TN, HTN, STN, FSTN, and CSTN LCD panels; COB, COG, TAB, and COF LCD modules, and TFT LCD modules. We look forward to working with customers from around the world in the near future.
