ORP Detector ORP Controller Redox Potentiometer Industrial On-line Orp Meter
Product Introduction:
NP-1806 is a new generation of intelligent water quality detector independently developed by our company. It has English menu operation, high stability, excellent repeatability and multi-function, and can accurately measure PH value, REDOX potential (ORP) and temperature value in solution.
NOBO brand website ：http://www.nobowisd.net/en
It is widely used in waste water treatment, such as pure water, circulating water, boiler water system and electronic, aquaculture, food, printing and dyeing, electroplating, pharmaceutical, fermentation and chemical processes in the field of PH/ORP value on-line detection, in the surface water and pollution emissions and other environmental monitoring and remote power system applications.
ORP Detector ORP Controller Redox Potentiometer Industrial On-line Orp Meter
Main Features:
- Waterproof, dust proof, moisture-proof (IP65), high-end design look.
- high precision, high stability and preferable antijamming ability.
- Large screen LCD display, support Chinese - English menu (switching from each other).
- Automatic temperature compensation function, manual adjustment of PH and temperature value.
- Communicate function: RS-485;Two 4-20mA current outputs
- Able to store 50 PH data and 40 ORP data
- Watchdog function: make sure the meter doesn't crash.
- Power off protects > 10 years.
ORP Detector ORP Controller Redox Potentiometer Industrial On-line Orp Meter
Parameters:
Measuring range | 0~14pH, -1999~+1999mV |
Resolution | 0.01pH, 1mV, 0.1℃ |
Stability | ≤0.01pH/24h |
Accuracy | ±0.02pH, ±1mV, 0.3℃ |
PH standard liquid | 4.00/6.86/9.18 |
Signal output | 4~20mA |
Working temperature | 0~60℃ |
Power supply | AC 220V ±10% 50/60Hz or DC 24V |
Level protection | IP65 |
Way to installation | Embedded installation |
Nanning Nobo Instrument & Meter Co., Ltd. is a high-tech enterprise integrating design, research and development, production, sales and service. It focuses on independent research and development of intelligent water quality analysis instruments and Internet of Things technologies. cloud service. Products include PH / ORP, conductivity, dissolved oxygen, residual chlorine, ozone, ion concentration, turbidity, salinity, sludge concentration, COD, ammonia nitrogen and other water quality analyzers, water quality digital sensors, DTU, Nobo cloud. The company integrates Nobo artificial intelligence, big data, and cloud technology to build a smart Internet of Things platform to provide customers with multi-parameter water quality monitoring systems, promote smart cities and smart agriculture, and promote industry changes.
The company's new concept of science and technology - "technology changes life", "people-oriented, customer first" as a principle of service, "innovation, professionalism, unity, integrity, dreams" as the company's five core values.

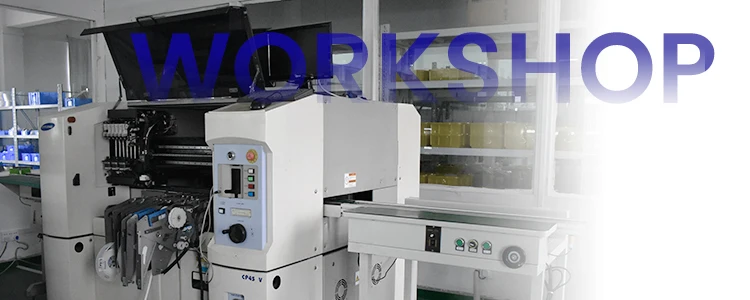

The company has advanced research and development institutions (artificial intelligence laboratory and physical and chemical laboratory), industry-leading SMT production line, advanced production technology, and excellent talent team. The company has passed ISO9001:2015 quality management system certification. The company adopts 5S standardization management as the standardization system of the company. The company exchanges and cooperates with national key laboratories of many famous universities to promote technological development. The company's products are of stable quality, advanced technology and complete functions. They are favored by domestic customers and exported to North America, Europe, Southeast Asia and other overseas places.
