Product Attributes

- Brand Name RUIJING
- Model Number RJ-OP485-IEC
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Optical Probe, Optical Probe for Meters, IEC1107 Standard Optical Probes

Description by Manufacturer

USB Optical Probe ---- RJ-OP485-IEC

General characteristic
This model is an optical probe with RS485 interface, It's widely applied to meter infrared communication, such as meter data reading and check or more.
Optical communication adapter according to IEC62056-21 standard (earlier IEC1107 standard) between electricity meters which with optical interface and reading devices with serial interface (for example: PC)Magnetic adsorption.
Technical Specification
Working Voltage:                   4-5.5V
Working current:                   ≤100mA
Wavelength:                      940nm
Data baud rate:                   300-19200 bit/s
Material Type:                     ABS
Cable Length:                     1 m
Dimension:                       Diameter:32mm
Electricity interface:               RS485 (GX12-4/4PIN Connector)
Weight:                          100g (including: cable)
Color:                            Black

Interface definition:   1,VCC   2,A(485+)   3,B(485-)   4,GND

Packaging & Shipping

- Delivery Lead Time30 days for OEM, 7 days for ready goods
- Supply Ability20,000 Set/ Sets per Month
- Delivery Portshenzhen
- Shipping Career

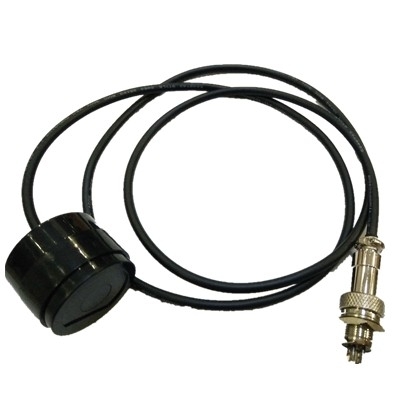

Product Image

Optical Probe for Meters Reading, Rj-OP485-IEC, Optical Probe for Data Communication, IEC1107

Optical Probe Related Products

Related Products from premium suppliers on EC21

- Zhuhai Ruijing Electronic Technological Co., Ltd is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia, Africa

Company Profile

About Zhuhai Ruijing Electronic Technological Co., Ltd

Membership Free member
Registration Date2018.09.25
Country/RegionChina
CityZhuhai
Contact Frank(Mr.)

Zhuhai Ruijing Electronic Technological Co., Ltd. is located in the beautiful coastal city of Zhuhai City, is a company with independent intellectual property rights, science and technology enterprise development strength and technology advantages. Since its inception, we have been focused on air conditioning and heat pump start control technology and relay protection technology, photoelectric communication technology of intelligent meter and other field research and products development, production, sales and service.

In the field of air conditioning and heat pumps, we have a series of mature products such as single-phase / three-phase air conditioning soft starter and heat pump soft starter, DC variable frequency drive module, main control panel, single-phase overvoltage protector, phase sequence protector and so on.

In intelligent meter optical communications and other areas, we have a series of mature optical probe products to meet various communication interface and infrared communication protocols such as IEC, ANSI and DL/T645 and so on. These products are suitable for all kinds of meter reading occasions

We have skilled and innovative R & D team, according to customer demands, our R & D team can develop reliable quality and advanced technology products, at the same time our R & D team can also provide high quality and efficient service. We are also actively with domestic colleges to carry out research cooperation, have obtained a number of national qualification certifications such as national high-tech enterprises, intellectual property management system, 7 software copyrights and 4 patents and so on.

We adhering to the core concept of "technology is the root, quality is the fundamentality, integrity and pragmatic, pursuit of excellence" We will strive to build a first-class technology, first-class products, first-class service of science and technology enterprises.
