PCB Circuit Membrane Switch Keypad Silk Screen Printing Panel

LuphiTouch PCB Membrane Switch Demo General Design Spec.:

Outshape: as per customer's needs;

Overlay Material: Autotex/Autotex XE/Autoflex/Autotex AM series Polyester, Tekra polyester and SABIC Lexan Polycarbonate;

Spacer Adhesive: 3M, Luxking;

Back Adhesive: 3M;

Circuit Layer: single side, double sided or multi-layers PCB;

Components Assembly: like LEDs, metal domes, resistors, capacitors, ICs, ambient sensors, connectors etc.

Rohs and Reach compliance;

Lead Time: one week;

> Main Technical Specifications:

Item	Description	Technical capabilities
1	Max. Size	1200mm x 1000mm
2	Overlay Material	PET: Autotype (Autotex F150, F200, F280, V150, V200, V280, Autoflex EBG130, EBG180, EBG250, EBA130, EBA180, EBA250) Autotex : XEV150, XEF200; Autostat CT3, CT4, CT5, CT7 DuPont etc. PC: GE LEXAN--8010 8B35 8B35F HP92S HP40 FR700 FR60
3	Spacer	3M Adhesive, NITTO, TESA, SONY, SEKISUI, Domestic Adhesive
4	Back Adhesive	3M(Mainly), Others(Little)
5	Silver Paste	CHANGSUNG: CSP-3163, CSP-3352, CSP-5150; ACHESON: ED 725A(6S-61), ED 427SS, ED 479SS, ED 976SS HV; FUJIKURA and OTTI
6	Oil Ink	SEIKO, JUJO, DUBUIT, PROELL, NORCOTE UV
7	Carbon Paste	FUJIKURA, ACHESON ED 581SS, OTTI
8	6 Layers Metal dome Type Membrane Switch Structure	Overlay + Spacer + Dome Retainer + Spacer + Circuit Layer+ Back adhesive
9	4 Layers Polydome Type Membrane Switch Structure	Overlay + Spacer + Circuit + Back adhesive
10	Contact Resistance	0.5-10Ω
11	Insulation Resistance	≥10MΩ (100VDC)
12	Base Material Voltage Durable	≤ 2000V DC
13	Bounce Time	≤ 5ms
14	Working Current	≤ 100mA
15	Working Voltage	≤ 50VDC
16	Life	≥ 1,000,000 times
17	Key Travel	Flat type: 0.05mm-0.5mm, Tactile Type: 0.1-1.5mm
18	Working Temperature	-40ºC-+80ºC
19	Actuation Force	20-550g
20	Storage Condition	Temperature: -40ºC~+85ºC ,Humidity: ≤98% RH
21	PET Circuit Tail Flexible Feature	180°to any angle

PCB Circuit PCB Membrane Switches Keypad With Silk Screen Printing 3M Adhesive 0

FAQ: For the PCB circuit membrane switch, can you design the Gerber file for customer?

Answer: Yes. If customer couldn't provide the Gerber file, then we can design the Gerber file as per the schemetics provided customer.

FAQ: Can you PCBassembly service for the PCB membrane switch?

Answer: Yes, we can. We have our own SMT factory and can make electronic components assembly to the PCB circuit board.

FAQ: How long can you provide quotation when you received our product drawings and design specifications?

Answer: If all information provided in drawings, then it just needs one working days. If need assemble some special components to the PCB circuit, especially some speical connectors, ICs, then it may need a little longer time.

FAQ: Will you provide shipment support to us?

Answer: Yes. When the PCB membrane switches are finshed production and quality inspection, we will pack the keypds by anti-static PP bag, then pack them in hard carton. Then we will provide the packing list to customer. And also provide different shipping method costs for customer checking.

FAQ: After-sales Service: Once the customer found the nonconforming keypads, then what will you do?

Answer: We will make analysis at once and then arrange to make replacement production immediately, no matter the quality keypads caused by ourself or customer's workers or the transportation process. Make replacements for customer in time to meet customer's production line needs always at the top list.

Product Image

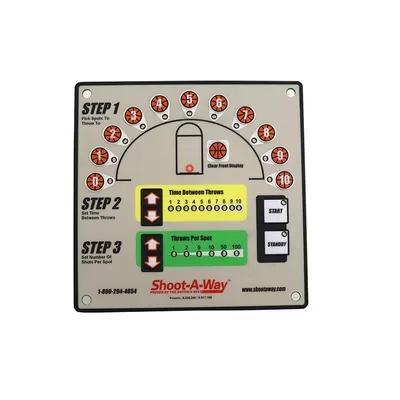

PCB Circuit PCB Membrane Switches Keypad with Silk Screen Printing 3M Adhesive
