Product Attributes

- Brand Name ChuangWei
- Model Number CW-F04
- Place of Origin China
- Warranty 1 year
- Payment Term TT 100%
- Related Keywords PCB Router, PCB Separator, High Precision, pcb depaneling machine

Description by Manufacturer

PCB Router Separator with High Precision,CW-F04

PCB Router Separator with High Precision,CW-F04 Simple Introduction:

It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.

PCB Router Separator with High Precision,CW-F04 Key Features:

Solution for stress free depanelization
Fixture-based highly efficient dust vacuum system
Clean and precise depanelization for densely populated PCBs
Advanced image-processing software offers point-and-click operation for programming router paths
Automatic alignment compensation by CCD camera
User-friendly operation
Extended bit life by automatic router bit depth adjustment
Improved tact time
Low maintenance required
Reasonable price
Calibration free linear robot

PCB Router Separator with High Precision,CW-F04 Technical Data:

Model	CW-F04
Standard working area	320*320mm
Power	220V, 4.2KW
Manipulator Repeatability	±0.02mm
Resolution	±0.01mm
Board Positioning	Dual workstation with nest fixture or pin fixture
Panel Location	Located by tooling holes or edges of PCB
Loading	Manual
Unloading	Manual
Panel Size	320*320mm(standard)
Panel Thickness	0.5-3.5mm
Spindle motor	KAVO Spindle
Tool Change	Manual
Dust filtration system	3KW Vacuum Cleaner
Vision system	High resolution CCD video camera
Programming	Vision assisted point to point manual teaching
Editing Function	Dry run vision assisted / test run mode
Machine weight	500kgs
Machine dimension	113140108cm

PCB Router Separator with High Precision,CW-F04 Our Special Service:

1. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
2. We can also customize the products to fulfill different requirements.
3. We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for
Electronic Assembly Industry.
4. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time
is just 3 days.
5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
6. Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your
reliable partner and will return to you with good products and good support.
7. Professional: We have been in this business for more than 10 years. We have a strong professional
team with various experiences.
8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
9. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due
to our mistakes
10. Price: we always offer competitive prices and help our customers to cost down.
11. Quality: we do 100% inspection before the shipment.

PCB Router Separator with High Precision,CW-F04 Machine Details:

PCB Router Separator with High Precision,CW-F04 Product Working Process:

PCB Router Separator with High Precision,CW-F04 CE Approval:

PCB Router Separator with High Precision,CW-F04 Customer Feedback:

Price

Price US$ 2 / Set

Packaging & Shipping

- Packingplywood case
- Delivery Lead Time7 days for ready goods
- Minimum Order 1 Set
- Supply Ability1000 sets/month

Product Image

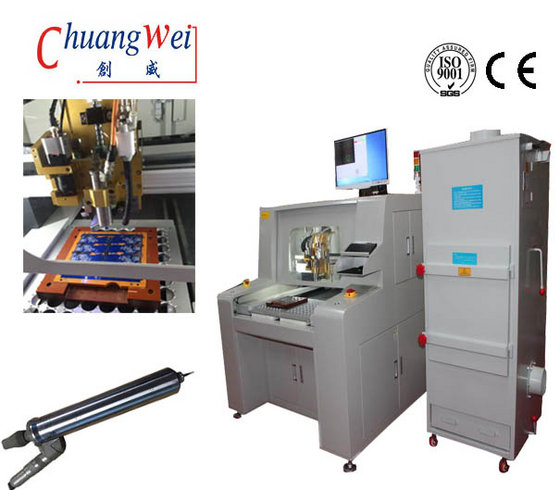

PCB Router Separator with High Precision
