PE Waterproof Double Wall Adhesive Heat Shrink Tubing 4:1 Ratio Polyolefin Tubing

Add to Basket Share to :

Price

1000 - 2999
US$ 0.27
≥3000
US$ 0.18

Min Order Quantity1000 Meter
PortShenzhen Pork
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.
* Date last updated : 2025.10.20

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Dong Guan KE YU New Material Technology Co.,LTD
Membership
Registration Date2025.09.01
Country/RegionChina
CityDongguan
Contact Wr.WEI(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Wr.WEI

Dong Guan KE YU New Material Technology Co.,LTD

* Buying Product

Category : Insulation Materials & Elements

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name KEYUACE
- Model Number HUS-S
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Customized
- Application Low Voltage
- Material PE
- Rated Voltage 600V
- Tensile Strength 10.5MPa
- Type Insulation Sleeving
- Related Keywords Flexible Tubing For Cable, Heat Shrink Cable Sleeve, Polyolefin Sleeve

Description by Manufacturer

Description

HUS-S Soft Thick Glue Dual Wall Heat Shrink Tubing

HUS-S Soft Thick Glue Dual Wall Heat Shrink Tubing The outer polyolefin PE material is very soft and flame-resistant. The inner hot melt adhesive layer has good performance at aspects of waterproof, anti-corrosion, buffer machine response and sealing. It’s widely used in wire connection, automobile wire harness, household appliances’ wire harness, wire and cable branch to provide insulated protection.

Feature & benefit

1, Meet the standard ASM-DTL-23053/4

2, Flame-resistant inner layer, anti-UV

3, Heat shrink ratio: 4:1

4, Waterproof, Damp-proof, anti-corrosion, prevent gas leakage

Operating indexes

1, First shrink temp.: 70℃

2, Final shrink temp.: 110℃

3, Working temp.:-45℃~125℃

Up to standard: Approvals

Meet military standard ASM-DTL-23053/4, UL224, 600V

Technical Date

Product Properties	Test Method	Test Date
Longitudinal shrink ratio	ASTM D 2671	-8%~+8%
Tensile strength	ASTM D 2671	≥10.5MPa
Elongation at break	ASTM D 2671	≥300%
Tensile strength after aging	158℃,168hrs	≥7.2MPa
Elongation after aging	158℃,168hrs	≥100%
Breakdown strength	IEC 60243	≥15.2KV/mm
Corrosion	ASTM D 2671	Pass
Flammability	AMS-DTL-2305/4	Self-extinguish in 30 seconds
Volume resistance	IEC 60093	≥1014Ω.cm(min.)
Hot melt adhesive technology index
water absorption	95 ± 5℃	ASTM E 28
Softening point	< 0.5%	ASTM D 570
Peel strength (PE)	≥120 N/25 mm	ASTM D 1000
peel strength (AI)	≥80 N/25 mm	ASTM D 1000

SIZE

Price

Price US$ 0.18 ~ 0.27 / Meter

Packaging & Shipping

- Packing8 pieces peer box
- Packaging Size46 x 46 x 55 ( Centimeters)
- Package Weight 14.7 ( Kilograms )
- Minimum Order 1000 Meter
- Total quantity in StockOver 5000
- Delivery PortShenzhen Pork
- Shipping Career

Product Image

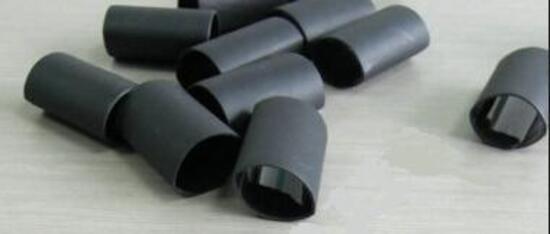

PE Waterproof Double Wall Adhesive Heat Shrink Tubing 4:1 Ratio Polyolefin Tubing

PE Waterproof Double Wall Adhesive Heat Shrink Tubing 4:1 Ratio Polyolefin Tubing 2

PE Waterproof Double Wall Adhesive Heat Shrink Tubing 4:1 Ratio Polyolefin Tubing 3

PE Waterproof Double Wall Adhesive Heat Shrink Tubing 4:1 Ratio Polyolefin Tubing 4

PE Waterproof Double Wall Adhesive Heat Shrink Tubing 4:1 Ratio Polyolefin Tubing 5

PE Waterproof Double Wall Adhesive Heat Shrink Tubing 4:1 Ratio Polyolefin Tubing 6

PE Waterproof Double Wall Adhesive Heat Shrink Tubing 4:1 Ratio Polyolefin Tubing 7

PE Waterproof Double Wall Adhesive Heat Shrink Tubing 4:1 Ratio Polyolefin Tubing 8

Product Video

PE Waterproof Double Wall Adhesive Heat Shrink Tubing 4:1 ...

Flexible Tubing For Cable Related Products

Company Profile

About Dong Guan KE YU New Material Technology Co.,LTD

Membership
Registration Date2025.09.01
Country/RegionChina
CityDongguan
Contact Wr.WEI(Mr.)

KEYUACE Founded in 2015, KEYUACE Has now become one of an expert in the insulating protective sleeve industry in the word .

KEYUACE 's products Serviced the Electrical & mechanical insulation solutions for the Automotive , Electrical,Utility , Electronics and Communications markets,Medical devices, beauty equipment, fire-fighting equipment, aerospace,Shipbuilding, sewage treatment,Automobiles, electronic appliances, electric power, wiring harness and cable, communication, pipeline engineering, shipbuilding, lamps, lighting, medical devices, heavy machinery, safety protection filed etc.. .

KEYUACE 's products include : Braided Sleeving, Textile Sleeving, Woven Wrap, Split Harness Wrap Sleeves, Heat Shrinkable Tube,Connector Terminals, Cable Marker ststem&identification tubing, Insulation Material, Sewage treatment TPU aeration hose, Protective sleeving, Fire Sleeving.

We adhere to the principle of survival through quality and development through service, providing you with complete security in the global efficient materials supply chain.
