Product Description

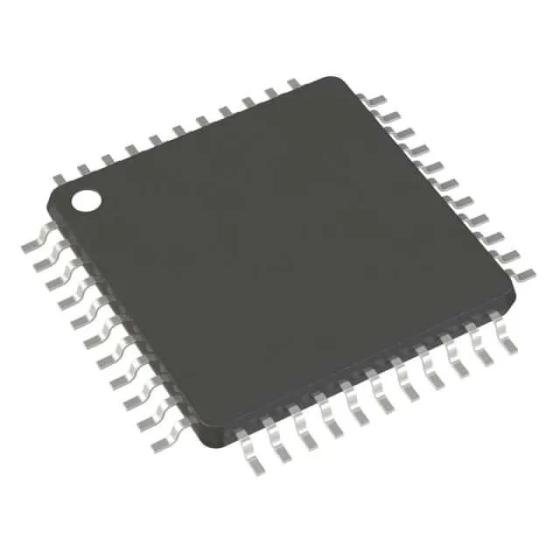

PIC16F914-I/PT PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 7KB (4K X 14) FLASH 44-TQFP (10x10)
Special Microcontroller Features:
• Precision Internal Oscillator:
- Factory calibrated to ±1%, typical
- Software selectable frequency range of 8 MHz to 125 kHz
- Software tunable
- Two-Speed Start-up mode
- External Oscillator fail detect for critical applications
- Clock mode switching during operation for power savings
• Software selectable 31 kHz internal oscillator
• Power-Saving Sleep mode
• Wide operating voltage range (2.0V-5.5V)
• Industrial and Extended temperature range
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Brown-out Reset (BOR) with software control option
• Enhanced Low-Current Watchdog Timer (WDT) with on-chip oscillator (software selectable
nominal 268 seconds with full prescaler) with software enable
• Multiplexed Master Clear with pull-up/input pin
• Programmable code protection
• High-Endurance Flash/EEPROM cell:
- 100,000 write Flash endurance
- 1,000,000 write EEPROM endurance
- Flash/Data EEPROM retention: > 40 years
Product Attributes
Product Status | | |
Core Processor | | |
Core Size | 8-Bit | |
Speed | | |
Connectivity | | |
Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT | |
Number of I/O | | |
Program Memory Size | 7KB (4K x 14) | |
Program Memory Type | | |
EEPROM Size | | |
RAM Size | | |
Voltage - Supply (Vcc/Vdd) | | |
Data Converters | | |
Oscillator Type | | |
Operating Temperature | | |
Mounting Type | | |
Package / Case | | |
Supplier Device Package | | |
Base Product Number | PIC16F914 |
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
