POLCD 240X320 2.2 Inch LCD DISPLAY ST7789V Small TFT Monitor 300 Brightness TFT DISPLAY

Add to Basket Share to :

Price

US$ 5 ~ 20

Min Order Quantity1 Piece
Supply Ability500000 pieces per month
Delivery Lead Time4-6 Weeks
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen P&O Technology Co.,Ltd
Membership Free member
Registration Date2022.10.27
Country/RegionChina
CityShenzhen
Contact Jane Li(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name POLCD
- Model Number P022H002
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Type TFT
- Related Keywords 2
- Related Keywords LCD DISPLAY, TFT DISPLAY, TFT Monitor, POLCD, 2 2 Inch

Description by Manufacturer

P/N:	P022H002	Size (inch):	2.2
Resolution:	240*320	Brightness (cd/m²):	300
Interface:	4 Line SPI	Driver Ic:	ST7789V
High Light:	240X320 2.2 Inch Lcd Display , 2.2 Inch Lcd Display ST7789V , ST7789V Small Tft Monitor

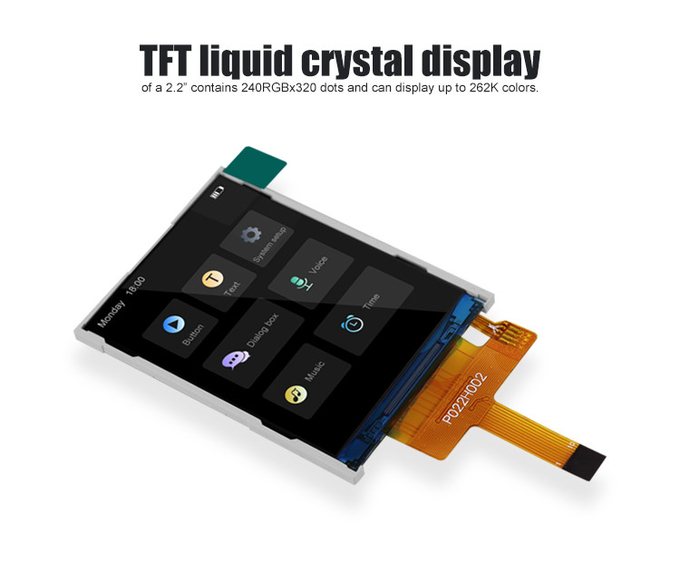

This Medical LCD Display is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.2 inch then our lcd is just what you need. Improve your product design by adding our 240 * 320 resolution product. QC department measured the luminance is 300 nits under normal operating.

P/N	P022H002
Size(inch)	2.2
Resolution	240*320
Active Area(mm)	33.48*44.64
Pixel pitch(um)	139.5*139.5
Outline Dimension(mm)	40.1054.762.30
Pixel arrangement	RGB Vertical Stripe
Display Mode	Normally White
Viewing Angle	12 0'CLOCK
Display colors	262K
Brightness (cd/m²)	300
Contrast Ratio	500:1
Interface	4 Line SPI
Back-light	LED Side-light type
Driver Ic	ST7789V
Operation Temperature(°C)	-20~70
Storage Temperature(°C)	-30~80
Response time(ms)	8
Pin Number	10

This type of 4 Line SPI can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ST7789V. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).

240X320 2.2 Inch Lcd Display ST7789V Small Tft Monitor 300 Brightness 0

Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.

Q: How you ship the goods?
A: Usually we will ship the sample by fast delivery. No matter how we will take the best shipping method you agree with. Shipping cost should pay by your side, please kindly know.

Q: How to control the quality of products?
A: Our company has a professional quality team, and all products are 100% inspected prior to ship.

Tag:

2.31 Inch 320x240 Tft Display,

240X320 2.2 Inch Lcd Display,

Small TFT Display 2.31 Inch

Price

Price US$ \ 5 ~ 20 / Piece

Packaging & Shipping

- Packing1 piece per box
- Delivery Lead Time4-6 Weeks
- Minimum Order 1 Piece
- Supply Ability500000 pieces per month
- Total quantity in StockOver 5000
- Shipping Career

Product Image

POLCD 240X320 2.2 Inch LCD DISPLAY ST7789V Small TFT Monitor 300 Brightness TFT DISPLAY

Product Video

POLCD 240X320 2.2 Inch LCD DISPLAY ST7789V Small TFT ...

LCD DISPLAY Related Products

Download Product Brochure

LCD Anzeiger.pdf (0.87 Mb)

Company Profile

About Shenzhen P&O Technology Co.,Ltd

Membership Free member
Registration Date2022.10.27
Country/RegionChina
CityShenzhen
Contact Jane Li(Ms.)

POLCD is a Chinese high-Tech enterprise, full name as Shenzhen P&O Technology Co.,Ltd, is a professional manufacturer engaged in high-quality LCD-Display modules.
The main Products we produce are TFT LCD-Modules, Touch LCD-Modules and we supply the customization services.
The Factory have over 2000 Spuare Meters of modern Production Dust-Free Workshop and Professional Research and Development Team of more than 300 Employees.
Our Products are widely used in PDA, Telecommunication Terminals, Industrial and Medical equipment, meters and Apparatus. So far we are exported to Europe, North America and Asia-Pacific Region, and have gained a good reputation from all customers. Our Commision is '' Quality first, Service first''.
If you are interesting in our products,please don't hesitate to contact us directly.
