JINGFANG® Plastic-steel PVC formwork, PVC plastic formwork, PVC formwork for concrete, PVC shuttering China Manufacturer, Factory, Supplier
Shandong Jingfang Import and Export Co. , Ltd is specialized in the development, manufacturing and sales of Plastic-steel PVC formwork. On the basis of environmental protection, our factory brings in domestic and foreign advanced technology, independently innovate Plastic-steel PVC formwork, have developed our unique technology.
We are 100% confident being the only Chinese factory who always persist using 100% new pure "Plastic-steel PVC" as raw material. We don't use the wood powder during production, thoroughly solve the brittle problem of traditional plastic formwork, is the real PVC Shuttering Sheet of reusing at least 50 times.

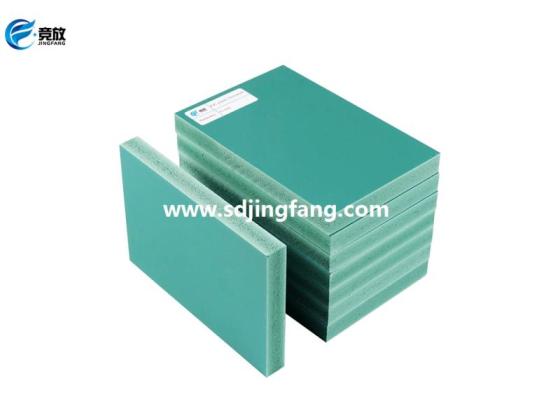

丨Definition: What is JINGFANG® PVC Shuttering Sheet ？
JINGFANG® PVC Shuttering Sheet is a new type of plastic formwork material, which uses plastic-steel PVC as the only main raw material.
It has same sizes and applications with plywood formwork, but much better performance.
In plain wooden structure, it can be reused for ≥ 50 times. In premium structure which provides good protection to formwork panels, it can be reused for much more times.
Definition of Plastic-steel PVC & Origin of our product name:
01. Plastic-steel PVC is the kind of PVC material mainly applied for windows, which have high requirements for strength and UV resistance, and should be pure, 100% new, rather than recycled or doped.
02. Since construction formwork has strict requirements for strength, so the new Plastic-steel PVC was proved to be the most qualified and the best raw material for PVC formworks from 10+ years ago.
03. Our product uses Plastic-steel PVC as the only main raw material, which accounts for more than 96% (the rest 3~4% is for necessary additives).
Sizes and thickness
JINGFANG® PVC Shuttering Sheet has the same sizes and applications as plywood formwork:
Width: up to 1300 mm
Length: no limits
Thickness: 6~22 mm
Density: 0.7g/cm³±0.5% (standard), 0.60~0.90/cm³±2% can be customized.
Color: Turquoise Green/Azure blue (original), others can be customized, including black, grey, red, etc.
The most popular sizes: 1220*2440*12mm/15mm/18mm.
Others can be customized.
Characteristics and advantages
1. Reuse 50+ times, saving much cost
JINGFANG® PVC Shuttering Sheet can be reused ≥50 times in plain wooden structures (left photo), and much more times in premium metal structures (right photo). This means the lifespan of 1 piece of JINGFANG® PVC Shuttering Sheet equals to ≥5 ~ 10 pieces of plywood formwork.
2. Same sizes & applications as plywood formwork
JINGFANG® PVC Shuttering Sheet comes with the same sizes and applications as conventional plywood formwork, including for wall, slab, column, stairs, tunnel, bridge, etc.
Its usage in preparing, handling, installation and assembly are same as using plywood formwork.
No changes to the formwork structure and construction process.
3. No Special Tools and Learning Curve
JINGFANG® PVC Shuttering Sheet has excellent screw holding strength, can be freely saw,cut, drill, nail, and shaped into any sizes as desired.
Workers may preparethe JINGFANG® PVC Shuttering Sheet as the same way that they use conventional plywood formwork.
No additional trainingor special tools required for workers to handle the product.
4. Never Delaminates
JINGFANG® PVC Shuttering Sheet adopts the foaming technology, not layerinng or laminating. It will never delaminate even after reusing 50+ times.
So it can be reused continually unless it is badly cracked by violent construction (such as throwing hardly frequently)
5. Smooth Concrete Surface
Our mirror surface technology ensures JINGFANG® PVC Shuttering Sheet smooth surface, and is able to maintain its smoothness even after reusing for 50+ times.
This helps ensuring all the wall surface in uniform smoothness across first to top floor.
6. High Load-Bearing Capacity
JINGFANG® PVC Shuttering Sheet has good surface hardness with excellent strength in during high impact. This is another important reason why it can be reused 50+ times in a plain wood support structure.
7. High Bending Strength and Elasticity
JINGFANG® PVC Shuttering Sheet has excellent bending strength. You can curve it freely in your round formwork structure.
Even in winter, our PVC panel maintains its elasticity in bending. Non-fragile.
8. Antiflaming
With special formula and technology, JINGFANG® PVC Shuttering Sheet is anti-flaming. This effectively reduces the fire risk and limits the spread of fire.
If using plywood formwork, workers need to implement more additional fire precautions and protection measurements at site.
9. Weatherproof Against Harsh Environment, UV resistant, Chemical Resistant
JINGFANG® PVC Shuttering Sheet is 100% waterproof, UV resistant, chemical/acid/alkali resistant.
So it is durable enough to be used, stored or placed at outdoor environment without the need of any protection, including under the weather of raining, snowy, in Summer, or in Winter.
10. High Temperature Resistant and Freezing-thawing Resistant
JINGFANG® PVC Shuttering Sheet has good resistance against temperature.
It shows no shrinkage, bulge, cracking or any sign of deformation under -20℃ to +70℃. Actually, it can hold 200+℃, which is the temperature of the manufacturing process.
Non-fragile in Winter. You can put it outside without special curing in snowy weather. We have customers in South Asia and Middle East countries, where it can work well under high temperature.
11. No Need Releasing Oil, Easily Releasing and Cleaning
With sustaining smooth surface and excellent hardness, JINGFANG® PVC Shuttering Sheet doesn't stick concrete stubbornly, which ensures it to be easily cleaned with water+mop.
No releasing agent or oil is required before and during concrete demoulding process. Easily cleaning.
Easily demoulded by hands, leaving the wall surface smooth and glossy without the need of secondary plastering.
12. Recyclable with Extra Returns
PVC is one of the most popular plastic materials in the world. It is easy to resell used JINGFANG® PVC Shuttering Sheet to related plastic industries, with higher returns than used plywood formwork. Such as PVC tubes, plastic furniture, cabinet, box, etc.
For full sizes, you can reuse them continually or rent out to other projects;
For small parts, you can can re-sell them to related industries.
13. Environment friendly
JINGFANG® PVC Shuttering Sheet is made of PVC material only, never add any wood powder. It adopts foaming technology, not layer or laminated, no any glue is used in manufacturing.
So it is environment friendly, doesn't discharge any infectant or toxic gas. It is in accordance with environmental trend of the earth.
