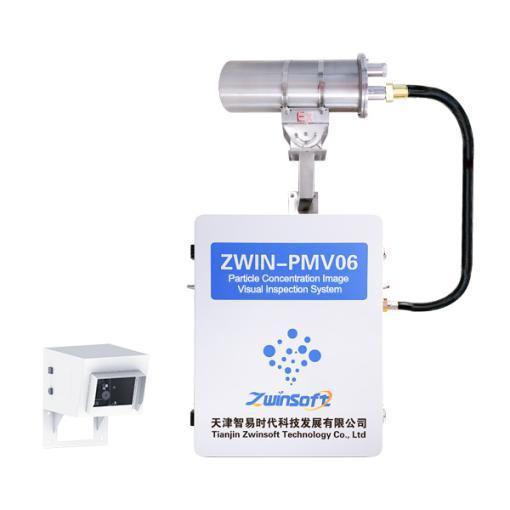

ZWIN-PMV06 is an intelligent "image vision" sensor detection system specially developed by our company for the monitoring of atmospheric particulate matter concentration. The system adopts high-sensit
ive imported components, integrates leading opto - mechanical integration technologies in many industries, adopts infrared laser illuminators with precise tracking function, and cooperates with high-performance cameras of various specifications and long focal lengths to achieve a full range of Environmental particle concentration detection.
The system adopts unique laser driving technology, the net laser output power is high, and the service life is long. The system reaches the nominal monitoring distance of 5-150 meters. Using the forward light scattering method, the laser source and the camera are deployed at both ends of the detection range. Through the wireless remote control of the laser opening and closing through the program, the laser illumination can automatically fill the screen without manual intervention.
It is the second in-depth development of the camera module, the night vision effect is much better, and the focusing speed is ideal and accurate. The system integrates a large-torque precision pan-tilt, which enables users to monitor 180° horizontally and 110° vertically without blind spots, perform precise calibration and focus adjustment, and achieve blind spot-free presets within the deployment range, with an angular resolution of less than 0.01 degrees. Both the camera and the laser lens can be preset, with up to 20 preset points, automatic cruise scanning, and timed execution of user-predetermined scenes. Preset point positioning is accurate, the memory function is reliable, Data will not be lost in the event of a power outage
.
The structure of the whole machine is firm and fully sealed, and the surface is anti-oxidative and anti-salt spray. Hurricane-resistant, can work normally in high wind
speed. Remote defrosting, anti-fogging function, good waterproof and high and low temperature resistance, can work regardless of various harsh environments, and can be used reliably in security, highway, border defense, maritime and other projects. The structure is beautiful and elegant, and it can also be used for vehicle and ship. It provides an effective monitoring method for air quality analysis in remote three-dimensional space.
The collected data information is transmitted to the intelligent data management platform for processing, giving customers various monitoring information.
2. Monitoring objects
The online monitoring system integrates the online monitoring equipment of particulate matter, meteorological parameter sensor, data acquisition board and information platform and other technologies as an integrated open pollution source online monitoring terminal.
3. Applicable places
Online real-time automatic monitoring of unorganized smoke and dust pollution sources such as construction dust, sand and gravel yards, coal yard, straw burning and other environmental air quality in residential areas, commercial areas, road traffic, construction areas, etc.
4.Working environment
The overall structure of the equipment is reasonable, easy to handle, and has no obvious solder joints and burrs; the internal layout is convenient for later maintenance; it is made of carbon steel sprayed with plastic material, and the thickness of the chassis is suitable for outdoor use for more than five years; it is waterproof, dustproof, lightning
proof, grounding Features.
Ambient temperature: -20℃~70℃;
Ambient humidity: <85%RH;
Atmospheric pressure: 86~106kPa;
Power supply: 220V mains power supply or solar power supply is optional.
5. Data platform system:
The monitoring terminal and the data platform can constitute a monitoring system. The terminal integrates atmospheric particle concentration monitoring, temperature, humidity and wind speed and direction monitoring, and video capture of pollutants exceeding the standard; the data platform is a networked platform with an Internet architecture, and the data obtained by the terminal can be timely transmitted to the data platform through wired or wireless networks for easy management and control.
6. System advantages:
It is equipped with a 7-inch LCD screen, which can view real-time data and system operation configuration, and can realize system program replacement and upgrade; it is equipped with an industrial main control board, and a hot-swappable SD card is used to store system programs, which is convenient for operation; it can realize solar power supply.
7. Performance parameters:
Data collection frequency: data collection and identification are automatically collected at a frequency of 1 minute, and uploaded to the data processing system and monitoring platform, and the uploaded platform data is consistent with the on-site measurement data;
Other monitoring interfaces can be expanded on the box;
Equipped with a 7-inch LCD screen, which can monitor the index parameters, equipment system settings and other functions, and can control the linkage threshold setting of the fog gun and fog machine;
Mobile SD card, update and replace the upgrade program at any time, and store data locally;
The data acquisition control unit has data acquisition and transmission equipment, which is used for monitoring instrument control, data recording and transmission functions;
Adopt industrial-grade 4G wireless communication module, support wireless 4G transmission, and can also use wired network transmission to ensure real-time transmission of data, images and videos;
It has the automatic linkage function of fog cannon and fog online, supports extended linkage control, and reserves the position in advance;
Support breakpoint resume function: when the network is interrupted, the monitoring data can be cached locally, and the data will be re-transmitted to the platform immediately after the network is restored, ensuring that the data online rate reaches 99%;
Data storage: The collected monitoring data should be automatically generated and stored as general data files. All data in the system (including minute data, hourly average and daily average, etc.) are stored for at least three years, and the local data storage of the equipment is no less than
one year.
8.
Technical data：
Basics
● Measurement factors :PM10, PM2.5, TSP
● Principle:Determination of ambient particulate matter concentration in the path by laser imaging changes
● Measuring range: 0～10000μg/m3 range adjustable
● Display resolution :1μg/m3
● Measurement method: Automatic cruise scanning can be performed on up to 20 preset measurement points on the laser path.
● Calibration: Automatic,the equipment has the function of online automatic zero point calibration.
● Signal transmission:Wireless transmission
Power And Installation
● Power: 220V
● LCD display: 7-inch color screen, supports functions such as setting parameters, central station address, equipment system settings, etc., can display monitoring index parameters, and can control the linkage threshold setting of fog guns and fog machines.
● Storage Battery: (optional)
● Solar panel: (optional)
● Protection grade: The whole structure is firm and fully sealed, and the surface is anti-oxidative and anti-salt spray. Hurricane-resistant, can work normally in high wind speed. Remote defrosting, anti-fogging function, good waterproof and high and low temperature resistance, can work around the clock regardless of various harsh environments.
● Mounting bracket: Pole and wall mounting are optional
● Monitoring distance: 5 to 100 meters. The system adopts unique laser driving technology, the net laser output power is high, the service life span is long, and the nominal monitoring distance is achieved.
Light source:
● laser main lobe energy>90%
● half-film bandwidth>5nm
● out-of-band rejection ratio>60dB
Camera: 200w pixel HD webcam
Technical Specifications:
● Nano lamp automatic white balance, infrared focus automatic correction function
● Wide dynamic range, with strong light suppression function
Dynamic intelligent noise reduction technology, reducing image comparison noise
● Dynamic Cannny Spot Edge Dynamic Filtering Technology
Spot Distance Inversion Algorithm
● Timing function, you can preset the scene of the device to execute regularly
● Two-dimensional optical axis adjustment mechanism, convenient for users to correct optical axis deviation
● Helical micrometer precision adjustment, less than 0.01 degrees
Surge protection and lightning protection, effective lightning protection range: 2500VA
● Precise preset position of laser position information, adjustable horizontal 180° vertical 70°-40°
● Remote laser dynamic remote control technology
● When the camera receives laser illumination, it can automatically fill the screen without human intervention.
● The second in-depth development of the camera module, the night visual effect is better, and the focusing speed is ideal and accurate.
● With the camera unit, users can achieve an adjustable range of 180° horizontally and 110° vertically, with no blind spot monitoring.
