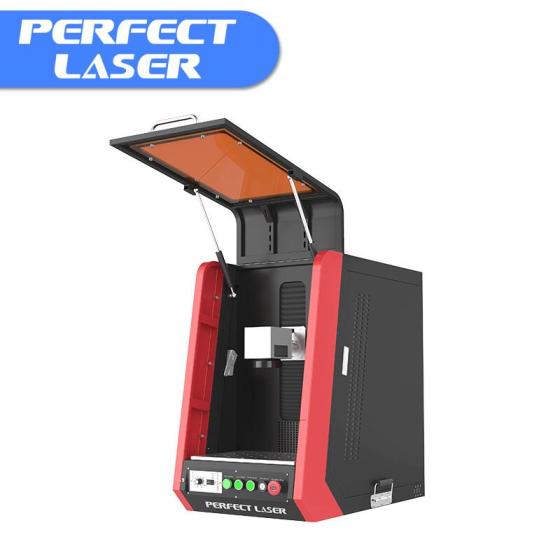

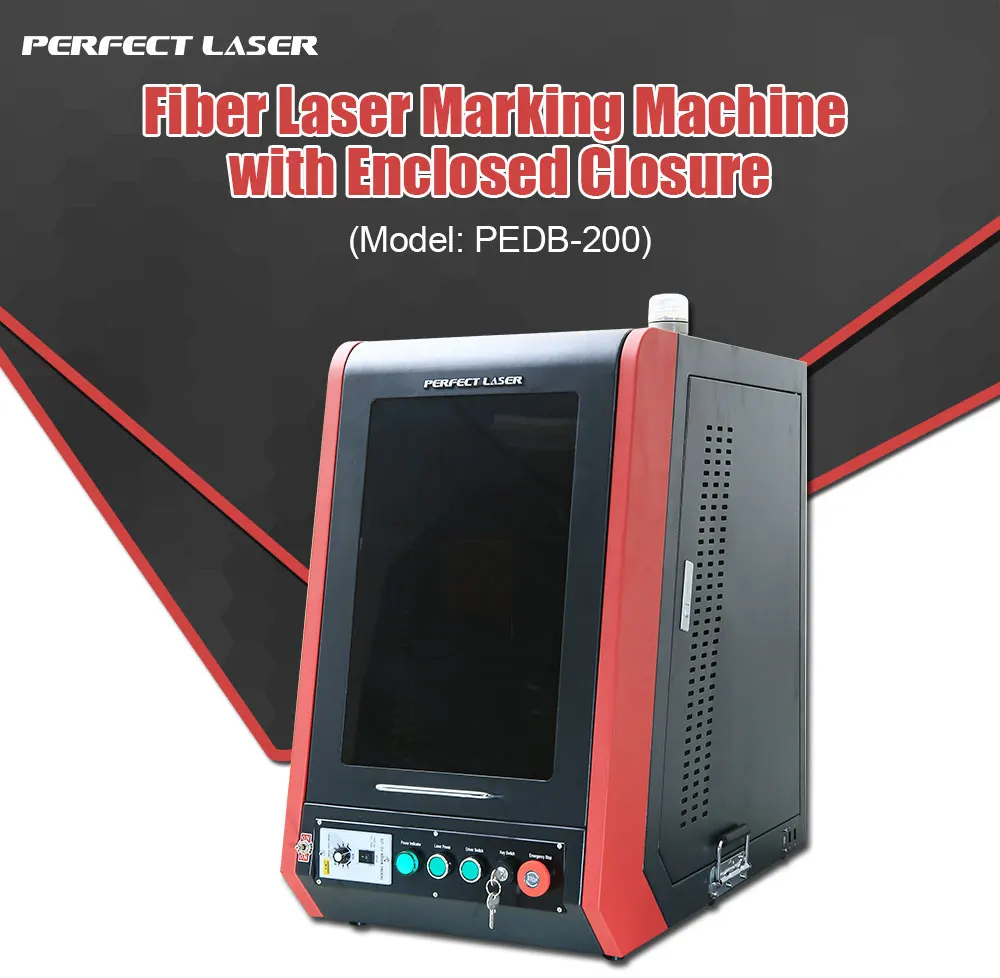

Perfect Laser High Quality Tabletop Computer Control Engraving Machine On Stainless Steel With Cabinet
Model: PEDB-200
Contact: Sally Email:sales30(@)perfectlaser.net Whatsapp/Wechat:(0086)18062623851
Electronic Components : Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter: Panel signs, precision equipment ,etc.,
Instrument: Panel signs nameplates, precision equipment ,etc.,
Hardware Tools : Knives, tools, measuring tool, cutting tool, etc.,
Automobile Parts : Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,
Mechanical Parts : Bearings, gears, standard parts, motors, etc.,
Daily Necessities : Handicrafts, zipper, key holder, sanitary ware, etc.,
Jewelry: Rings Jewelry, gold, silver,etc.
Food, drinking packing: Plastic packings,etc.
Product Feature of laser marking machine:

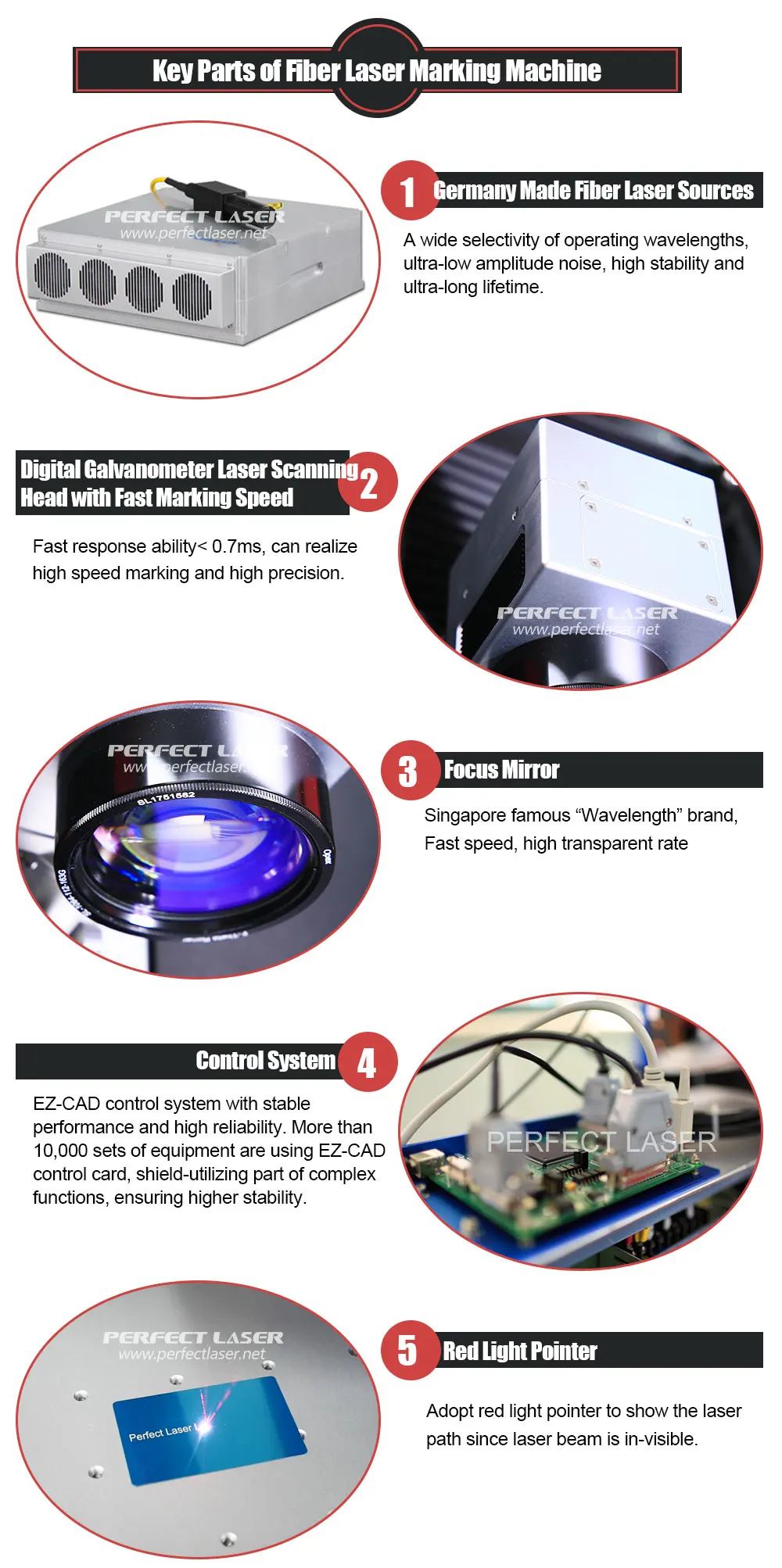

Perfect Laser’s laser marking machine suppliers adopts international most advanced technology and the laser source is fiber with USA IPG technology, lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance. we have 2 years warranty time for our laser source ,The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam. This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.

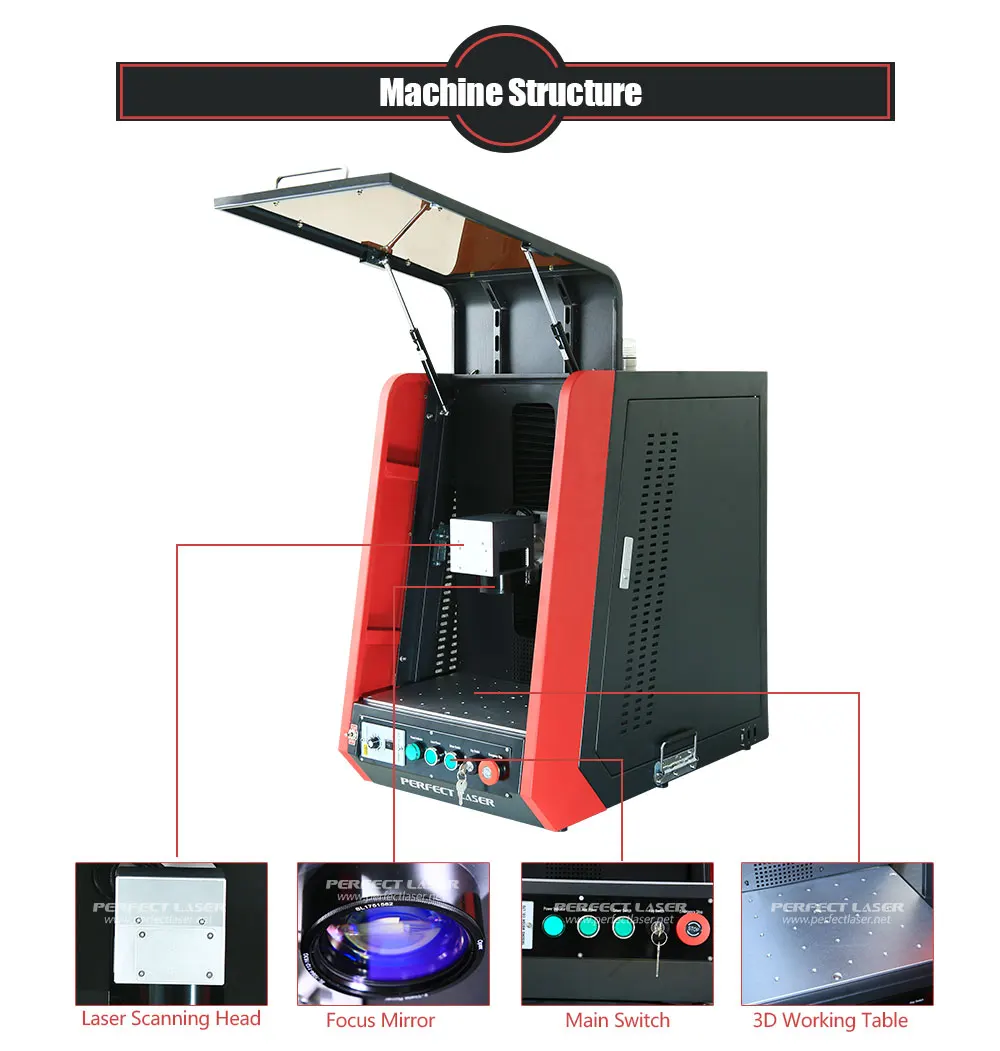

Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 55kg.
High Precision: Re-position precision is 0.002mm
High Speed: Imported scanning system makes the scanning speed is up to 8000mm/s

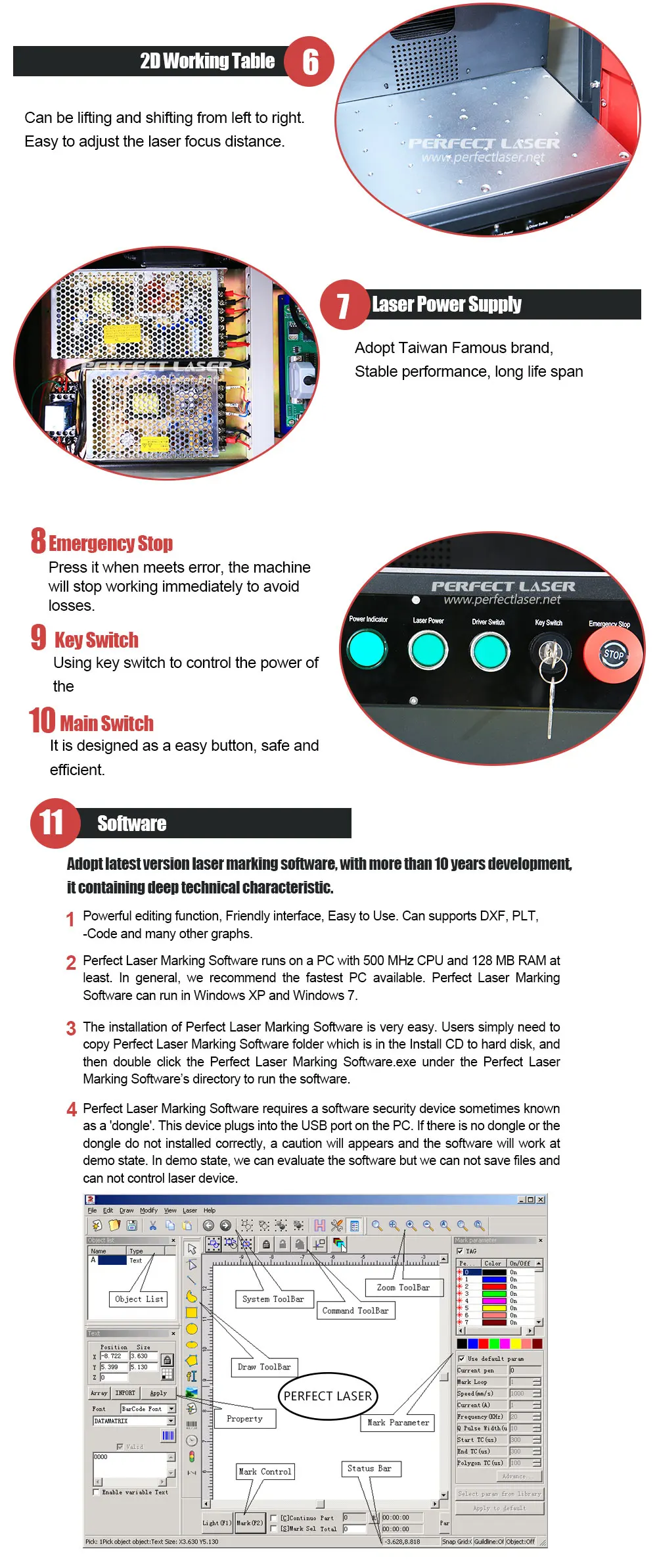

Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
High Reliability: MTBF>100,000 hours
Model No. | PEDB-400A | PEDB-400B | PEDB-400C | PEDB-400D |
Type | Portable | Desktop | Colorful | Floor Stand |
PC includes or not | Not includes PC | includes PC |
Laser Source |
IPG Series: | Pulsed, High Energy Ytterbium Fiber Lasers |
Mode of operation | Pulsed |
Polarization: | random |
Nominal average output power | 20W - 30W - 50W |
Central emission wavelength: | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% |
Emission Bandwidth (FWHM) | <10 nm |
Long-term average power instability | <5% |
Pulse width, (FWHM) | 100 ns |
Laser switching ON time | 180 μsec |
Laser switching OFF time | 180 μsec |
Pulse Repetition Rate* kHz | 20-80 kHz |
Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
Typical beam quality, M2 | <1.8 |
Output fiber delivery length | 3m |
Operating voltage: | 220V |
Max. Power consumption: | 600W |
Net Dimensions: | 70*20*50cm | 58*22*50cm 80*38*72cm | 70*20*50cm | 143*62*101cm |
Net Weight: | 44 kgs | 53 kgs | 44 kgs | 130 kgs |
Gross Weight: | 60 kgs | 70 kgs | 60 kgs | 150 kgs |
Laser system |
Scanning Speed: | 0-7000mm/s |
Marking Speed: | 0-5000mm/s |
Marking size: | 110mm×110mm (F-theta 160) |
Spot size: | ≤ 40 micron (F-theta 160) |
Cooling unit: | Air cooled |
Pilot laser: | 650nm diode laser, visible red light for marking guide |
Continuous working time: | ≥16h |
Humidity: | 45~85% (no condensation) |
Operating temperature: | 0~40°C |
Control units | CT-MARK (English Version) |
Our Services
* 36 Months Guarantee
* 5-7 Days Lead Time
* VCD Training , Easy Installation
* 18 Hours Response
* TT/Western Union / Paypal / Alibaba Trade Assurance Payment
* Sea Shipping/Air Shipping/Door to Door Express Shipping
Buyer Feedback

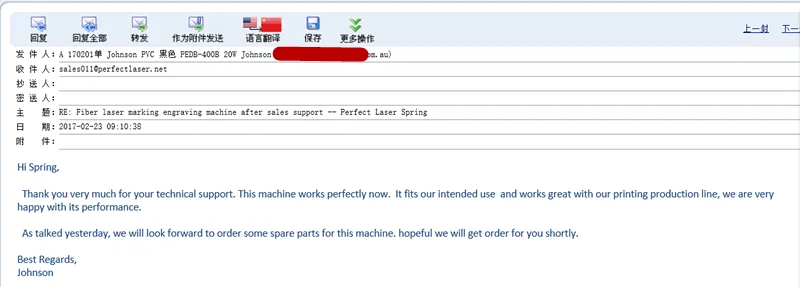

Good Comments from Australia(Good Quality and After sales Support):

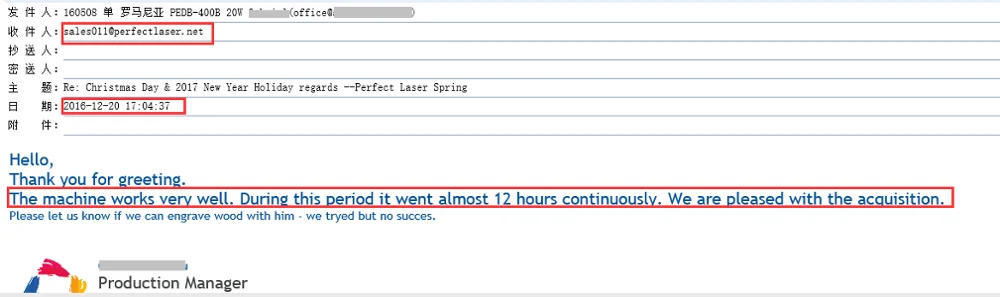

Good Comments from Romania(Good Quality With Continuous Working Solution):
