Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Geosynthetic Fabric

Description by Manufacturer

Geosynthetic fabrics of various specifications have no leakage and can be used in roads and other places for you.

Quick Detail:

Material: polyethelene, PE

Function: Protect, isolation
Width: 5.8m
Application: underground project

Wanshengli brand short fiber non woven filament geotextile is made from PP polypropylene, and PET polyester, which is a new special geotechnical engineering construction material. It is ok for different thickness, because short filament fabric is stiff, thick, plump and soft. Short non woven fiber filament geotextile is interweaved into net by high technology, advanced equipment and special steps with different kinds of fibers by needling punch and other procedures.

Because of the difference yarn, it has 2 types:

1. short non woven filament geotextile

2. non woven filament fiber geotextile

The short non-woven geotextile filament fiber has resistance of high temperature up to 230℃ to guanrantee maintain structure stability, high flat drainage, high elongation under certain stress, high creep resistance and vertical permeability, so can be applied in uneven and irregular bases. Many geotechnical engineering projects can use short non-woven geotextile filament fiber as materials.

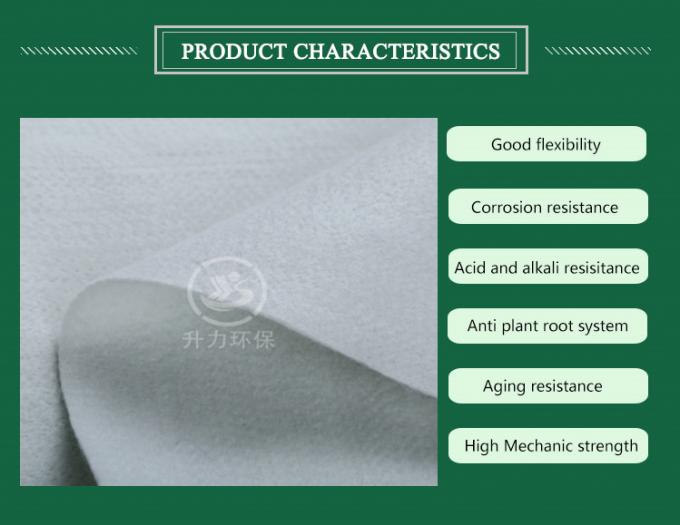

Geosynthetic Fabric Features

Filtration
Erosion & sediment control
Sub-grade stabilization
Protection for geomembrane liners
Shoreline protection
Drainage

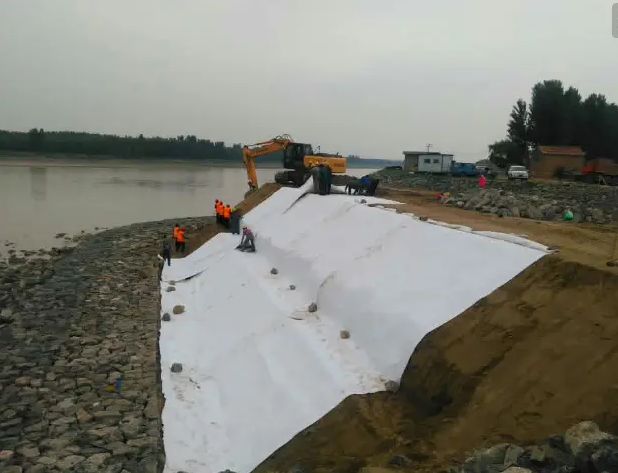

Polyethelene Nonwoven Geotextile Fabric 5.8m For Roads Isolation 0

Product Parameter

No.	Item Index Specification	100	150	200	250	300	350	400	450	500	600	800	Remarks
1	Unit area mass deviation,%	-8	-8	-8	-8	-7	-7	-7	-7	-6	-6	-6
2	thickness, mm ≥	0.9	1.3	1.7	2.1	2.4	2.7	3	3.3	3.6	4.1	5
3	Width deviation, %	-0.5
4	Breaking strength, KN/M ≥	0.08	0.12	0.16	0.2	0.24	0.28	0.33	0.38	0.42	0.46	0.6	Vertical and horizontal
5	Elongation at break, %	25-100
6	CBR bursting strength,KN ≥	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.2	4
7	Equivalent aperture,O₉₉(O₃₅),mm	0.07-0.2
8	Vertical permeability coefficient,cm/s	KX(10 -1 -10 -3 )											K=1.0-9.9
9	Tear strength ³,KN ≥	0.08	0.12	0.16	0.2	0.24	0.28	0.33	0.38	0.42	0.4	0.6	Vertical and horizontal

Geosynthetic fabric is a new engineering construction material as standardized product it has widly used in our domestic civil engineerig field.

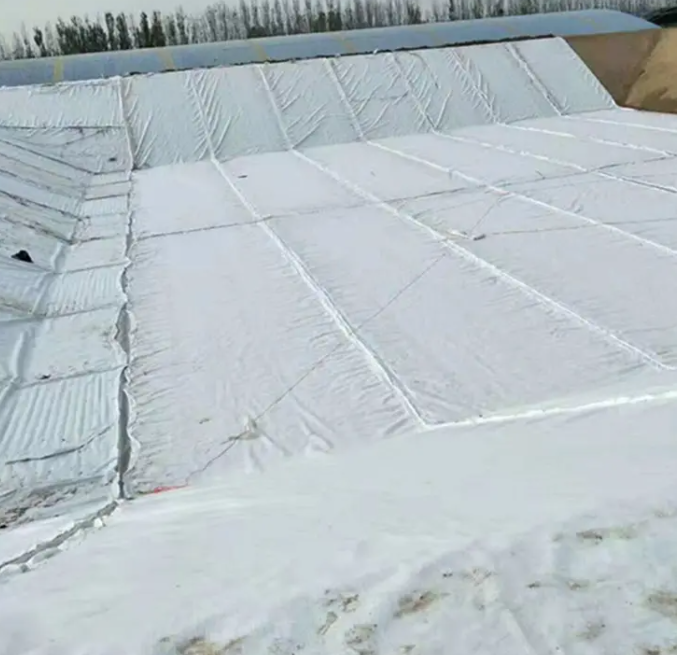

Applications

As the isolation layer and for inverted layer dam, slope protection, road, railway, airfield runway.
Reinforcement and drainage for soil slope,retaining wall.
Reinforcement and drainage for Asphalt pavement, cement concrete pavement and subgrade enhancement. Both rigid and flexible road pavement applicable.
Soft foundation treatment/ soft soil improvement of port project; the reinforcement and drainage for beach dike, seaport wharf and seawall/bulwark.

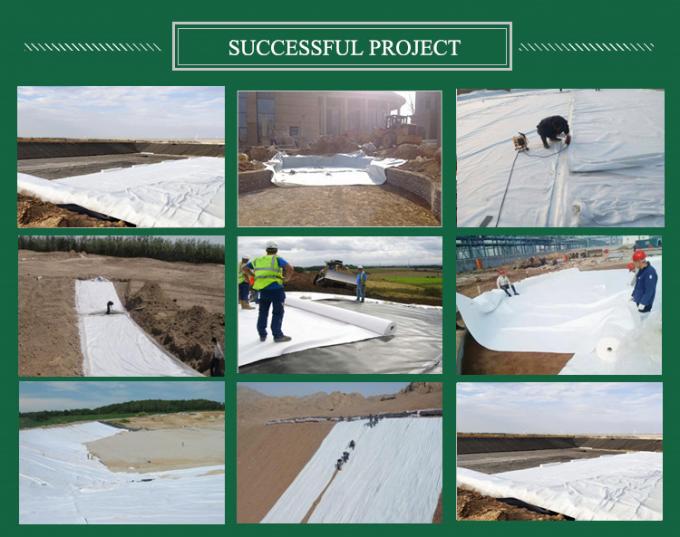

Polyethelene Nonwoven Geotextile Fabric 5.8m For Roads Isolation 1

Polyethelene Nonwoven Geotextile Fabric 5.8m For Roads Isolation 2

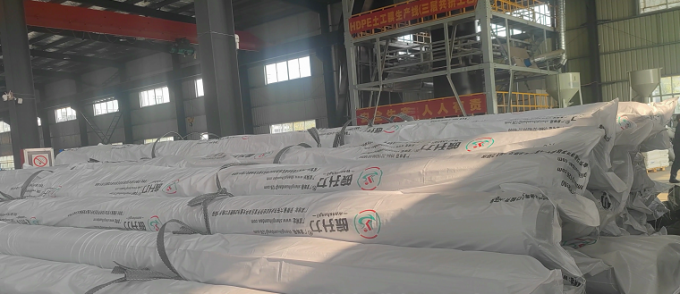

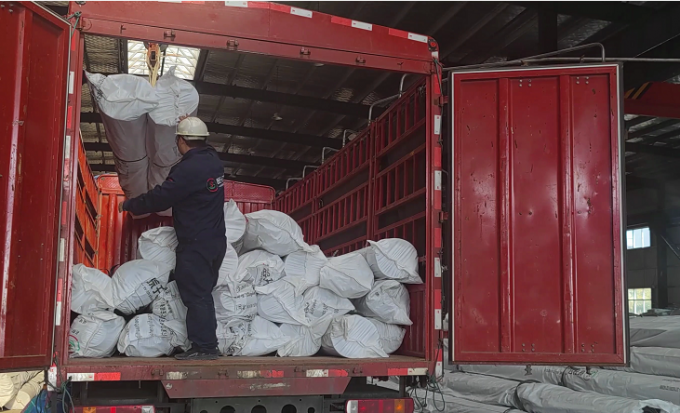

Geosynthetic Fabric Geotextile Package

packed as rolls with tight belt and woven bags. It can gurantee convenient unloading and protecting product.

Polyethelene Nonwoven Geotextile Fabric 5.8m For Roads Isolation 5

Polyethelene Nonwoven Geotextile Fabric 5.8m For Roads Isolation 6

Product Image

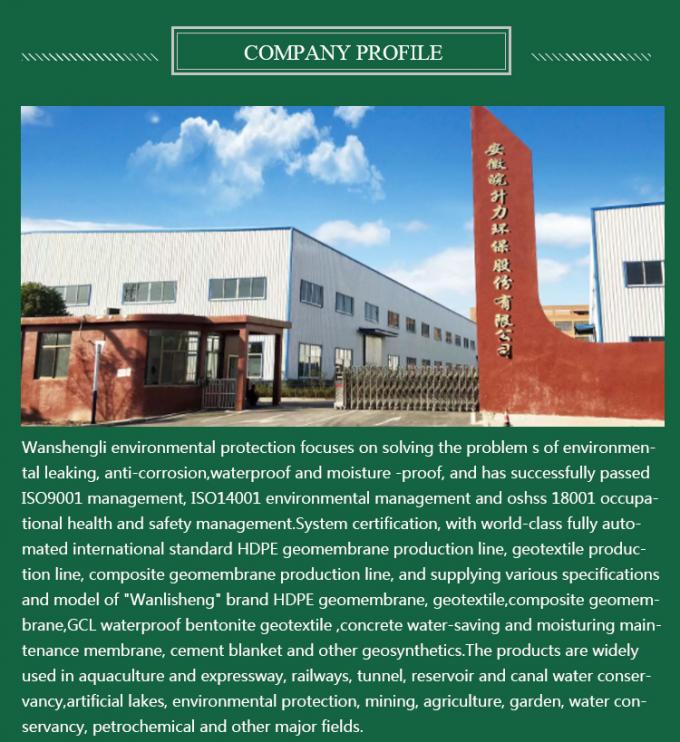

Company Profile
