PM-5 Series Ultrasonic Thickness Gauge Especially Suitable for Thin-Wall Materials, e.g. Car Body Sheet, Fire/Security Doors and Extinguisher,etc.
Features of PM-5DL Ultrasonic Thckness Gauge
High Precision, 0.001mm Resolution.
Real Time A-Scan with Adjustable Gain, Range, Blanking, etc.
Especially Fits for Ultra Thin Workpiece, Can Accurately and Reliably Measure Down to 0.2mm.
Through Coating Measurement, e.g. Painting on the Substrate, the Net Thickness of the Substrate Can Be Measured without Removing Paintings.
Unique Multiple-Wave Verify Mode, All the Thickness Values Have Been Checked Through 3 to 9 Times of Echos, Which Makes the Result More Reliable and Accurate.
Varieties of Measuring Interface:
A-Scan, B-Scan, Big Thickness Value Display, Difference/Thickness Thinning Rate and Min./Max.Capture
Detailed Images
PM-5DL in Practical Application
Measuring 0.2mm Aluminium Cans' Thickness

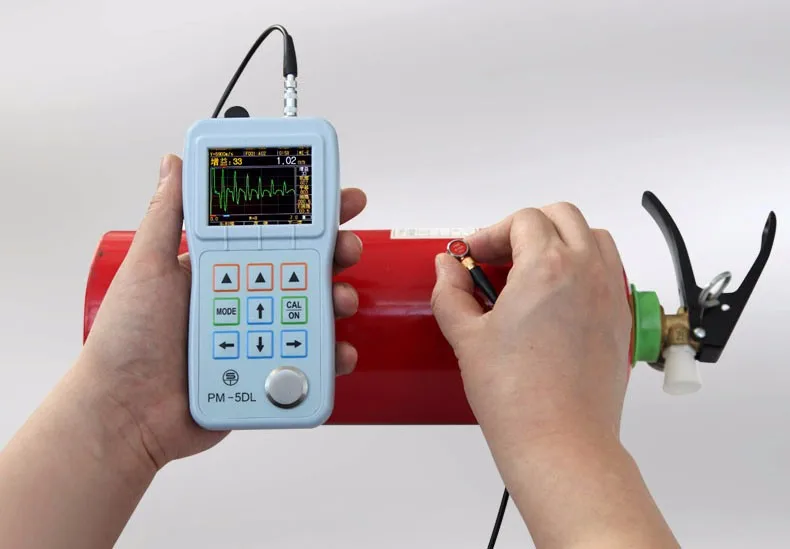

Through Coating Measuring 1mm Extinguisher's Net Thickness
Application

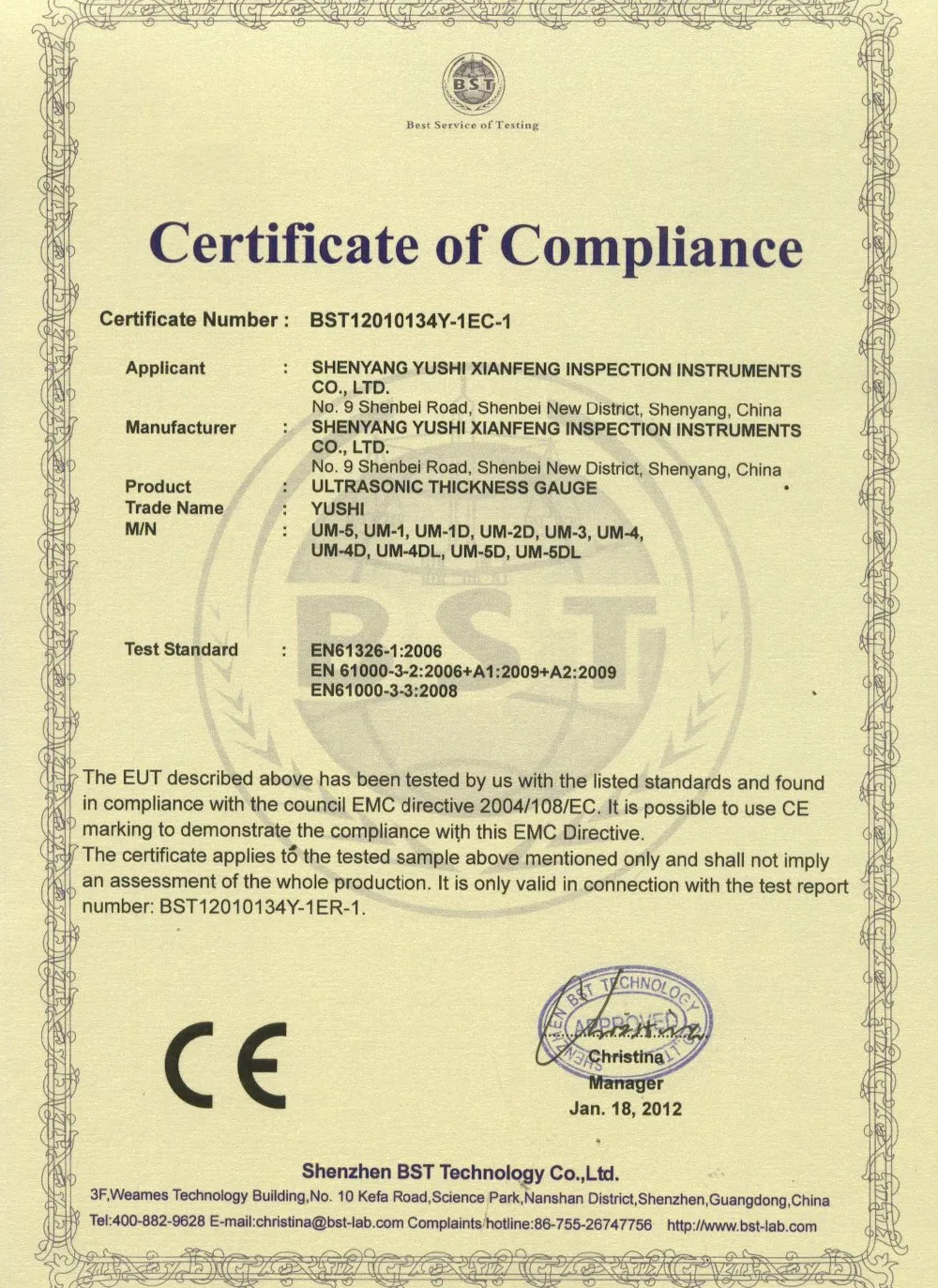

Ceritfication
Specifications of UM-4 Series Ultrasonic Thickness Gauges
| Display |
2.4QVGA(320×240)true color OLED screen, contrast 10000:1 |
Measuring Modes |
Interface-Echo Mode( I-E):for thick material |
| Echo-Echo Mode (E-E): for the thin material and measure through the coating |
| Multiple Echo Verify Mode (ME-E): All the thickness values have been checked through 3 to 9 times of echos, which makes the result more reliable and accurate |
| Auto Mode:The instrument select the measuring mode automatically according to the different material being tested |
Measuring Range( Steel) |
Interface-Echo Mode: 1.5mm-27mm |
| Echo-Echo Mode: 0.25mm-13.5mm |
| Multiple Echo Verify Mode: 0.25mm-9mm |
| Auto Mode: 0.25mm-27mm |
Display Mode |
A-SCAN: Displays the whole RF echo or half-waveform after rectified |
| B-SCAN: Real time B-Scan, displays the profile of the workpiece |
| Big Thickness Value: The conventional display of the thickness value |
| Difference/Thickness thinning rate: Display the difference between the real thickness value and the preset thickness value, and the percentage of the thinning value |
| Min./Max. Capture: Display the current thickness value, Min. value and Max. value at the same time |
| Gain |
Real time continuously adjustable, adjustable range 41dB |
| Measuring Resolution |
0.001 mm or 0.01mm (0.0001 in or 0.001 in) |
| Material Velocity Range |
500-9999m/s,0.0197-0.3937in/us |
| Alarm Setting |
Dynamically change the color of thickness value when the measuring value exceeds the upper limit or lower limit of preset |
| Units |
Inch or Millimeter |
| Language |
Chinese, English, French, Germany, Japanese |
| Power |
2 AA size batteries, Operating time is more than 35 hours |
| Instrument Shut-off |
Selectable ALWAYS ON or AUTO OFF after 5, 10 or 20 minutes of inactivity |
| Working Temperature |
-10℃ ~+50℃ |
| Size |
153mm × 76mm ×37mm(H ×W ×D) |
| Weight |
280g including batteries |
| Data Recorder |
| Capacity |
400 Files, 100,000 Thickness Values and 1000 Groups of Waveforms |
| File Structure |
Grid File |
| Line Number * Column Number |
21*12 |
| Communication Connector |
USB 2.0 Full Speed Connector |
| Communication Software |
Data View Software |
Packing & Delivery
| Ultrasonic Thickness Gauge |
1 |
| Probe |
1 |
| Probe Cable |
1 |
| Communication Cable |
1 |
| Instrument Case |
1 |
| Couplant |
1 |
| Alkaline Battery |
2 |
| Data Communication Software |
1 |
| User Manual, Packing List, Warranty Card |
1 |
