Power Busbar(Speedbar)
- Use:

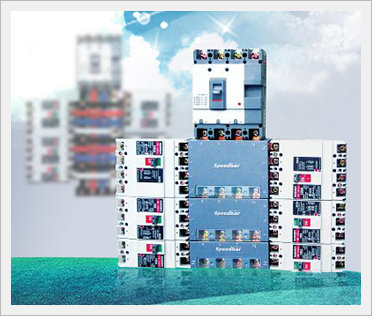

Our product called "Speedbar " is the block type of module(Cut-Busbar) for the power distribution panel, supplying the power ,which is put into the buildings & homes, to the branch circuit breakers according to each circuit breaker load AMPS.
- Features:
a. Safety : There is no risk of electric leakage, electric shock, short circuit & fire due to the use of fire-resistant & insulating material.
b. Flexibility & Expandability : It is possible to remove or increase the branch circuit breakers whenever you need because it is made to be individual block type.
- Benefits:
a. Best efficiency : It is possible to install or disassemble the speedbar everywhere without any special tools & machine. It is the most advanced D.I.Y solution of busbar system and should be the best item for overseas Marketing.
b. Cost reduction : Speedbar, which is made to be individual block type, makes it possible for you to replace the damaged speedbar even if electric trouble happens, facilitating easy maintenance and also prevents the loss from spreading. Considering all the advantages, we believe speedbar is the best cost-effective product of all other busbar systems at the market.
Why Speedbar?
What is the Speedbar?
Advantages of Speedbar
Comparison with copper busbar cabinet panel(1)
Comparison with copper busbar cabinet panel(2)
|
Item
|
Conventional type of cabinet panel
|
Cabinet panel with Speedbar
|
|
Working process
|
Special machine required
|
Only screwdriver required
|
|
Working time for making a cabinet panel
|
About8 hours
|
About 30 minutes
|
|
Structure change after installation of cabinet panel
|
Impossible
|
Possible
|
|
Adding branch breakers after installation of cabinet panel
|
Impossible
|
Possible
|
|
Recyclable
|
Impossible
|
100% possible
|
|
Work Error Rate
|
A little bit
|
Near to 0%
|
|
Management
|
Specialist required(Cost-up)
|
No need for specialist(Cost-donw)
|
|
Safety
|
Risky(Electric shock, Fire...)
|
Safe
|
|
Cost of production
|
1
|
About 0.7
|
Components of Speedbar
Safety of Speedbar : Reduce risk of Electric accidents
- In conventional type of busbar panel, The copper of busbar at the area of cross connection is left naked. And the structure of busbar inside cabinet panel is opened even if there is an acrylic board for protection.
- There is a high risk of electric accidents to operate and maintain cabinet panel, such as electric shock, electric leakage, short circuit, fire by static electricity and so on.
- But, Cabinet panel with Speedbar reduces the risk of electric accidents remarkably by block-type of case , which is safe enough to touch with hand. And It makes Speedbar last for a long time.
Effective Design of internal power distribution circuit
In conventional type of busbar system, The position of branch breakers in right & left side is not symmetric because it is impossible to make the phases(R,S,T,N) of right & left connection points symmetric. But, Speedbar can make the right & left side of cabinet panel symmetric and also more compact size.
The method of terminal connection for block-type of addition
- The method of terminal connection is the way of adding the second main breaker terminals to the first additional terminals to keep the height of cabinet panel with Speedbar same.
- The positions of additional terminals are as low as those of main breaker terminals. The gap between main breaker terminals and additional terminals is made like stair type of structure. And it makes the height of cabinet panel with Speedbar same.
- Block-type of addition with the same height means the economic solution for outbox, stable connection and electric performance.
The case made of fire-resistant material & Tin-coated Copper terminals
- The use of fire-resistant material ( ABS fire-resistant & Glass 10%) to reduce the risk of fire.
- The use of Tin-coated Copper terminals for prevention of oxidation.
The use of burring-type thread of screws for reducing electric resistance
In case of terminal connection with screws, The burring-typed thread of screws improves the electric conductivity and reduces electric resistance, exothermic reaction and a screw loose.
The use of burring-typed thread of screws for reducing electric resistance
In case of terminal connection with screws, The burring-typed thread of screws improves the electric conductivity and reduces electric resistance, exothermic reaction and a screw loose.
Simplicity & Flexibility
- Easy assembly like LEGO
- Rigid & removable block- assembly to provide easier screwing
- Flexible connection with standard modular block
- Designed to provide higher level of safety
- No direct use of Tin-coated Cu busbar
Compatibleness of Speedbar
- All kinds of breakers can be assembled with Speedbar
- There is an auxiliary kit to adjust the height of breakers
Expandability of Speedbar
It is possible to increase the branch breakers as much as you want
Characteristics
Technical Description
- Short-time withstand current : 7.5kA/1s
- Rated Operation Voltage : 380V
- Rated Insulation Voltage : 400V
- Rated Frequency : 50/60Hz
- Rated Impulse withstand Voltage : 4kV
- Rated Current : 4P 100A, 4P 225A, 4P 60A
- Power Frequency withstand voltage test & Short-time withstand current test : tested by Korea Electrotechnology Research Institute(KERI)
- Safe test : tested by Korea Electrical Safety Corporation(KESCO) safety center, in compliance with standards : IEC 60439-1
Features
- Simplified product range
4P for Main Breaker, 4P/3P/2P for Feed Breaker
- High performance
Non combustible insuited Cover & Box Copper busbar & Tin coating terminal
- Modular type
- ECO friendly material
- Prevent shortage accident
- Easy & Simple maintenance
- Slim enclosure
