Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Brick Making Machinery

Description by Manufacturer

Essential details

Applicable Industries:: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works

Condition:: Brand New

Type:: Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine

Brick Raw Material:: Concrete; Cement; Sand; Stone; Fly ash

Processing:: Brick making machine

Method:: Hydraulic Pressure

Automatic:: Yes

Production Capacity (Pieces/8 hours):: 17280-72000 pcs/8hours

Place of Origin:: Shandong, China

Brand Name:: WEIDA

Voltage:: 220v/380v/415v/440v

Dimension(L*W*H):: 4500x2300x2930mm

Warranty:: 2 Year

Key Selling Points:: Automatic

Brick size:: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, we can design for you request

Machinery Test Report:: Provided

Marketing Type:: New Product 2023

Warranty of core components:: 2 Year

Core Components:: PLC, Gear, Motor, Bearing, Gearbox

Raw material:: Sand; Fly Ash; Cement; Concrete; Stone

Block Type:: Hollow Paving Curbstone Interlocking Solid Brock

Machine Type:: Fully Automatic Brick Block Making Machine

Product Name:: Automatic Interlocking Brick Making Machine

Pallet size:: 1420x900x35mm

Dimension of Host Machine:: 4500x2300x2930mm

Molding cycle:: 15-25s

Mixer Model:: JS500

Vibration force:: 120KN

Power:: 66kw

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

After-sales Service Provided:: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Certification:: ISO9001/QA/CE/Intertek

Product Description

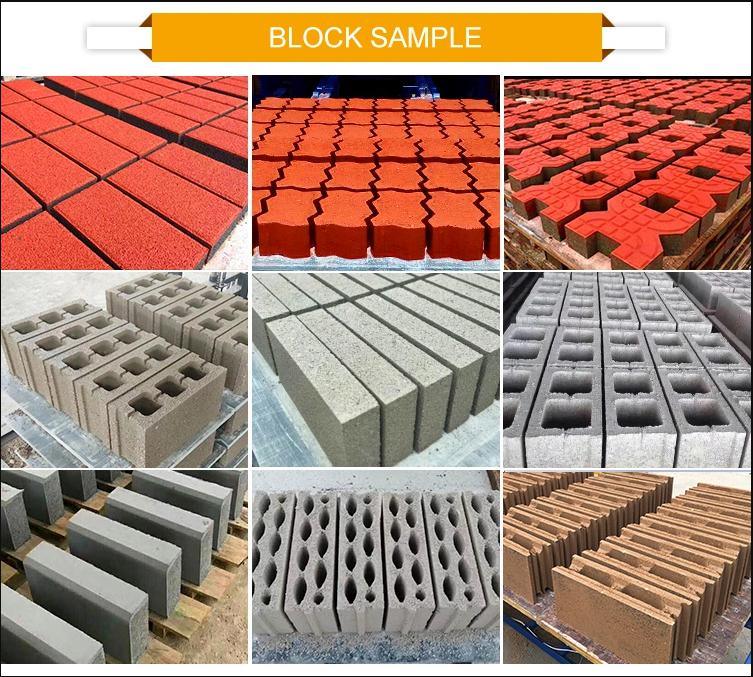

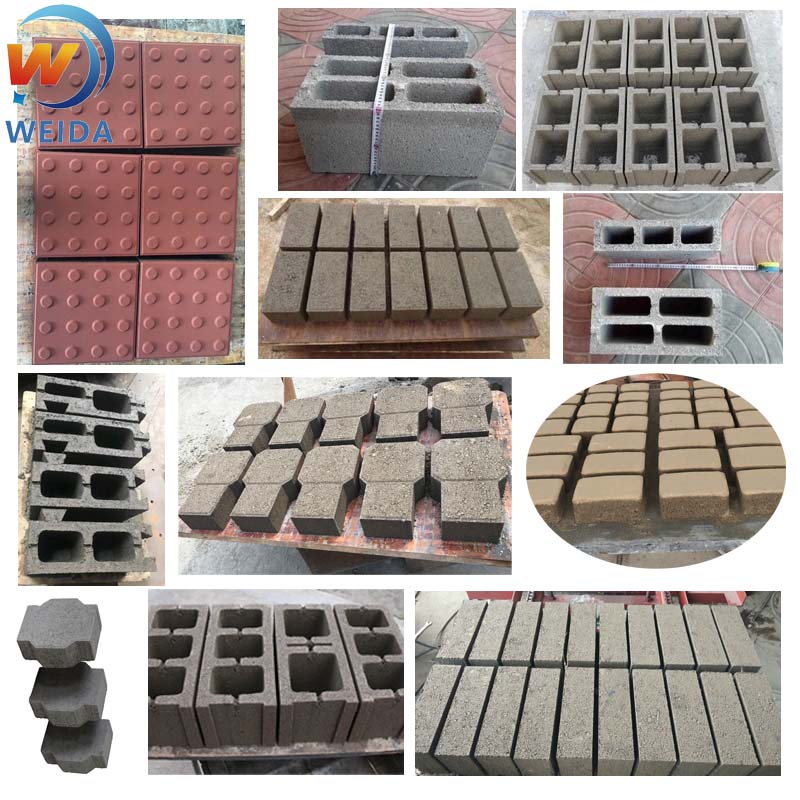

FINISH BLOCKS

You can choose the mould from the bellow chart and or we can design the your specific brick mould

Detailed Images

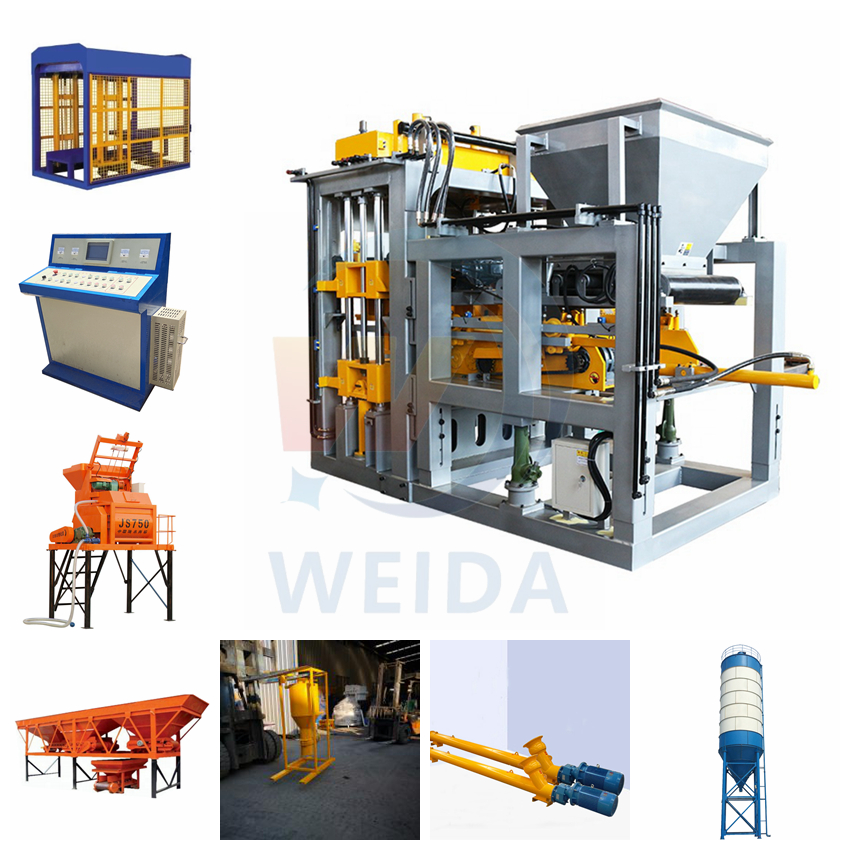

Main Parts

1. Cement silo	2. Screw conveyor	3. Cement scale	4. Batch machine	5. Concrete mixer
6. PLC operation	7. Stacker	8. QT4-15 machine

Certifications

Packing&Shipping

1. We use the plywood to pack the brick machine for the LCL2. This is no packing for the whole 1x20FT/1X40FT

Price

Price US$ 19000 / Set

Product Image

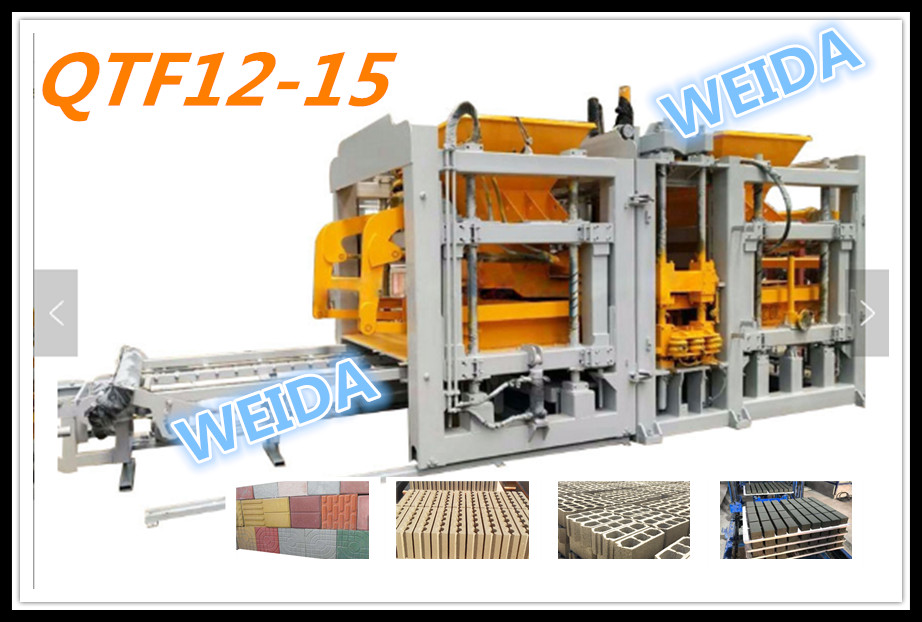

QTF12-15 Block Making Machine Interlocking Bricks Machine

QTF12-15 Block Making Machine Interlocking Bricks Machine 2

QTF12-15 Block Making Machine Interlocking Bricks Machine 3

QTF12-15 Block Making Machine Interlocking Bricks Machine 4

QTF12-15 Block Making Machine Interlocking Bricks Machine 5

QTF12-15 Block Making Machine Interlocking Bricks Machine 6
