产品描述
TS RCS01非侵入式道路传感器专为交通道路的地面监测而设计。它使用遥感技术避免对道路造成破坏，从而不会因安装道路气象站而造成交通干扰。多光谱测量技术使其能够准确检测路面冰雪水的厚度。非侵入式道路传感器通过提供路况信息，为道路管理部门提供准确的监测数据，在道路安全形势危险之前采取适当的措施。
˚F功能设定
l 远程测量道路上的水、冰和雪
l 测量积水、冰、滑
l 非埋地设计
l Strong corrosion resistance
l Infrared detection distance is up to 15.5 meters
l No need to close the driveway, easy installation and maintenance
l Rugged design, online measurement all day
Technical parameters
Monitoring distance | 2~15m |
Measuring diameter | 25.4 cm |
Angle | 30~90° |
Power supply | 220VAC,12VDC |
Maximum power consumption | 4W |
Working temperature | -40ºC ~+ 70ºC |
Working humidity | 0 to 100% |
Road status output | water:0.00~10mm |
ice:0.00~10mm |
snow:0.00~10mm |
slippery:0.00~1 |
Accuracy | 0.01mm |
Lens contamination detection | Pollution level measurement of optical lens, internal automatic pollution compensation |
Road surface | Concrete, asphalt pavement |
communication method | RS485 |
Mean time between failures (MTBF) | 1.5 x 1000000 hours |
Safety | No safety issues – infrared remote sensing measurement technology |

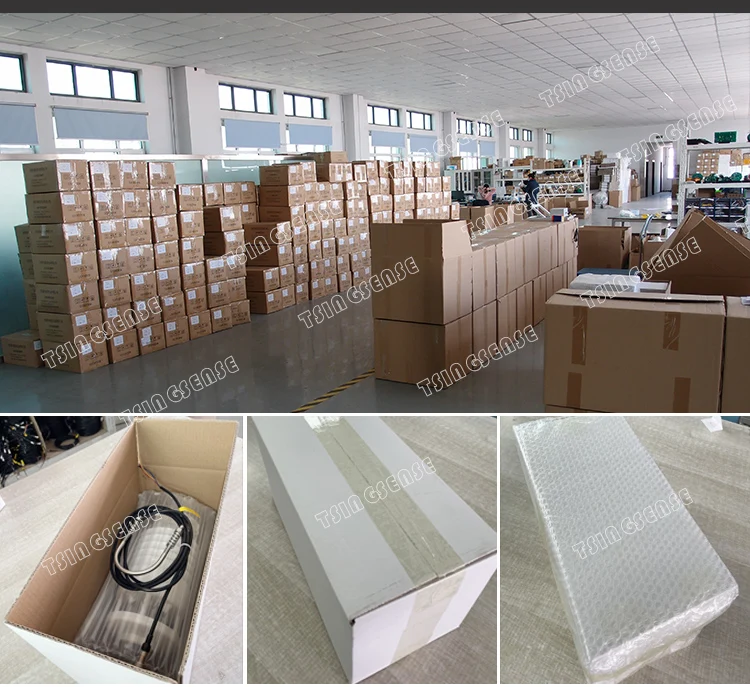

Packing list
sensor a set
certificate/warranty a copy
packing list a copy
FAQ for RCS01 sensor
Q:Can we choose the required sensor for the weather station?
A:Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A:Communication interface adopts RS485,(RS232 can be selected)
Application
FAQ
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don't offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
答：这是在 3 - 5 个工作日内从付款确认。如果数量超过 100 件/订单，则需要额外 3-5 个工作日。
问：交货方式是什么？
A: 货运方式取决于时间需求和客户要求。
问：你们的质量保证服务如何？
答：我们的服务是2年质量保证，负责免费维修。
问：我们可以参观一下贵公司吗？
A: 当然，我们欢迎各位朋友的光临。
