RF Coaxial Isolators & Circulators

Add to Basket Share to :

Price

US$ 1

Min Order Quantity1 Piece
Supply Ability1000set/per week
PortShen zhen
Delivery Lead Time30 days
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Sichuan TYT Technology Co., Ltd.
Membership Free member
Registration Date2018.08.28
Country/RegionChina
CityMianyang
Contact Jackson yan(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Jackson yan

Sichuan TYT Technology Co., Ltd.

* Buying Product

Category : Wireless Networking Equipment

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name RFTYT
- Model Number TG7448HN-1-100
- Place of Origin China
- VSWR (max) 1.25
- Frequency Range 1.5GHz-3.0GHz
- Isolation 40dB
- Connector Type SMA/N/TAB
- Dimension 50.8*50.8*14.8
- Related Keywords Coaxial Isolators, RF Coaxial Isolators, RF Coaxial Circulators, Coaxial Circulators

Description by Manufacturer

RF Coaxial Isolators & Circulators

Our Products Features:

1.Good temperature behavior, High aseismatic capability.
2.Low Insertion Loss, High power handling.
3.High quality, Low price, Fast delivery.
4.Custom design available upon request.
5.Meet ROHS standard.
6.Guaranteed for one year standard

10MHz-26.5GHz Power(Max) 2000W Coaxial Isolators

Model	Frequency range	Power (max)	Reverse Power	Size	Connector Type
TG6466E	30-230MHz	150W	10-150W	64.066.022.0 mm	SMA/N
TG6060E	30 - 230MHz	50W	10-50W	60.060.025.5 mm	SMA/N/TAB
TG6466E	130-200MHz	500W	10-250W	64.066.022.0 mm	SMA/N
TG5258E	160-330MHz	500W	10-250W	52.057.522.0 mm	SMA/N
TG4550E	300-1100MHz	400W	10-100W	45.050.025.0 mm	SMA/N
TG3538X	300-1850MHz	300W	10-250W	35.038.015.0 mm	SMA/N
TG3434E	700-3100MHz	300W	20-100W	34.034.022.0 mm	SMA/N
TG3232X	700-3100MHz	300W	20-100W	32.032.015.0 mm	SMA/N
TG3033X	700-3100MHz	300W	20-100W	30.033.015.0 mm	SMA/N
TG2528B	900-4000MHz	200W	10-100W	25.428.515.0 mm	SMA/N
TG6466E	950-2000MHz(full)	100W	10-100W	64.066.026.0 mm	SMA/N/TAB
TG2025X	1500-4000MHz	100W	20W	20.025.415.0 mm	SMA
TG3234A	2.0 - 4.0 GHz(full)	100W	20W	32.034.021.0 mm	SMA/N/TAB
TG2528C	3.0-6.0GHz(full)	60W	20W	25.428.014.0 mm	SMA/N/TAB
TG1626B	3.7 - 5.0GHz	60W	5W	16.026.015.0 mm	SMA
TG1523C	3.6 - 7.2 GHz	60W	5W	15.023.013.8 mm	SMA
TG2123B	4.0-8.0GHz(full)	60W	20W	21.023.015.0 mm	SMA
TG1319C	7.0- 15.0GHz	20W	5W	13.019.012.7 mm	SMA
TG1220C	9.0 - 15.0GHz	30W	5W	12.020.013.0 mm	SMA/ Through wall connector
TG1622B	6.0 - 18.0 GHz	30W	5W	16.022.014.0 mm	SMA

Model

Frequency range

Power

(max)

Reverse Power

Size

Connector Type

TG6466E

30-230MHz

150W

10-150W

64.0*66.0*22.0 mm

SMA/N

TG6060E

30 - 230MHz

50W

10-50W

60.0*60.0*25.5 mm

SMA/N/TAB

TG6466E

130-200MHz

500W

10-250W

64.0*66.0*22.0 mm

SMA/N

TG5258E

160-330MHz

500W

10-250W

52.0*57.5*22.0 mm

SMA/N

TG4550E

300-1100MHz

400W

10-100W

45.0*50.0*25.0 mm

SMA/N

TG3538X

300-1850MHz

300W

10-250W

35.0*38.0*15.0 mm

SMA/N

TG3434E

700-3100MHz

300W

20-100W

34.0*34.0*22.0 mm

SMA/N

TG3232X

700-3100MHz

300W

20-100W

32.0*32.0*15.0 mm

SMA/N

TG3033X

700-3100MHz

300W

20-100W

30.0*33.0*15.0 mm

SMA/N

TG2528B

900-4000MHz

200W

10-100W

25.4*28.5*15.0 mm

SMA/N

TG6466E

950-2000MHz(full)

100W

10-100W

64.0*66.0*26.0 mm

SMA/N/TAB

TG2025X

1500-4000MHz

100W

20W

20.0*25.4*15.0 mm

SMA

TG3234A

2.0 - 4.0 GHz(full)

100W

20W

32.0*34.0*21.0 mm

SMA/N/TAB

TG2528C

3.0-6.0GHz(full)

60W

20W

25.4*28.0*14.0 mm

SMA/N/TAB

TG1626B

3.7 - 5.0GHz

60W

16.0*26.0*15.0 mm

SMA

TG1523C

3.6 - 7.2 GHz

60W

15.0*23.0*13.8 mm

SMA

TG2123B

4.0-8.0GHz(full)

60W

20W

21.0*23.0*15.0 mm

SMA

TG1319C

7.0- 15.0GHz

20W

13.0*19.0*12.7 mm

SMA

TG1220C

9.0 - 15.0GHz

30W

12.0*20.0*13.0 mm

SMA/ Through wall connector

TG1622B

6.0 - 18.0 GHz

30W

16.0*22.0*14.0 mm

SMA

Please send your inquiry to my email ,
i will provide our specification and quotation as soon as possible.
Thank you very much. :)

For more detail specifications, please contact us or go to the official website.

(WWW.RFTYT.COM)

Forms are specify frequency range and other ranges available

(The temperature is generally -30 to 70, which can be customized -40 to 80 or your specified requirement.)

Tip:These informations are needed for your enquiry.
*1.The frequency range that you need. *2.Power capacity (Forward ,Reverse,Peak,etc.). *3.Joint form
4.Your special requirements (Insertion loss.Isolation.VSWR.Temperature.Dimension.etc.)

Price

Price US$ 1 / Piece

Packaging & Shipping

- PackingStandart Export Cartons for RF Coaxial Isolator
- Delivery Lead Time30 days
- Minimum Order 1 Piece
- Supply Ability1000set/per week
- Delivery PortShen zhen

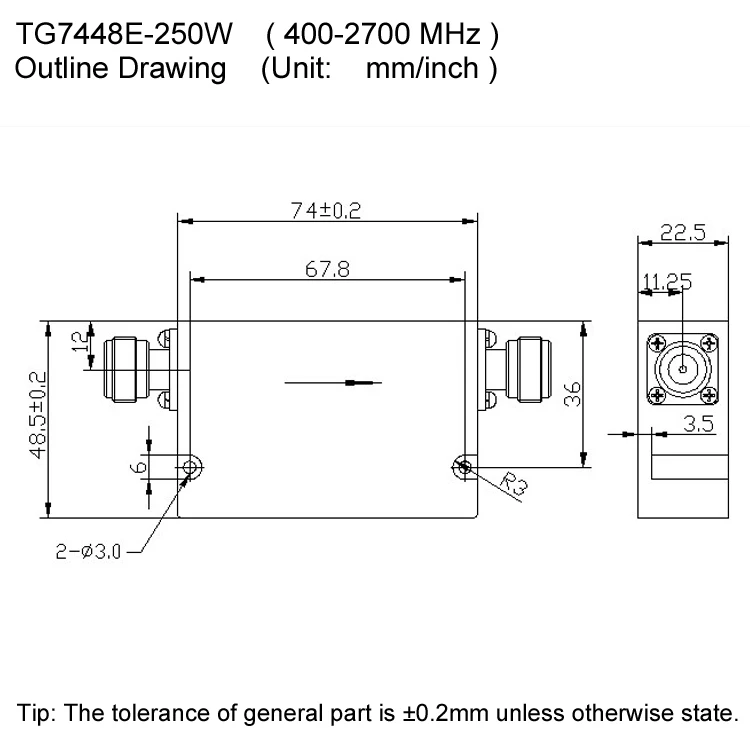

Product Image

Coaxial Isolators Related Products

Company Profile

About Sichuan TYT Technology Co., Ltd.

Membership Free member
Registration Date2018.08.28
Country/RegionChina
CityMianyang
Contact Jackson yan(Mr.)

RF TYT Technology Co., Ltd. is a modern high-tech enterprise specializing in microwave passive devices (radio frequency isolator, circulator, RF resistor, attenuator, coaxial load and attenuator) and microwave passive components.
