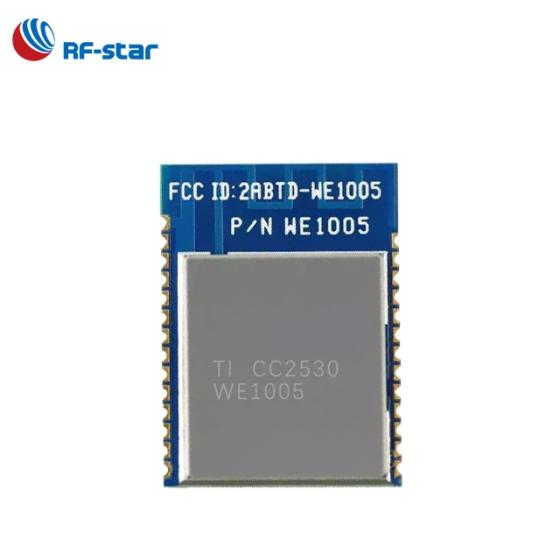

WE1005 2.4 GHz IEEE 802.15.4 and ZigBee Module
WE1005 is a low power IEEE 802.15.4, ZigBee and RF4CE module based on TI CC2530F256. This module can be widely applied to short distance wireless network communication field with the characteristics of low power consumption, small volume, strong anti-interference ability and so on. The module uses RF- specific high dielectric constant, low loss sheet, and four-layer board wiring. Capacitance inductance components are from high-precision and high Q Murata GRM series. The module also uses onboard power supply filter circuit and RF optimization matching circuit, which makes the module better stability and farther transmission distance. To meet the industrial application requirements, the module can be equipped with a shield on it, which increases the anti-jamming capability.
Table 1. Parameters of WE1005
|
Chipset |
CC2530F256 |
|
Supply Power Voltage |
2.0 V ~ 3.6 V, recommended to 3.3 V |
|
Frequency |
2394 MHz ~ 2507 MHz |
|
Transmit Power |
+3.0 dBm ±1.5 dBm |
|
Receiving Sensitivity |
-85 dBm |
|
GPIO |
19 |
|
Crystal |
32 MHz, 32.768 kHz |
|
RAM |
8 KB |
|
Flash |
256 KB |
|
Package |
SMT Packaging |
|
Frequency Error |
±20 kHz |
|
Dimension |
22.0 mm x 16.0 mm x (2.3 ± 0.1) mm |
|
Type of Antenna |
PCB antenna |
|
Operating Temperature |
-40 ℃~ +85 ℃ |
|
Storage Temperature |
-40 ℃~ +125 ℃ |
Table 2. Pin Functions of WE1005
|
Pin |
Name |
Chip Pin |
Pin Type |
Description |
|
1 |
GND |
GND |
Ground |
Ground |
|
2 |
RES |
RESET_N |
Reset |
Reset, active low |
|
3 |
P22 |
P2_2 |
I/O |
GPIO, debug DC |
|
4 |
P21 |
P2_1 |
I/O |
GPIO, debug DD |
|
5 |
VCC |
VCC |
VCC |
Power Supply: 2.0 V ~ 3.6 V |
|
6 |
P20 |
P2_0 |
I/O |
GPIO |
|
7 |
P17 |
P1_7 |
I/O |
GPIO |
|
8 |
P16 |
P1_6 |
I/O |
GPIO |
|
9 |
P15 |
P1_5 |
I/O |
GPIO |
|
10 |
P14 |
P1_4 |
I/O |
GPIO |
|
11 |
P13 |
P1_3 |
I/O |
GPIO |
|
12 |
P12 |
P1_2 |
I/O |
GPIO |
|
13 |
P11 |
P1_1 |
I/O |
GPIO |
|
14 |
GND |
GND |
Ground |
Ground |
|
15 |
GND |
GND |
Ground |
Ground |
|
16 |
GND |
GND |
Ground |
Ground |
|
17 |
P10 |
P1_0 |
I/O |
GPIO |
|
18 |
P00 |
P0_0 |
I/O |
GPIO |
|
19 |
P01 |
P0_1 |
I/O |
GPIO |
|
20 |
P02 |
P0_2 |
I/O |
GPIO |
|
21 |
P03 |
P0_3 |
I/O |
GPIO |
|
22 |
P04 |
P0_4 |
I/O |
GPIO |
|
23 |
P05 |
P0_5 |
I/O |
GPIO |
|
24 |
P06 |
P0_6 |
I/O |
GPIO |
|
25 |
P07 |
P0_7 |
I/O |
GPIO |
|
26 |
VCC |
VCC |
VCC |
Power Supply: 2.0 V ~ 3.6 V |
|
27 |
VCC |
VCC |
VCC |
Power Supply: 2.0 V ~ 3.6 V |
