RFID Reader/Writer Module (For SAM Card and RF Card)

Add to Basket Share to :

Price

US$ 34.92

Min Order Quantity1 Piece
Supply Ability10000pcs/month
PortBeijing
Delivery Lead Time5 days
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Jinmuyu Electornics Co., Ltd.
Membership Free member
Registration Date2007.07.26
Country/RegionChina
CityBeijing
Contact Harry(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name Jinmuyu
- Model Number JMY680H
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords RFID, RF, IC, ID Module, Reader, Access, Entry Control, Time Attendance, Recorder, Electromagnetic

Description by Manufacturer

This is Mr. Harry Yang from Jinmuyu Electronics Co., Ltd. if you want to know of the details about the following 13.56MHz rfid reader or rfid module, please contact me.

JMY680H Specification

PCD model: NXP CL RC632

Protocol: ISO14443A, ISO14443B, ISO15693 and ISO7816

Antenna: Integrated

CPU: P89LPC936

LED light: 2 lights, red and green

Buzzer: Beeper

Working frequency: 13.56MHz

Card supported: Mifare 1K/4K, FM11RF08, Ultra Light, DesFire, Mifare ProX, SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, T=CL smart cards(both ISO14443A & ISO14443B) , TI TagIt, I.Code SLI, ST LRI and other tags according to ISO15693 and ISO7816 SAM cards (both T=0&T=1)

Anti collision ability: Full functions anti collision; be able to process multi-cards; be able to set operate single card only

Auto detecting card: Supported, default OFF

SAM slot: 1 slot

SAM baud rate: 9600bps/38400bps

ISO7816 PPSS set: supported

EEPROM: 512 Bytes

Power supply: DC 5V (±0.5V)

Interface: IIC/UART/RS232C (select when place order)

Communication rate: IIC-400Kbps; UART-19.2Kbps/115.2Kbps

Max command length: 254 Bytes

Interface level: UART/IIC: 3.3V (TTL level; 5V tolerance)

Power consumption: 80mA

Reading range: 80mm (depending on card)

Dimension: 70mm*50mm*16.5mm

Weight: About 120g

ISP: Yes

Operating temperature: -25 to +85 °C

Storage temperature: -40 to +125 °C

RoHS: Compliant

Pin configurations and pin outs

Pin number	Function	Type	Description
1	ICC	Output	Card in/out indication 0: Card IN; 1: Card OUT
2	TXD/SDA	Input/output	RS232C TXD / UART TXD / IIC SDA
3	RXD/SCL	Input	RS232C RXD / UART RXD / IIC SCL
4	VCC	Power	VCC
5	GND	Power	GND

Model NO:

JMY680HI IIC interface

JMY680HT UART interface, TTL level

JMY680HS RS232C (UART interface, RS232 level)

Price

Price US$ 34.92 / Piece

Packaging & Shipping

- PackingBOX
- Delivery Lead Time5 days
- Minimum Order 1 Piece
- Supply Ability10000pcs/month
- Delivery PortBeijing
- Shipping Career

Product Image

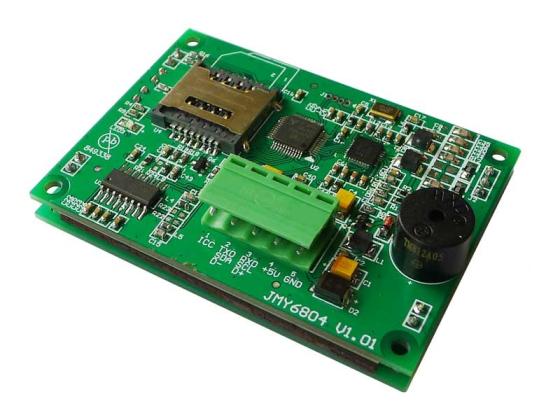

RFID Reader/Writer Module (For SAM Card and RF Card)

RFID Reader/Writer Module (For SAM Card and RF Card) 2

RFID Related Products

Company Profile

About Jinmuyu Electornics Co., Ltd.

Membership Free member
Registration Date2007.07.26
Country/RegionChina
CityBeijing
Contact Harry(Mr.)

Jinmuyu is one of the leading 13.56MHz RFID reader manufacturers. We build, design and customize products to satisfy a range of customers. Our production facilities are certified under ISO/IEC10373-6, EMV2000, EMV2010 and PBOC 2.0 which are recognized all over the world. Our products support ISO/IEC14443A, 14443B, 15693 and ISO7816(T=0, 1) protocols and also support Mifare 1K, Mifare 4K, FM11RF08, Ultralight, Ultralight C, Mifare Mini, DesFire, Mifare Plus; CPU cards(Type A/B, dual-Interface, T=CL); SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, AT88RF020; NXP I.CODE SLI, TI Tag_it HF-I, ST LRI and so on.

The products contain JMY620 series which are the surface mounted design, can send and receive more than 256 bytes APDU commands and also support FSDI=8; lower power consumption like JMY504; JMY601 (Integration antenna design); JMY501 (connection outside antenna via four lines); JMY505 (connection outside antenna via 50ohm coaxial cable); JMY680 (applies to some metallic-around systems); MR800 (with LCD display); MR600 (inlay LED Nixie tube which displays 8 numbers); the ID reader MR761 series which can support positive sequence, reverse output in hexadecimal or decimal UID, and can read the data in the card via configuration. Many of the above products contain one or more than one SAM card slots. At the same time, the interfaces for the reader we can offer IIC, UART, RS232C, RS485, USB (HID or PC/SC standard), Ethernet RJ45 (TCP/IP), Bluetooth and so on; and the PCD contain NXP RC500, RC531, RC632, RC400, RC522, PN512, RC523, FM1702, FM1712, FM1722; Meanwhile in order to meet the different needs of different users, we use MCU 8051, ARM7, ARM9 and ARM11 to develop the module or reader.

It is worth mentioning that we also provide ODM / OEM customized products and services. Welcome to contact us, and we will provide you with the high quality products and the excellent services.
